Specification

Details

Model

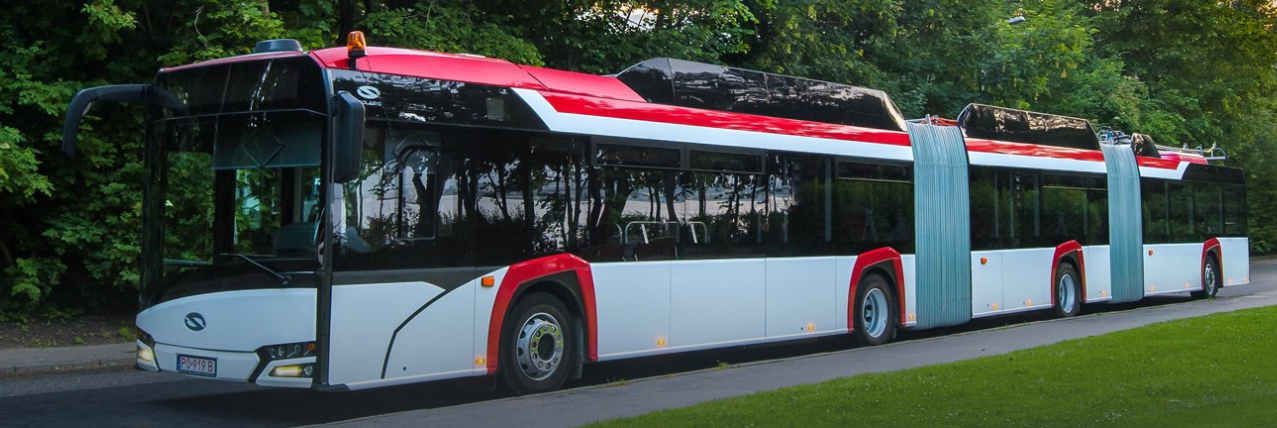

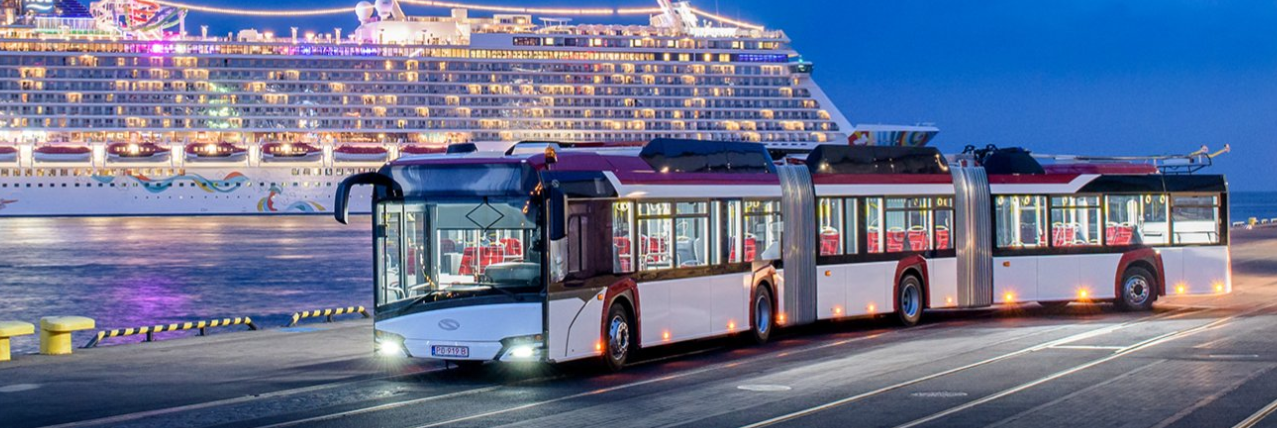

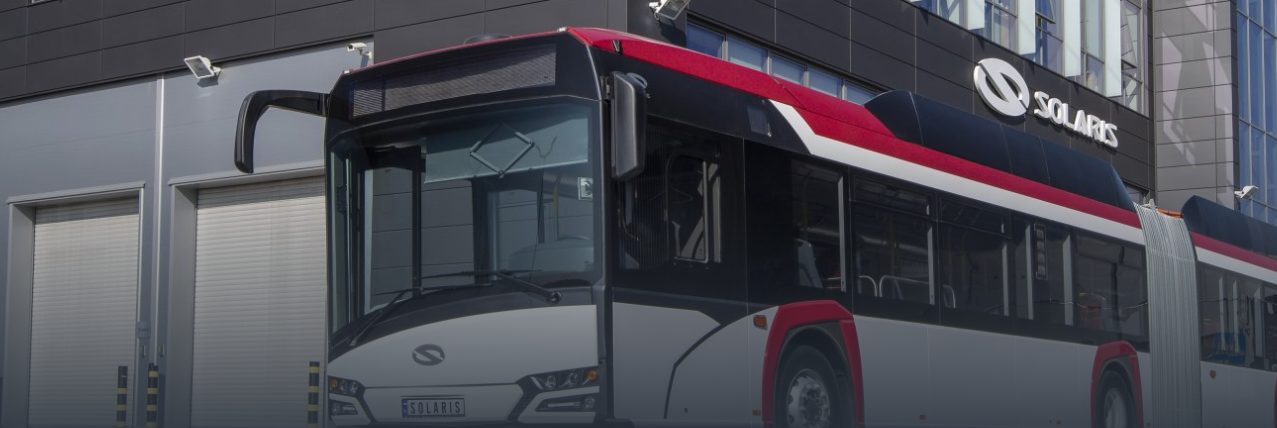

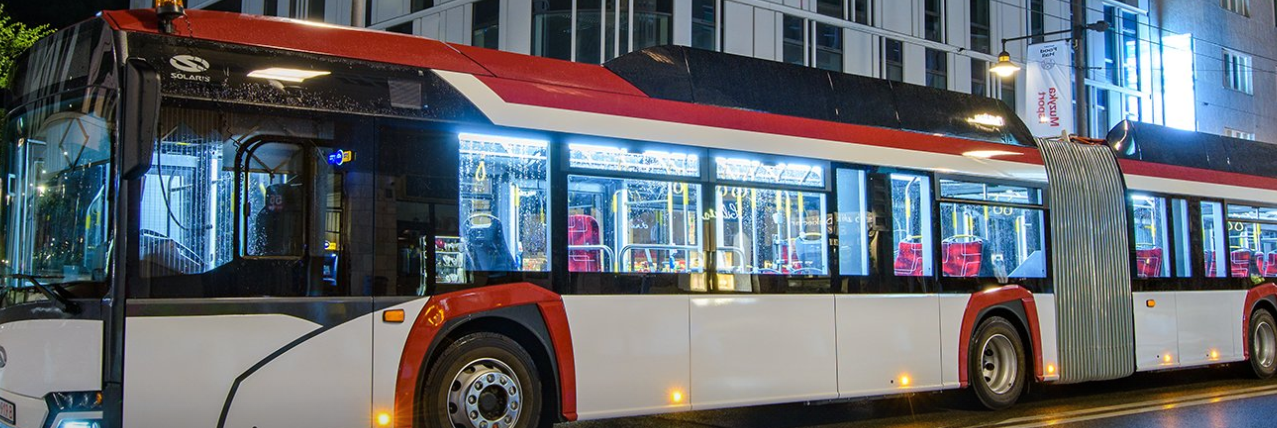

Trollino 24

Overall Length

24,700 mm

Overall Width

2,550 mm

Overall Height

3,490 mm

Passenger Capacity

Up to 68 seats, total up to 179 (including 54 seated and 2 for wheelchairs, depending on door arrangement and batteries)

Certified Range

Up to 20 km (off-wire, depending on battery capacity)

Fuel Type

Electric (In-Motion Charging)

Application

Bi-Articulated Trolleybus

Specification

Details

Front Axle

ZF independent suspension (standard) or ZF rigid axle (option)

Rear Axle

ZF steered rear axle

Fourth Axle

ZF tag axle with active steering (standard) or ZF tag axle (option)

Electric Motor

Kiepe IMC 500 (IGBT), 2 asynchronous 160 kW 4-pole motors

Specification

Details

Suspension

ECAS air suspension with leveling and kneeling function

Brakes

EBS (Electronic Braking System), ABS (Anti-Lock Braking System), ASR (Acceleration Slip Regulation)

Steering

RB Servocom

Specification

Details

Tyres

275/70 R22.5

Feature

Details

Battery

Lithium-ion, 58 kWh, located on roof of second section

Charging System

Semiautomatic or automatic pantograph (standard), manual pantograph (option), up to 500 kW via Kiepe IMC 500

Body Structure

Stainless steel, removable side panels

Door Arrangement

1-2-2-2-0, 2-2-2-2-0, 1-2-2-2-2, or 2-2-2-2-2, entrance height 320 mm

Wheelchair Ramp

Manually operated (standard) or electrically operated (option) at 2nd entrance

Climate Control

Driver’s cabin: optional air-conditioning (powered by passenger unit or electric drive); Passenger compartment: optional air-conditioning (electric drive), dual-function fans, water heating with electric water heater TJ40.3 (40 kW), convector-type heaters, 2-stage blowers (standard) or electric 1-stage blowers (option)

Electrical Installation

CAN-Bus system, central lubrication point with solid lubricating grease (standard) or central lubrication system with self-diagnostic semi-fluid lubricating grease (option)
