Specification

Details

Bus Model

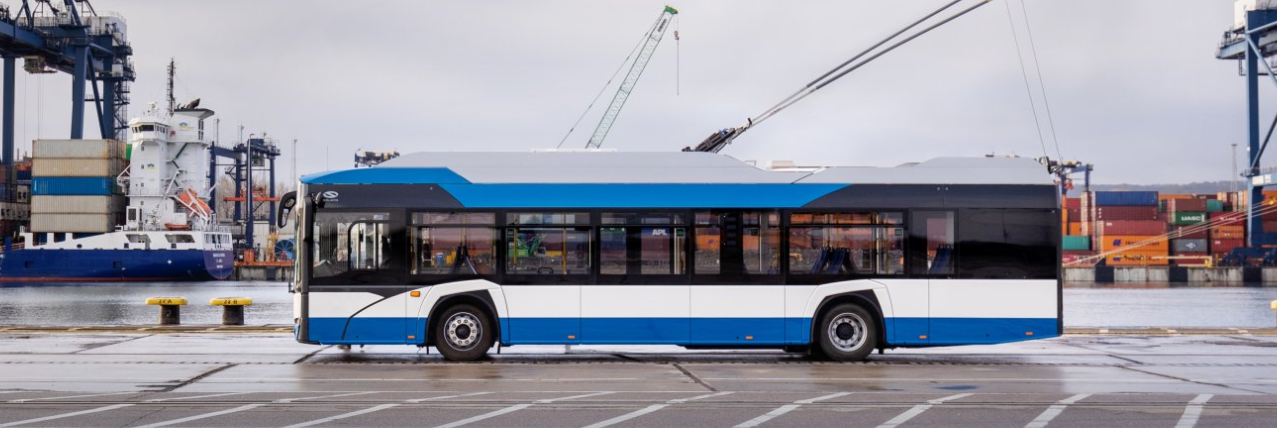

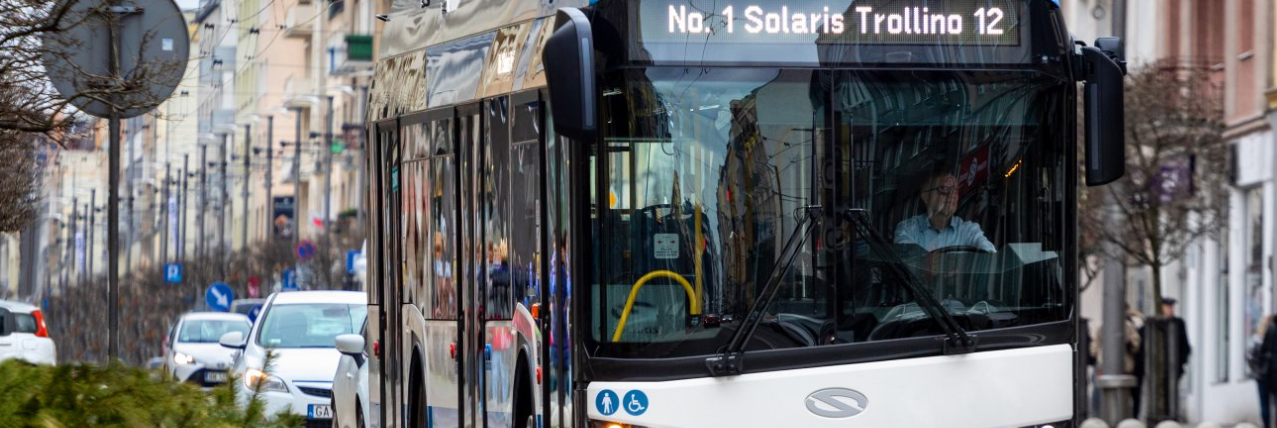

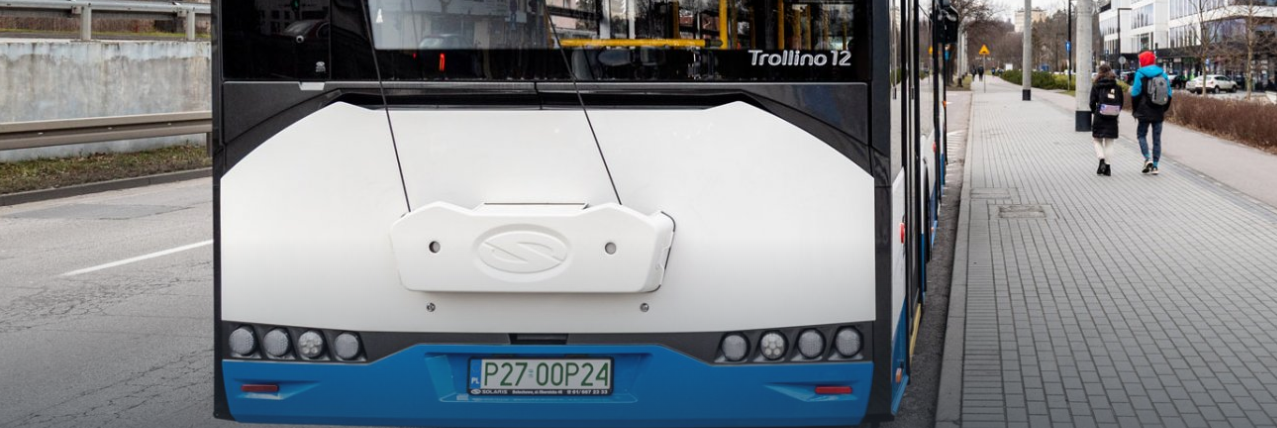

Trollino 12

Vehicle Category

Low-Floor Trolleybus

L x W x H

12000 x 2550 x 3400 mm

Wheelbase

5900 mm

GVW

19000 kg

Fuel Type

Electric

Application

Electric Trolleybus Bus

Door Arrangement

1-2-0, 2-2-0, 1-2-2, 2-2-2

Entrance Height

320 mm

Wheelchair Ramp

Manually operated (standard), Electrically operated (option)

Number of Passenger Seats

Max. 39 + 4

Total Passenger Capacity

90 (25 seated)

Max Speed

70 kmph

Range

Up to 20 km off-wire

Specification

Details

Drive System

MEDCOM ANT 175-600 (IGBT) asynchronous 175 kW 6-pole motor, MEDCOM ANT 175-600 (IGBT) asynchronous 160 kW 4-pole motor, Škoda BlueDrive (IGBT) asynchronous 160 kW 4-pole motor, Kiepe IMC 500 (IGBT) asynchronous 160 kW 4-pole motor

Traction Batteries

Lithium-ion, operation up to 24 h

Battery Capacity

60 kWh (Solaris High Power batteries)

Pantographs

Manual (standard), Semiautomatic or automatic (option)

Specification

Details

Front Axle

ZF independent suspension (standard), ZF rigid axle (option)

Drive Axle

ZF portal axle

Steering System

RB Servocom (standard), Hema (option)

Braking System

EBS, ABS, ASR

Suspension Levelling System

ECAS air suspension with leveling and kneeling function

Specification

Details

Central Lubrication

Central lubrication point, solid lubricating grease (standard); Central lubrication system with self-diagnostic, semi-fluid lubrication grease (option)

Air-Conditioning (Driver’s Cabin)

Electrical drive (option), Powered by passenger compartment unit (option)

Air-Conditioning (Passenger Compartment)

Electrical drive (option)

Ventilation System

Dual-function fans

Passenger Compartment Heating System

Water heating, electric water heater TJ40.3 (40 kW), convector-type heaters, 2-stage blowers (standard); Electric 1-stage blowers (option)

Electrical Installation

CAN-Bus system
