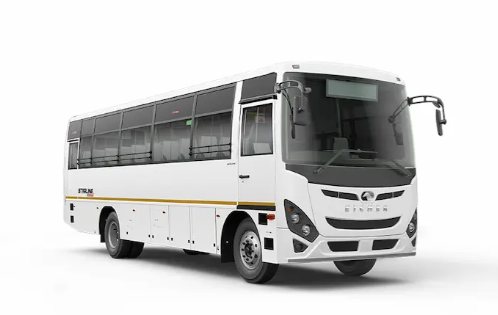

Skyline RP 2112M – Diesel Staff Bus Chassis with AC
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline RP 2112M |
|
Seating Capacity (HHR) |
45+1+D 3x2 (DD) |
|
Wheelbase, mm |
5330 |
|
Overall Length, mm |
9970 |
|
Overall Width, mm |
2590 |
|
Overall Height, mm |
3345 |
|
Ground Clearance, mm |
232 |
|
Front Overhang, mm |
1450 |
|
Rear Overhang, mm |
3190 |
|
Turning Circle Diameter, m |
19.4 |
|
Engine Make |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 RPM |
|
Torque |
500 Nm @ 1200 – 1800 RPM |
|
Clutch Diameter, mm |
330 |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Reverse) |
|
GVW |
13.1 t |
|

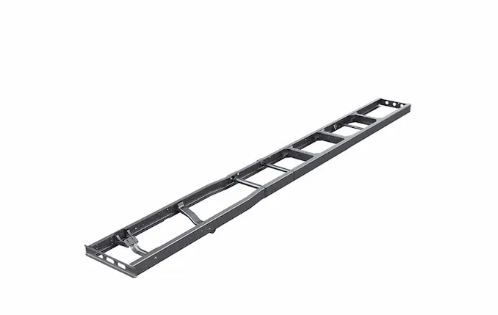

Chassis Type |
Domex® 650 |
|
Chassis C Frame Dimensions, mm |
210 x 76 x 6 |
|
Fuel Tank Capacity, L |
190 |
|
Ad Blue Tank Capacity, L |
27 |
|
Brakes |
Dual Circuit 'S' Cam Air Brakes |
|
Tyre Size |
9R20-16PR - 14PR |
|
Suspension |
Wevellar Suspension |
|
Steering Type |
Power Steering |
|
Battery |
12V, 130AH |
|
Alternator |
110A |
|
Flooring |
Aluminium Chequered |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Efficiency Feature |
MBooster+ |
|
Efficiency Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live Telematics System |
|
Steering Feature |
Adjustable Steering Column |
|
Seating Feature |
Seat Height Adjustment |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat Belts |
|
Safety Feature |
Emergency Exit |
|
Safety Feature |
Passenger Signage and Stop Arm |
|
Safety Feature |
First-Aid Kit |
|
Comfort Feature |
Air Conditioning (AC) Unit |
