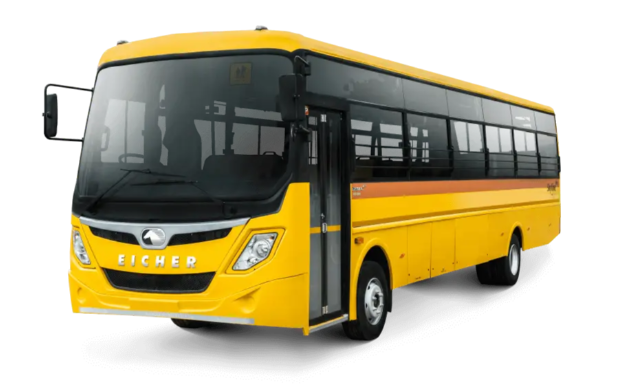

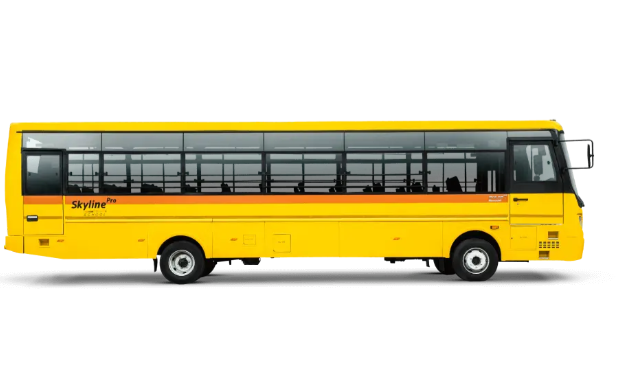

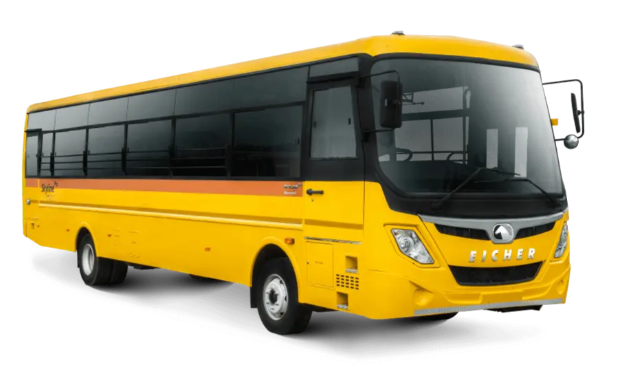

Eicher Skyline Pro Next 3011 H School Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3011 H |
|
Seating Capacity |
60+D (3X3) |
|
Wheelbase |
4320 mm |
|
Overall Length |
8957 mm |
|
Overall Width |
2590 mm |
|
Overall Height |
2956 mm |
|
Ground Clearance |
185 mm |
|
Front Overhang |
2045 mm |
|
Rear Overhang |
2592 mm |
|
Turning Circle Diameter |
15.2 m |
|
Engine Make |
E474 |
|
Displacement |
2960 cc |
|
Power |
140 hp (105 kW) @ 3200 Rpm |
|
Torque |
400 Nm @ 1200 - 2500 Rpm |
|
Fuel Type |
Diesel |
|
Max. GVW |
11 t |
|
Fuel Tank Capacity |
100 L |
|
Flooring |
Silicon embedded Vinyl |
|
Ad Blue Tank Capacity |
19 L |
|
Application |
school bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex® 650 |
|
Chassis Dimension |
210 X 76 X 6 mm |
|
Clutch |
310 mm |
|
Transmission Make |
ET40S5 |
|
Transmission Type |
Synchromesh 5Speed + 1Rev |
|
Fuel Tank Capacity |
100 L |
|
Ad Blue Tank Capacity |
19 L |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic With Anti-roll bar(ARB) |
|
Suspension Rear |
Parabolic |
|
Brakes |
Air Brakes - Drum with APDA |
|
Steering |
Power steering | Tilt & Telescopic |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5 - 14PR (Tubeless) |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Safety |
Fire Detection and Suppression System |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
