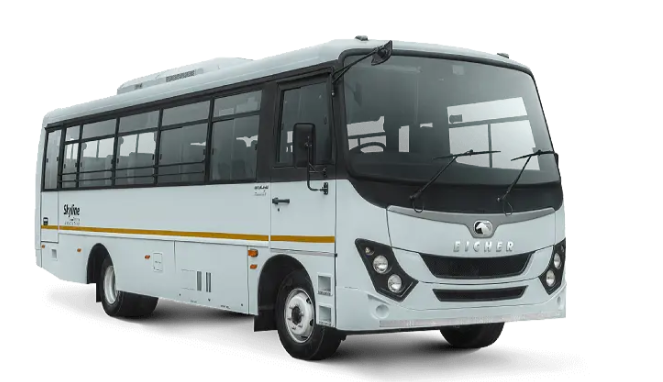

Eicher Skyline Pro Next 3009 H CNG AC Staff Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3009 H AC |
|

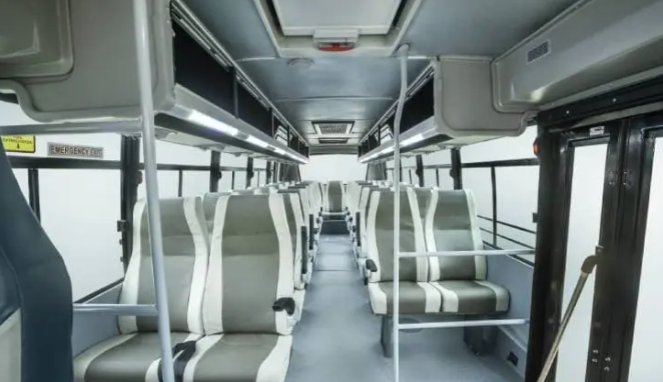

Seating Capacity |
35+D (2X2 HHR); 31+1+D (2X2 PB) |
|
Wheelbase |
4320 mm |
|
Overall Length |
8957 mm |
|
Overall Width |
2350 mm |
|
Overall Height |
3145 mm |
|
Front Overhang |
2045 mm |
|
Rear Overhang |
2592 mm |
|
Turning Circle Diameter |
15.2 m |
|
Engine Make |
E494 TCIC |
|
Displacement |
3770 cc |
|
Power |
100 kW @ 2400 rpm |
|
Torque |
450 Nm @ 1400 – 2000 rpm |
|
Fuel Type |
CNG |
|
Max. GVW |
10.2 t |
|
Cylinder Capacity |
440 litre |
|
Application |
staff bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex® 650 |
|
Chassis Dimension |
210X76X6 mm |
|
Clutch |
330 mm |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6-SPeed+1-Rev) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic with ARB |
|
Suspension Rear |
Parabolic |
|
Brakes |
Dual circuit 'S' cam full air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5-14 PR (Radial tubeless) |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|

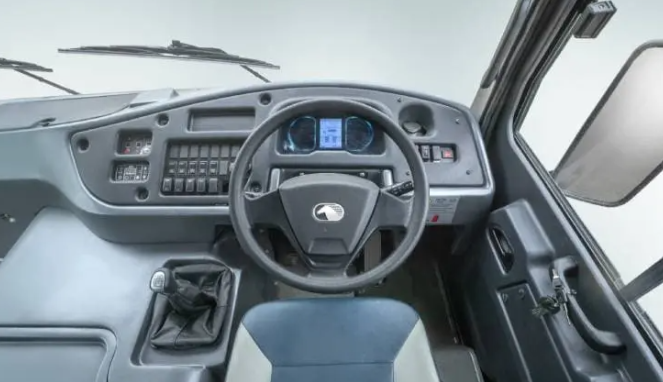

Feature: Driving Control |
Cruise Control |
|
Feature: Engine Protection |
Engine Protection System (EPS) |
|

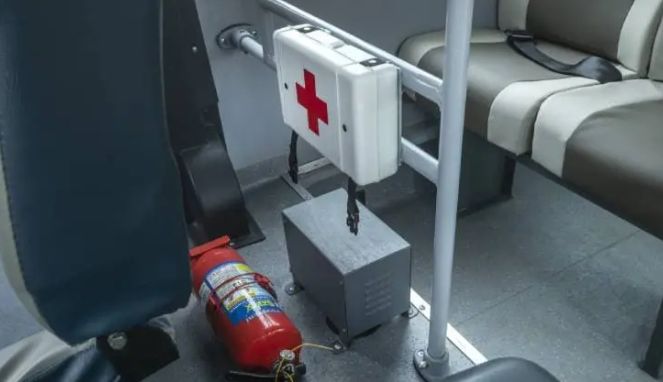

Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
