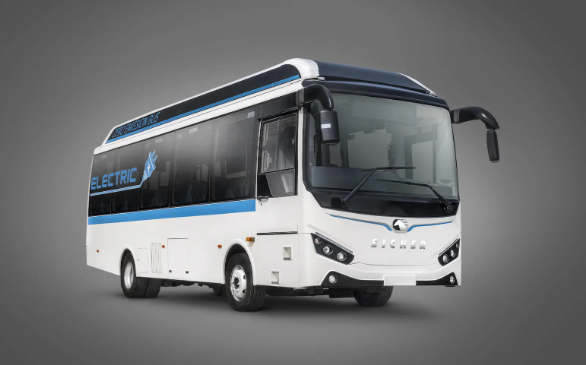

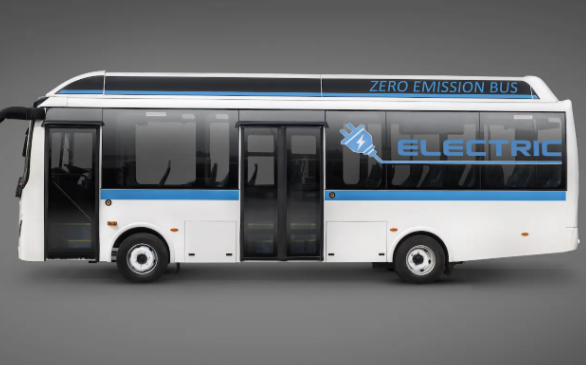

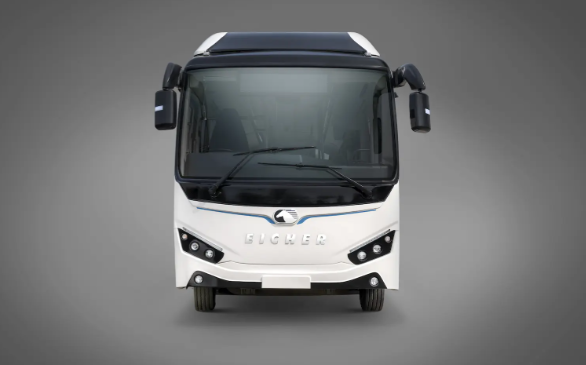

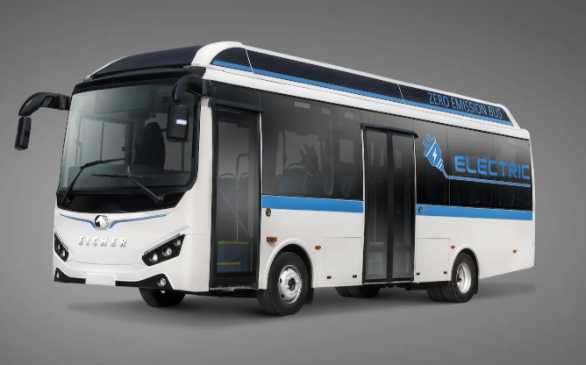

Eicher Skyline Pro E 9m Electric Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro E 9m |
|
Seating Capacity |
32+D |
|
Wheelbase |
4320 mm |
|
Overall Length |
9005 mm |
|
Overall Width |
2350 mm |
|
Overall Height |
3370 mm |
|
Ground Clearance |
189 mm |
|
Floor Height |
900 mm |
|
Turning Circle Diameter |
16 m |
|
Battery Capacity |
Upto 204 kWh |
|
Battery Type |
Li-ion |
|
Max Power |
235 kW |
|
Max Torque |
3250 Nm |
|
Fuel Type |
Electric |
|
Max. GVW |
12.8 t |
|
Flooring |
Vinyl |
|
Application |
Electric Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex® 650 |
|
Transmission Type |
Automatic |
|
Electrical Regeneration |
Yes |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front & Rear: Air Suspension |
|
Brakes |
Front-Disc, Rear-Drum |
|
Steering |
Power-assisted |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
245/70 R17.5 |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Electrical Regeneration |
|
Feature: Battery Protection |
IP 67 |
|
Feature: Cooling System |
Active Cooling |
|
Feature: Safety |
Fire Detection and Suppression System (FDSS) |
|
Feature: Safety |
Short Circuit Protection |
|
Feature: Safety |
Over-temperature Protection |
|
Feature: Safety |
Lightning Protection |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning (As Per UBS II) |
|
Feature: Door System |
Pneumatic Front-outswing, Middle-inswing |
|
Feature: Body Standards |
Meeting AIS 052 |
