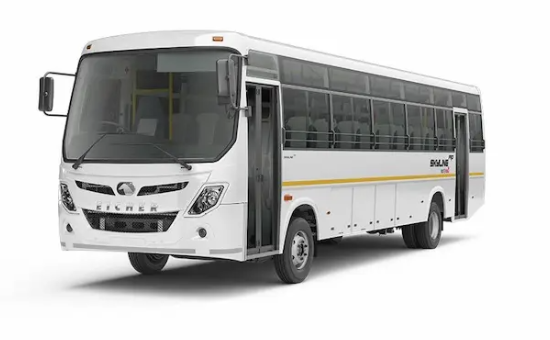

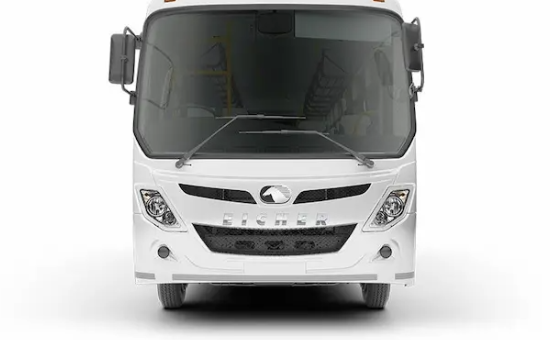

Eicher Skyline Pro 3010 L Diesel
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro 3010 L |
|
Seating Capacity |
44+D(SD)/40+D(DD) |
|
Wheelbase |
5260 mm |
|
Overall Length |
10439 mm |
|
Overall Width |
2350 mm |
|
Overall Height |
2993 mm |
|
Ground Clearance |
165 mm |
|
Front Overhang |
2045 mm |
|
Rear Overhang |
3134 mm |
|
Turning Circle Diameter |
18.5 m |
|
Engine Make |
E494 |
|
Displacement |
3770 cc |
|
Power |
120 kW @ 2600 r/min |
|
Torque |
500 Nm @ 1200-1800 r/min |
|
Fuel Type |
Diesel |
|
Max. GVW |
10.7 t |
|
Flooring |
Aluminium Chequered |
|
Ad Blue Tank Capacity |
27 litres |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex ® 650 |
|
Chassis Dimension |
210 X 76 X 6 mm |
|

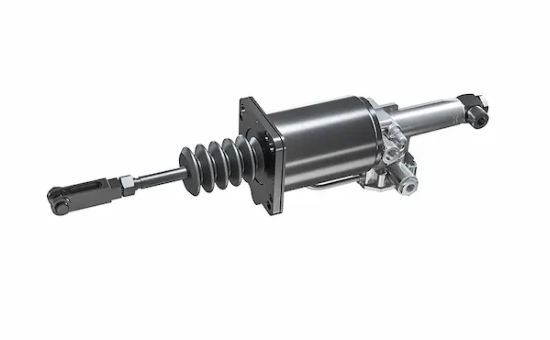

Clutch |
330 mm |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 SPeed+1Rev) |
|
Fuel Tank Capacity |
160 litres |
|
Ad Blue Tank Capacity |
27 litres |

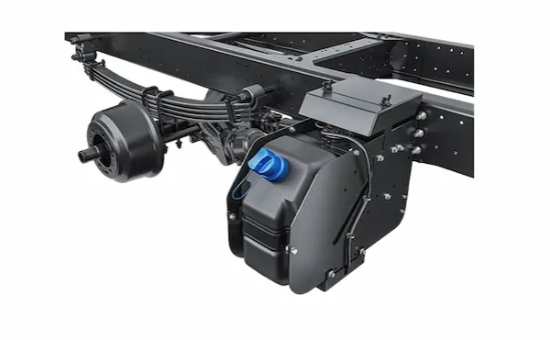

Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Parabolic with ARB – Front ; Parabolic – Rear |
|
Brakes |
Dual circuit 'S' cam full air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5 - 14PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
