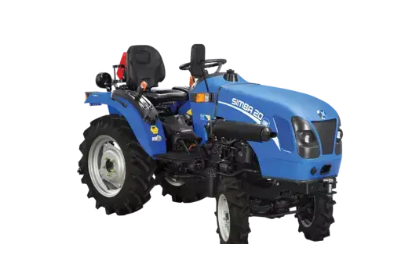

Simba 20 2WD – 2WD Mini Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
Simba 20 2WD |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Mini Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
1 |
|
Engine Displacement |
947.4 cc |
|
Engine Type |
Naturally Aspirated |
|
Max Torque |
63 Nm |
|
Engine Rated RPM |
2200 |
|
Clutch Type |
Single |
|
Transmission Type |
Sliding Mesh, Side Shift |
|
Drive Type |
2WD |
|
Number of Gears |
9F + 3R |
|
Power Range |
17 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Mechanical |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
5 x 12 in (127 mm x 304.8 mm) (Standard), 5.25 x 14 in (133.35 mm x 355.6 mm) (Narrow Track) |
|
Rear Tyres |
8 x 18 in (203.2 mm x 457.2 mm) (Standard), 8.3 x 20 in (210.82 mm x 508 mm) (Narrow Track) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
750 kg |
|
Hydraulic Control System |
Automatic Depth & Draft Control |
|
PTO Power |
13.4 HP |
|
PTO RPM |
540 & 1000 |
|
Fuel Tank Capacity |
20 L |
|
Battery |
12 V, 65 Ah |
|
Air Cleaner Type |
Oil Bath with Pre-Cleaner |
|
Headlamps |
Projector Headlamp |
|
Track Width Option |
28 in (0.71 m) |
|
Overall Length |
2730 mm |
|
Width |
1020 mm |
|
Height |
1450 mm |
|
Wheelbase |
1490 mm |
|
Ground Clearance |
245 mm |
|
Weight |
850 kg |
|
Turning Radius |
2.4 m |
