TVS Jupiter 2025 – Family Scooter
Specifications
|
Specification |
Details |
|
Engine |
113.3cc, 4-stroke, single-cylinder, air-cooled, SOHC, BS6 Phase 2 |
|
Power |
8.02 PS @ 6500 rpm |
|
Torque |
9.8 Nm @ 5000 rpm |
|
Transmission |
CVT automatic |
|
Mileage |
50 kmpl (user-reported, mixed) |
|
Fuel Tank Capacity |
5.1L |
|
Kerb Weight |
109 kg |
|
Dimensions (LxWxH) |
1848x665x1158 mm |
|
Wheelbase |
1275 mm |
|
Ground Clearance |
163 mm |
|
Seat Height |
765 mm |
|
Suspension (Front/Rear) |
Telescopic hydraulic/Twin tube emulsion shock, 3-step adjustable |
|
Brakes (Front/Rear) |
220 mm disc or 130 mm drum/130 mm drum, SBT |
|
Tyres (Front/Rear) |
90/90 R12/90/90 R12, tubeless |
|
Variants |
Drum, Drum Alloy, Disc SmartXonnect |
|
Price (Ex-Showroom, (Year - 2025)Delhi) |
₹76,691–₹89,791(Year-2025) |
Engine & Transmission
|
Specification |
Details |
|
Engine Type |
Air-cooled, 4-stroke, single-cylinder, SOHC, fuel-injected |
|
Displacement |
113.3cc |
|
Bore & Stroke |
51 mm x 55.5 mm |
|
Compression Ratio |
10:1 |
|
Maximum Power |
8.02 PS @ 6500 rpm |
|
Maximum Torque |
9.8 Nm @ 5000 rpm |
|
Fuel System |
Bosch fuel injection, ETFi |
|
Transmission |
CVT automatic |
|
Clutch |
Automatic |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
1848 mm |
|
Overall Width |
665 mm |
|
Overall Height |
1158 mm |
|
Wheelbase |
1275 mm |
|
Ground Clearance |
163 mm |
|
Seat Height |
765 mm |
|
Kerb Weight |
109 kg |
|
Payload Capacity |
130 kg |
|
GVW |
239 kg |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
High rigidity underbone |
|
Front Suspension |
Telescopic hydraulic |
|
Rear Suspension |
Twin tube emulsion shock, 3-step adjustable |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
220 mm disc or 130 mm drum |
|
Rear Brake |
130 mm drum |
|
Braking System |
Synchronized Braking Technology (SBT) |
|
Front Tyre |
90/90 R12, tubeless |
|
Rear Tyre |
90/90 R12, tubeless |
|
Wheels |
12-inch alloy |
Electricals & Features
|
Specification |
Details |
|
Battery |
12V, 4Ah MF |
|
Starting Method |
Electric and kick |
|
Instrumentation |
Digital cluster with SmartXonnect (top variant) |
|
Lighting |
LED headlamp, LED DRL, LED tail lamp, halogen indicators |
|
Features |
33L underseat storage, USB charger, external fuel fill, follow-me headlamps, SmartXonnect (navigation, voice assist), iGO Assist, E20 fuel compatible |
|
Safety Features |
SBT, hazard warning, pillion grabrail |

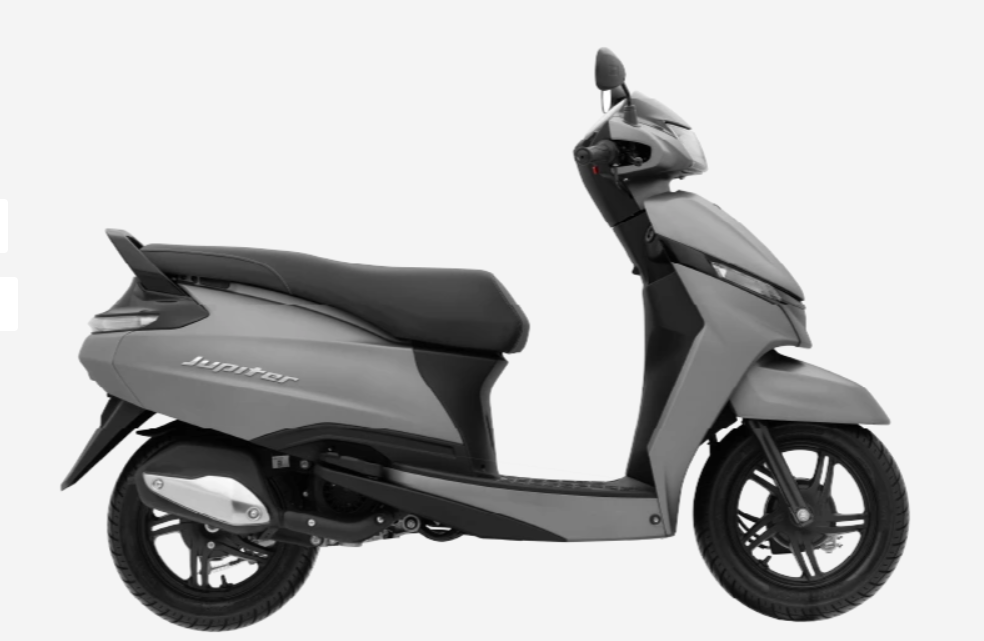

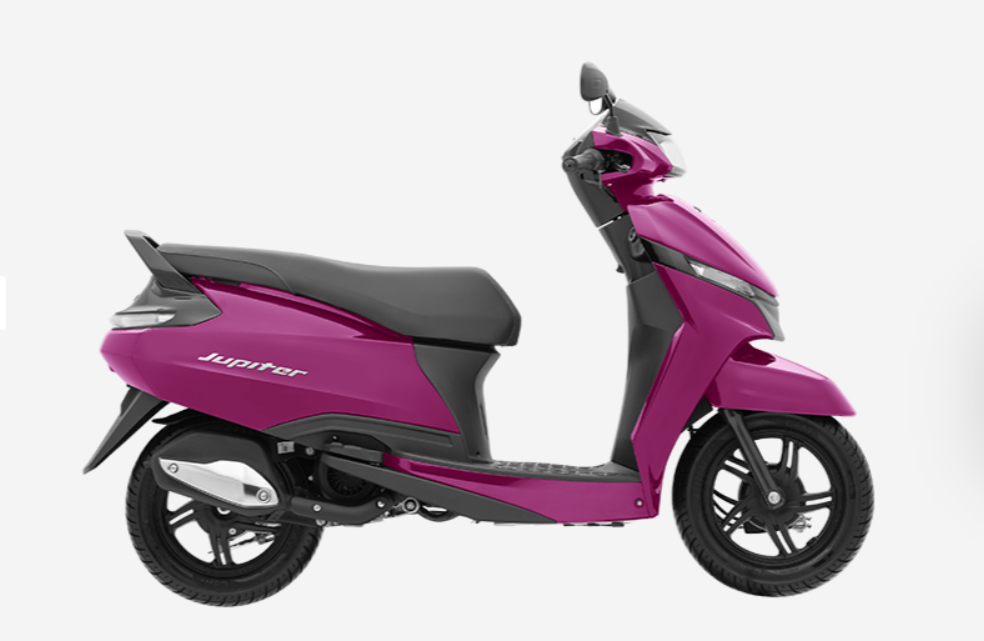

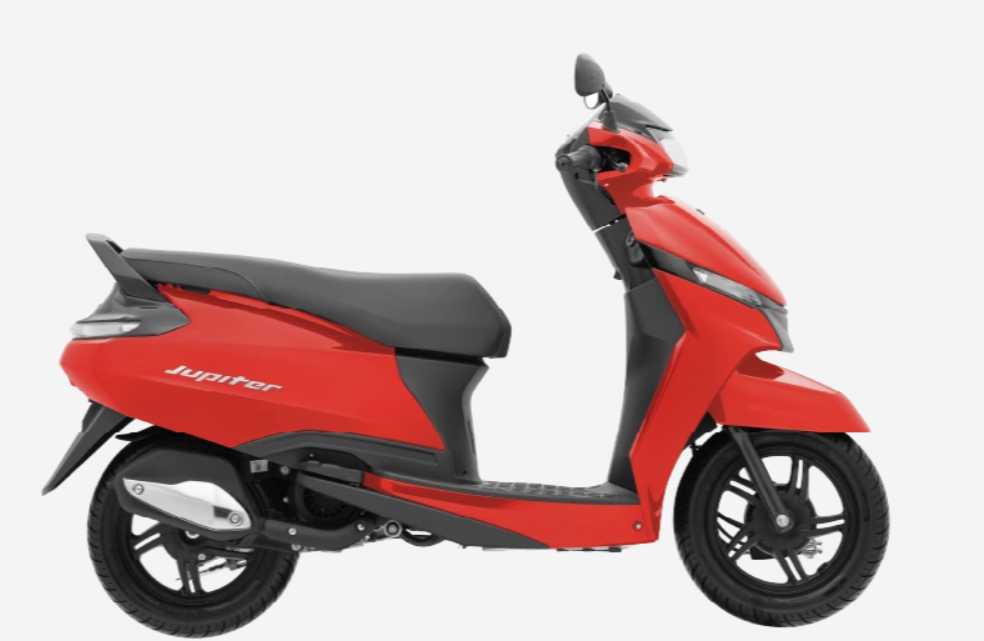

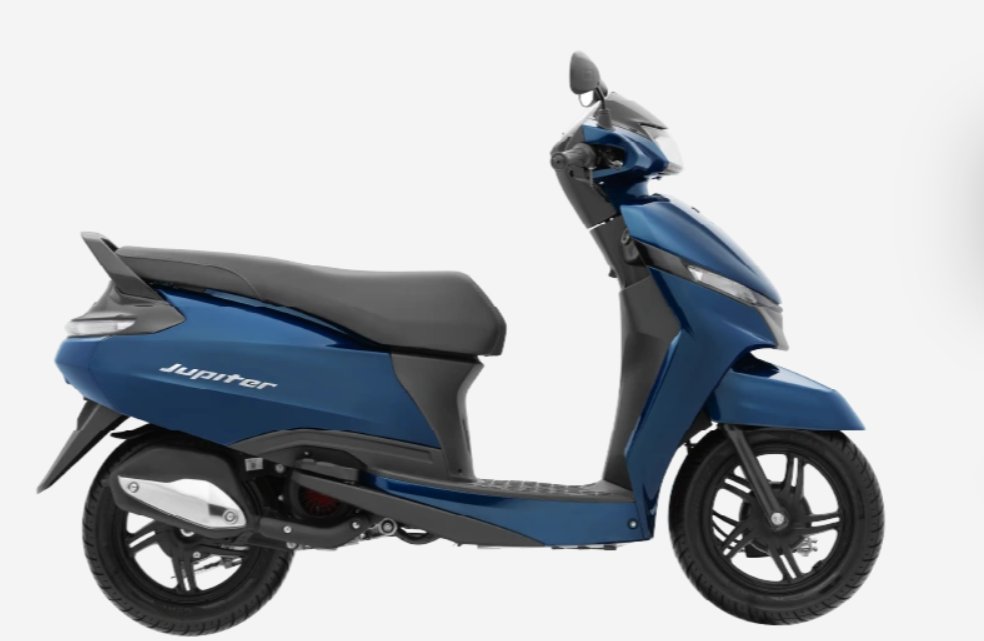

Available Colors
|
Specification |
Details |
|
Colors |
Mystic Grey, Starlight Blue, Lunar White, Titanium Grey, Galactic Copper, Cosmic Black, Meteor Red |
