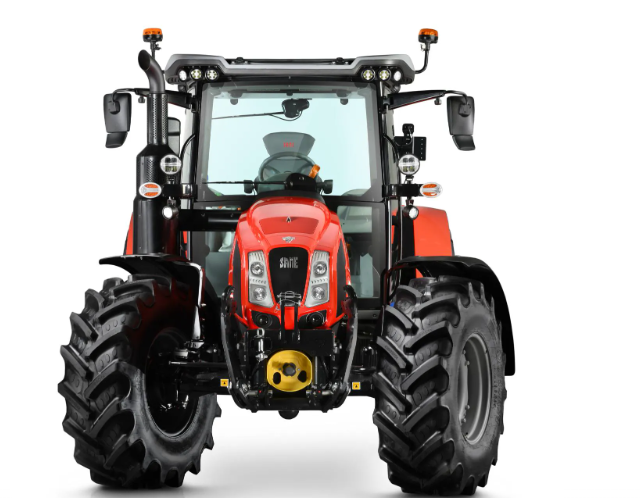

SAME Virtus 125 Powershift – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Virtus 125 Powershift |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mixed Farming, Arable Farming, Grassland, Loader Work, Municipal Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, VTG Turbocharger with Charge Air Cooling, VISCO Cooling Fan, Stage V |
|
Rated Horsepower |
88.2 kW / 120 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
93 kW / 126 HP @ 2,000 RPM (ECE R120) |
|
Maximum Horsepower with Boost |
100 kW / 136 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
505 Nm @ 1,600 RPM |
|
Maximum Torque with Boost |
524 Nm @ 1,600 RPM |
|
Transmission Type |
Powershift (T5441, 5 Gears x 3 Powershift Steps, 30+30, Optional Creeper 60+60, 40 km/h ECO @ 1,780 RPM, SpeedMatching, APS, Stop&Go, PowerShuttle with 5 Settings) |
|
Transmission Ratio |
1.3461 |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader (FZ 41-33 or FZ 43-27, Overloading Height 3,890 mm or 4,110 mm, Breakout Force 3,850 daN or 3,540 daN) |
|
Suspension |
Optional Suspended Front Axle (Hydraulic, Lockable, SDF Model), TopVision+ Cab with Hydro Silent-Block Mounts (40% Vibration Reduction) or Optional Mechanical Cab Suspension |
|
Braking System |
All-Wheel Braking, Hydraulic Brake Master Cylinder (10 Brake Applications Reserve), Mechanical Parking Brake, Optional Hydraulic Engine Brake (HEB), Optional Pneumatic or Hydraulic Trailer Brake with DualMode, ABS Socket |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
380/70 R24 / 480/70 R34 (Min), 540/65 R24 / 600/65 R38 (Max) |
|
Track Setting (Front/Rear) |
1,770 mm / 1,740 mm (Flange to Flange) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, Multi-Disc Wet Clutch, 540/540ECO/1000/1000ECO, Optional Groundspeed PTO, Optional Auto PTO (Configurable via iMonitor), Optional Front PTO 1000 |
|
Hydraulic System |
90 l/min (Standard) or 120 l/min Load Sensing (Optional), 3-5 Rear Auxiliary Valves (Mechanical/Electronic, Adjustable Time/Flow), Optional 2-Way Low Flow (25 l/min) ON/OFF Distributor (Up to 10 Rear Couplers), Optional Power Beyond, Optional 1 Front Diverter, Separate Steering Pump |
|
Rear Lift |
Electronic Control, Anti-Dumping Function, Cat II/IIIN, 5,000 kg (Standard), 7,000 kg (Optional), Optional Hydraulic Upper Link, External Operation on Rear Fenders |
|
Front Lift |
Optional, 3,000 kg, Mechanical or Electronic Control |
|
Cab Options |
TopVision+ Cab, Hydro Silent-Block Mounts, Optional Mechanical Cab Suspension, Adjustable Steering Wheel, Max-Professional Plus Pneumatic Seat, Optional Passenger Seat, Optional DAB+ Radio, USB Ports, 8 Halogen or 16 LED Work Lights, Optional High Visibility FOPS Roof, Air Conditioning, Heated/Electronic Mirrors, Rear Screen Demist, Storage Compartment or Refrigerator Box |
|
Fuel Tank Capacity |
160 L (Diesel), 12 L (AdBlue) |
|
Weight |
5,000 kg (Unladen), 8,000 kg (Max Permissible) |
|
Wheelbase |
2,480 mm |
|
Length |
4,500 mm |
|
Height |
2,860 mm (Max) |
|
Width |
2,431 mm (Max) |
|
Ground Clearance |
480 mm |
