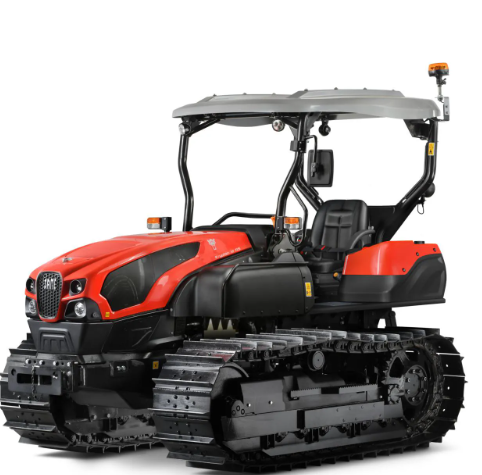

SAME Krypton F 90 – 4WD Crawler Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Krypton F 90 |
|
Vehicle Category |
Crawler Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |

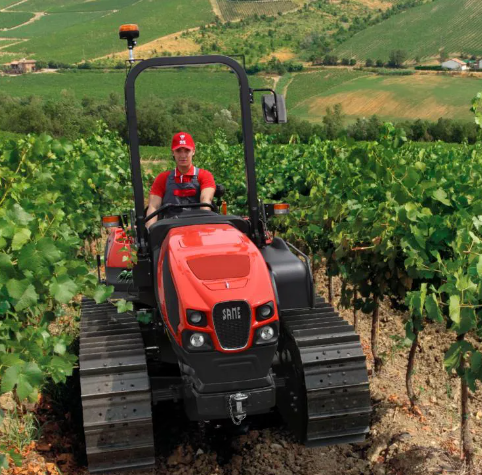

Orchards, Vineyards, Hilly Terrains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, Stage V, DOC+DPF+SCR, PowerCore Air Filter |
|
Rated Horsepower |
63.5 kW / 86 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
67 kW / 91 HP @ 2,200 RPM (ECE R120) |
|
Maximum Torque |
372 Nm @ 1,400 RPM |
|
Transmission Type |
Mechanical, 16+16 (4 Gears, 2 Ranges with OverDrive) or 12+12 with Creeper, Synchronised Reverse Shuttle, Min Speed 0.43 km/h, Max Speed 12.5 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Low-Profile Sides, Silent-Block Suspended Platform |
|
Suspension |
Silent-Block Mounts, Mechanical Suspended Seat |
|
Braking System |
Multi-Plate Wet Lateral Steering Clutches, Wet Band Steering Brakes, Pedal-Operated Service Brake |
|
Steering |
Hydraulically Assisted Steering Clutches, Low-Effort Ergonomic Levers |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO, Electrohydraulic Engagement, Interchangeable Output Flange Shaft |
|
Hydraulic System |
50 l/min (Lift and Distributors) + 25 l/min (Steering, Brakes, PTO, Transmission Lubrication), 3 Double-Acting Rear Spool Valves (Standard), Up to 5 (10 Ways), 2 Mid-Mounted Hydraulic Ways with Flow Regulator |
|
Rear Lift |
Mechanical, 3,170 kg, Category II, Position and Draft Control, Fixed or Automatic Couplers |
|
Driving Position |
Silent-Block Suspended Platform, Low-Profile Sides, 2-Post Foldable Safety Frame, Mechanical Suspended Seat, Lateral Console with Ergonomic Controls, Aftermarket Cab Pre-Arrangement (A/C Compressor, Larger Alternator) |
|
Fuel Tank Capacity |
95 L, 11 L AdBlue |
|
Weight |
4,350 kg (C-Equipment, 310 mm), 4,400 kg (N-Equipment, 360 mm), 4,600 kg (L-Equipment, 400 mm), 4,300 kg (N-Equipment, ComfortTrack 400 mm) |
|
Wheelbase |
1,650 mm (Steel Tracks), 1,663 mm (ComfortTrack) |
|
Length |
3,420 mm |
|
Height |
2,600 mm |
|
Width |
1,360 mm (C-Equipment, 310 mm), 1,460 mm (N-Equipment, 360 mm), 1,750 mm (L-Equipment, 400 mm), 1,540 mm (N-Equipment, ComfortTrack 400 mm) |
|
Track Type |
Steel with Semi-Lubricated Chains, Optional ComfortTrack Rubber (400 mm) |
|
Number of Rollers |
5 |
|
Number of Shoes |
37 (Steel) |
|
Shoe Width |
310 mm (C-Equipment), 360 mm (N-Equipment), 400 mm (L-Equipment) |
|
Footprint Area |
Up to 13,200 cm² (Steel Tracks) |
