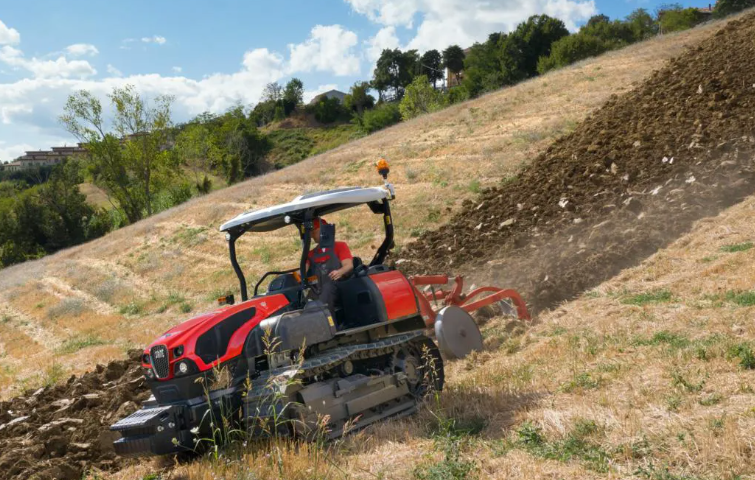

SAME Krypton 115 – 4WD Crawler Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Krypton 115 |
|
Vehicle Category |
Crawler Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |
Heavy-Duty Open Field, Hilly Terrains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbo Intercooler with Wastegate, Viscostatic Fan, Stage V, DOC+DPF+SCR, PowerCore Air Filter |
|
Rated Horsepower |
80.6 kW / 110 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
85 kW / 116 HP @ 2,200 RPM (ECE R120) |
|
Maximum Torque |
472 Nm @ 1,400 RPM |
|
Transmission Type |
Mechanical, 16+16 (4 Gears, 2 Ranges with OverDrive) or 12+12 with Creeper, Synchronised Reverse Shuttle, Min Speed 0.43 km/h, Max Speed 12.5 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Flat Floor Platform, Silent-Block Mounts |
|
Suspension |
Silent-Block Mounts, Optional Pneumatic Suspended Seat |
|
Braking System |
Multi-Plate Wet Lateral Steering Clutches, Wet Band Steering Brakes, Pedal-Operated Service Brake |
|
Steering |
Hydraulically Assisted Steering Clutches, Ergonomic Levers |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 540/1000, Electrohydraulic Engagement, Interchangeable Output Flange Shaft |
|
Hydraulic System |
50 l/min (Lift and Distributors) + 25 l/min (Steering, Brakes, PTO, Transmission Lubrication), 3 Double-Acting Rear Spool Valves (Standard), Up to 5 (10 Ways), 2 Mid-Mounted Hydraulic Ways |
|
Rear Lift |
Mechanical, 3,170 kg, Category II, Position and Draft Control, Fixed or Automatic Couplers |
|
Driving Position |
Flat Floor Platform, Silent-Block Mounts, 4-Post ROPS with Optional Sunroof, Optional Pneumatic Suspended Seat, Digital-Analog Cluster, 2+2 Halogen or LED Working Lights, Aftermarket Cab Pre-Arrangement (A/C Compressor, Larger Alternator, Heating Lines) |
|
Fuel Tank Capacity |
130 L, 11 L AdBlue |
|
Weight |
5,350 kg |
|
Wheelbase |
1,850 mm |
|
Length |
3,550 mm |
|
Height |
2,320 mm |
|
Width |
1,800 mm |
|
Track Type |
Steel, Optional Lubricated Chains |
|
Number of Rollers |
6 |
|
Number of Shoes |
40 |
|
Shoe Width |
450 mm |
|
Footprint Area |
16,650 cm² |
