SAME FruttetoPRO S 105 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
FruttetoPRO S 105 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Ready |
|
Application |
Orchards, Vineyards (Medium-Width Rows) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, Stage V |
|
Rated Horsepower |
74 kW / 101 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
78 kW / 106 HP @ 2,200 RPM (ECE R120) |
|
Maximum Torque |
433 Nm @ 1,400 RPM |
|
Transmission Type |
PowerShuttle, 30+30 (5 Gears, Hi-Lo 2-Powershift) or 45+45 (HML 3-Powershift), SenseClutch, Stop&Go, ComfortClutch, Max Speed 40 km/h ECO |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, 4-Pillar Cab, Hydro Silent-Block Suspension |
|
Suspension |
Optional ActiveDrive Front Suspended Axle (Adaptive-Damping, Active Self-Levelling, Anti-Dive, Anti-Roll, Differential Traction Control) |
|
Braking System |
Front Axle with Brakes, Electrohydraulic 4WD and Diff.Lock, Optional Hydraulic Trailer Brake, ABS Socket |
|
Steering |
Steering Double Displacement (SDD), Auto 4WD, Independent Steering Pump (42 l/min) |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres |
Front: 280/70 R18, Rear: 380/70 R28 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 540/540ECO/1000 or Ground Speed, Rear Auto PTO, Optional Front PTO 1000 |
|
Hydraulic System |
88 l/min (Lift and Distributors), 42 l/min (Steering), 3–4 Rear Spool Valves (Electronic), 1 Rear Free Return, Optional 2–4 Mid-Mounted Spool Valves, Optional 2–8 Mid-Mounted Ways, Optional 1–2 Mid-Mounted Free Returns |
|
Rear Lift |
Electronic, 2,600 kg, Hydraulic Right Tie Rod and Stabilizers, Vibration Damping |
|
Front Lift |
Optional, 2,100 kg |
|
Driving Position |

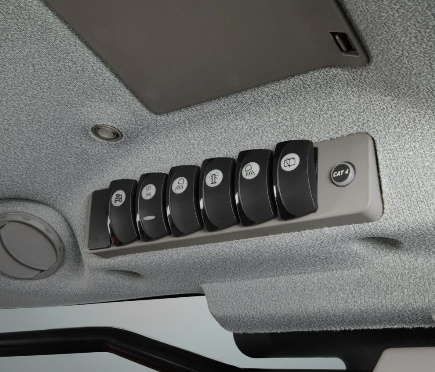

4-Pillar Cab, Flat Floor, Hydro Silent-Block Suspension, InfoCentre+, Electronic Joystick with Swappable Controls, Jolly Buttons, Adjustable Steering Column, Cat.4 Filtration, Liftable Rear Top Roof, Rounded/Openable Front Windscreen, 4 Halogen (Standard) or 4–8 LED Working Lights, Smartphone Holder, 2 USB Plugs, Radio, Jump Start, External PTO/Lift Controls |
|
Fuel Tank Capacity |
73 L (53 L with Mid-Mounted Implement), 13 L AdBlue |
|
Weight |
3,320–3,920 kg |
|
Wheelbase |
2,216 mm |
|
Length |
3,990 mm |
|
Height |
2,495 mm (Cab), 1,475 mm (Bonnet) |
|
Width |
1,380 mm |
