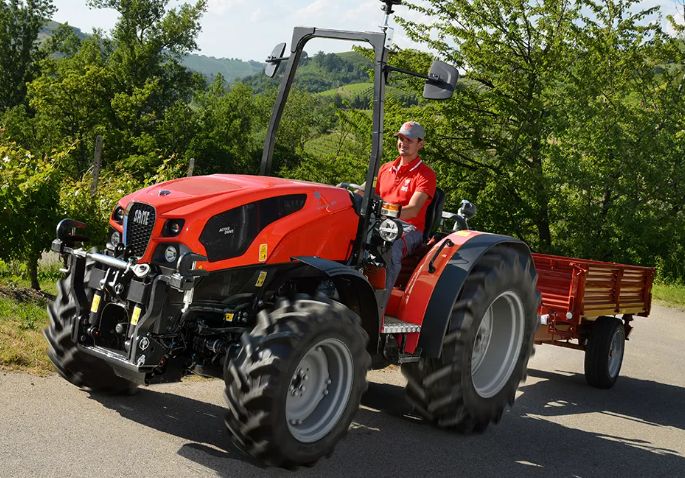

SAME Frutteto Platform 90 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Frutteto Platform 90 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |
Orchards, Vineyards, Vegetable Production, Pergola Training, Citrus Orchards |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, PowerCore Air Filter, Viscostatic Fan, Stage V, DOC+DPF+SCR |
|
Rated Horsepower |
63.5 kW / 86 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
67 kW / 91 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
372 Nm @ 1,400 RPM |
|
Transmission Type |
Mechanical (12+12 or 24+12 with Splitter, 15+15 or 30+15 with Splitter, 30+30 with Hi-Lo) or Powershift (15+15, 30+30 with Hi-Lo, 45+45 with HML), 40 km/h ECO, Min Speed 240 m/h, Stop&Go, ComfortClutch, SenseClutch |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
Hydro Silent-Block Platform Suspension, Optional ActiveDrive Front Axle (Adaptive-Damping, Self-Levelling, Anti-Dive, Anti-Roll, DTC), Mechanical Seat Suspension (Standard), Optional Pneumatic Seat Suspension |
|
Braking System |
All-Wheel Wet Disc Brakes, Optional Hydraulic Trailer Brake |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
240/70 R16 / 380/70 R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 1000, Optional Groundspeed PTO |
|
Hydraulic System |
48 l/min (Standard) or 56 l/min (Optional) or 68 l/min (Double Pump), 4/6/10 Rear Hydraulic Ways, 4 Mid-Mounted Ways (Optional), Free Return, Flow Divider, Independent Steering Pump |
|
Rear Lift |
Mechanical (Standard) or Electronic (Optional, with Vibration Damping), 3,130 kg (Standard), 3,940 kg (Optional), Optional Hydraulic Tie Rod and Stabilizers, External Controls |
|
Front Lift |
Optional, 1,500 kg, Foldable Arms |
|
Cab Options |
Welded Platform with Tunnel, 2-Post Foldable Safety Frame, Hydro Silent-Block Suspension, Height-Adjustable Steering Column, Smartphone Holder with 2 USB Chargers, LED Driving and Working Lights, CTM Connectivity |
|
Fuel Tank Capacity |
82 L (Diesel), 13 L (AdBlue) |
|
Weight |
2,590 kg, Total Admissible: 5,000 kg |
|
Wheelbase |
2,044 mm |
|
Length |
3,825 mm (Max) |
|
Height |
2,225 mm (ROPS) |
|
Height at Bonnet |
1,351 mm |
|
Height at Mudguards |
1,180 mm |
|
Width |
1,540 mm |
