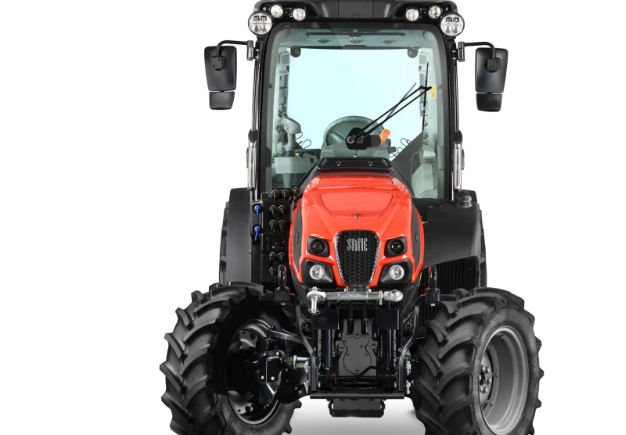

SAME Frutteto CVT 90 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Frutteto CVT 90 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |
Orchards, Vineyards, Grounds Care, Material Handling |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, Viscostatic Fan, Stage V, DOC+DPF+SCR |
|
Rated Horsepower |
63.5 kW / 86 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
67 kW / 91 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
372 Nm @ 1,400 RPM |
|
Transmission Type |
Continuously Variable Transmission (CVT), 40 km/h @ 1,570 RPM, PowerZero, 2+2 CruiseSpeed, Auto/Manual/PTO Modes, SenseClutch (5 Levels) |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
Hydro Silent-Block Cab Suspension, Optional ActiveDrive Front Suspension (Adaptive-Damping, Self-Levelling, Anti-Dive, Anti-Roll, DTC), Pneumatic Suspended Seat |
|
Braking System |
4-Wheel Braking, Hydraulic Parking Brake (HPB), Optional Hydraulic Trailer Brake |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres |
Optional PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO/1000 (Standard), Optional Groundspeed PTO, Optional Front PTO 1000, Electrohydraulic Engagement, Auto PTO Function |
|
Hydraulic System |
84 l/min Open Centre (Standard), 100 l/min Closed Centre (Optional), 2/3/4/5 Rear Spool Valves, 2/4 Mid-Mounted Spool Valves, 2/3/4 Mid-Mounted Ways Duplicated from Rear, 2 Free Returns, Power Beyond (Optional) |
|
Rear Lift |
Electronic, 3,800 kg, Vibration Damping, Optional Hydraulic Right Tie Rod and Stabilizers |
|
Front Lift |
Optional, 1,500 kg |
|
Cab Options |
4-Pillar Cab, Flat Floor, Hydro Silent-Block Suspension, Cat.4 Filtration, MaxCom Armrest, InfoCentrePro, ComforTip, Air Conditioning, 4 Gen LED Lights, Optional Rear Cameras, Optional 8” iMonitor, Optional Multimedia Audio System, Phone Holder with 2 USB Chargers |
|
Fuel Tank Capacity |
81 L (61 L with Front Lift/PTO), 100 L XL (80 L with Front Lift/PTO), 13 L AdBlue |
|
Weight |
3,340–3,930 kg, Total Admissible: 5,200 kg |
|
Wheelbase |
2,044 mm |
|
Height |
2,520 mm (Max) |
|
Width |
1,411–1,671 mm |
