SAME Frutteto 80 Classic – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Frutteto 80 Classic |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |
Orchards, Vineyards, Grounds Care, Material Handling |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, Viscostatic Fan, Stage V, DOC+DPF, No AdBlue |
|
Rated Horsepower |
55.2 kW / 75 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
55.8 kW / 76 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
341 Nm @ 1,500 RPM, 300 Nm @ 1,100 RPM (88% of Max) |
|
Torque Rise |
28% |
|
Transmission Type |
Mechanical or Powershift, 30+15 (5 Gears, 3 Ranges with Splitter) or 45+45 (5 Gears, 3 Ranges, 3 Powershift Steps HML), Optional Hydraulic Reverse Shuttle with Stop&Go and ComfortClutch, Min Speed 246 m/h, Max Speed 40 km/h ECO |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
Optional ActiveDrive Front Suspension (Adaptive-Damping, Self-Levelling, Anti-Dive, Anti-Roll, DTC), Pneumatic Suspended Seat (Optional) |
|
Braking System |
4-Wheel Braking, Optional Hydraulic Trailer Brake |
|
Steering |
Independent Steering Pump, Optional Auto4WD |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres |
300/70 R20 (Front), 420/70 R28 (Rear) |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 1000 RPM, Optional Groundspeed PTO, Optional Front PTO 1000, Electrohydraulic Engagement |
|
Hydraulic System |
54 l/min Open Centre (Standard), Optional 64 l/min with Double Pump, 3 Rear Spool Valves with Flow Regulator, 1 Rear Free Return, Up to 4 Mid-Mounted Hydraulic Ways (Duplicated from Rear), Mid-Mounted Free Return |
|
Rear Lift |
Mechanical (Standard), Optional Electronic, 2,800 kg, Optional Hydraulic Right Tie Rod and Stabilizers |
|
Front Lift |
Optional, 1,500 kg |
|

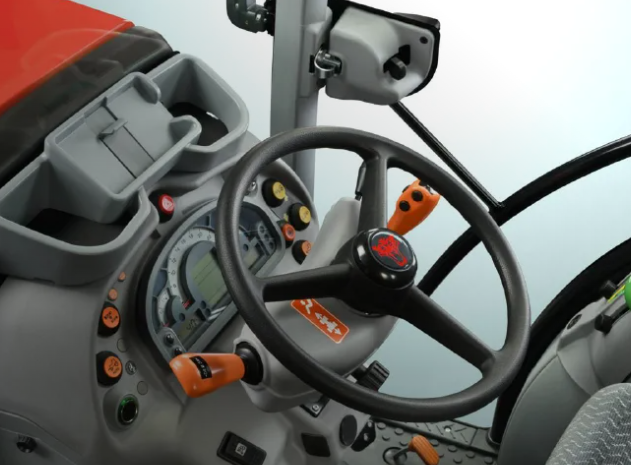

Cab Options |
4-Pillar Cab, Adjustable Steering Column, Active Carbon Filtration, Optional Air Conditioning, 4 Halogen Working Lights, Optional Pneumatic Suspended Seat, Optional Smartphone Holder with 2 USB Chargers |
|
Fuel Tank Capacity |
55 L (35 L with Front Lift/PTO), 95 L with Additional Tank (75 L with Front Lift/PTO), No AdBlue |
|
Weight |
2,995 kg, Total Admissible: 5,000 kg |
|
Wheelbase |
2,011 mm |
|
Length |
3,680 mm |
|
Height |
2,396 mm (Max) |
|
Width |
1,624 mm |
