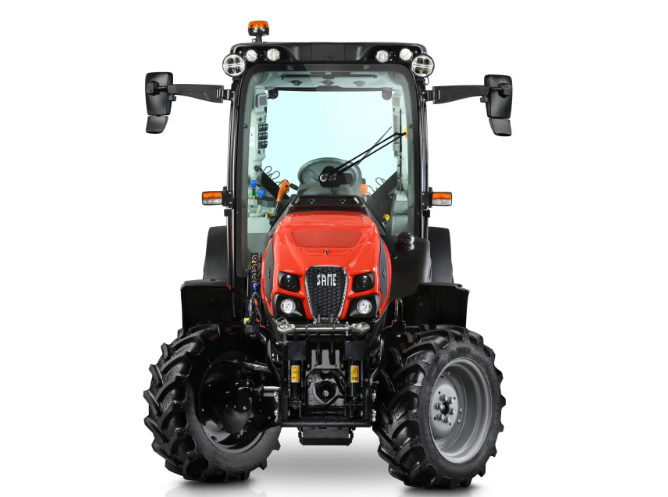

SAME Frutteto 100 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Frutteto 100 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |
Orchards, Vineyards, Vegetable Production |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

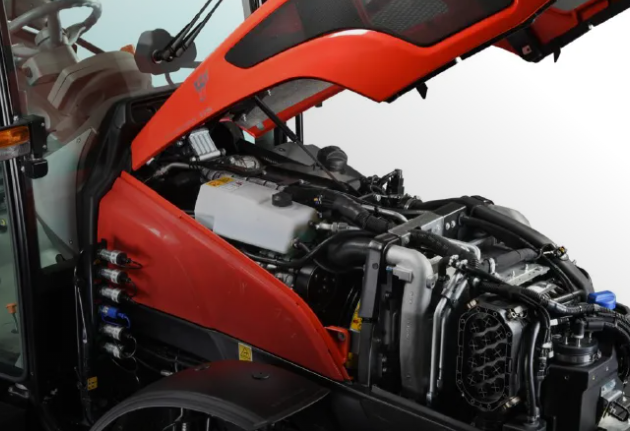

FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, PowerCore Air Filter, Viscostatic Fan, Stage V, DOC+DPF+SCR |
|
Rated Horsepower |
71.1 kW / 97 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
75 kW / 102 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
417 Nm @ 1,400 RPM |
|
Transmission Type |
Mechanical (12+12 or 24+12 with Splitter, 24+24 with Hi-Lo) or Powershift (15+15, 30+30 with Hi-Lo, 45+45 with HML), 40 km/h ECO, Min Speed 203 m/h (170 m/h with Smallest Tyres), Stop&Go, ComfortClutch, SenseClutch |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
Hydro Silent-Block Cab Suspension, Optional ActiveDrive Front Axle (Adaptive-Damping, Self-Levelling, Anti-Dive, Anti-Roll, DTC), Optional Pneumatic Seat Suspension |
|
Braking System |
All-Wheel Wet Disc Brakes, Optional Hydraulic Trailer Brake |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
Frutteto: 300/70 R20 / 420/70 R28; Frutteto S: 280/70 R18 / 380/70 R28; Frutteto V: 180/95 R16 / 280/85 R24 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 1000, Optional Groundspeed PTO, Optional Front PTO 1000, Auto PTO |
|
Hydraulic System |
56 l/min (Standard) or 68 l/min (Double Pump), 2/3 Rear Spool Valves, 2/4/5 Mid-Mounted Couplers (Optional), Free Return, Independent Steering Pump 40 l/min, Optional Joystick Control |
|
Rear Lift |
Electronic, 3,130 kg (Frutteto) or 2,600 kg (S/V), Optional 3,940 kg (Frutteto), Hydraulic Tie Rod and Stabilizers (Optional), External Controls |
|
Front Lift |
Optional, 1,500 kg, Foldable Arms |
|
Cab Options |
4-Pillar Flat-Floor Cab, Hydro Silent-Block Suspension, Optional Cat 4 Filtration, Up to 6 LED Work Lights, Bluetooth Radio, CTM Connectivity, Adjustable Steering Column, Liftable Rear Roof, Smartphone Holder with USB |
|
Fuel Tank Capacity |
Frutteto: 81 L (61 L with Front Lift/PTO), 100 L XL; S/V: 75 L (55 L with Front Lift/PTO), 100 L XL; 13 L AdBlue |
|
Weight |
Frutteto: 3,290-3,880 kg; S: 3,265-3,865 kg; V: 3,180-3,690 kg; Total Admissible: 5,200 kg (Frutteto), 5,000 kg (S/V) |
|
Wheelbase |
Frutteto: 2,044 mm; S/V: 2,086 mm |
|
Length |
Frutteto/S: 3,670 mm; V: 3,670 mm |
|
Height |
Frutteto: 2,520 mm; S: 2,495 mm; V: 2,395 mm |
|
Height at Bonnet |
Frutteto/S: 1,475 mm; V: 1,440 mm |
|
Width |
Frutteto: 1,624 mm; S: 1,380 mm; V: 1,166 mm |
