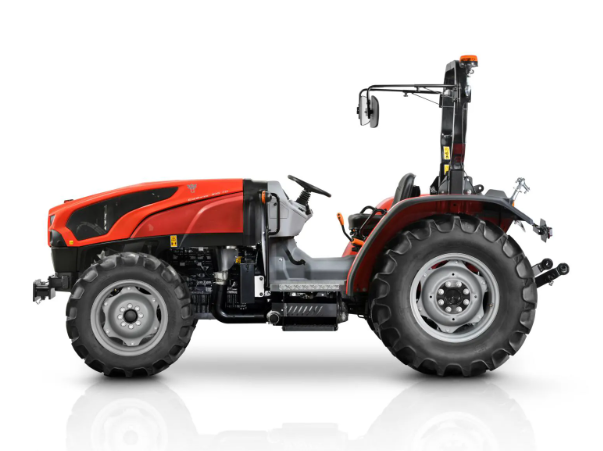

SAME Explorer TB 105 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Explorer TB 105 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |

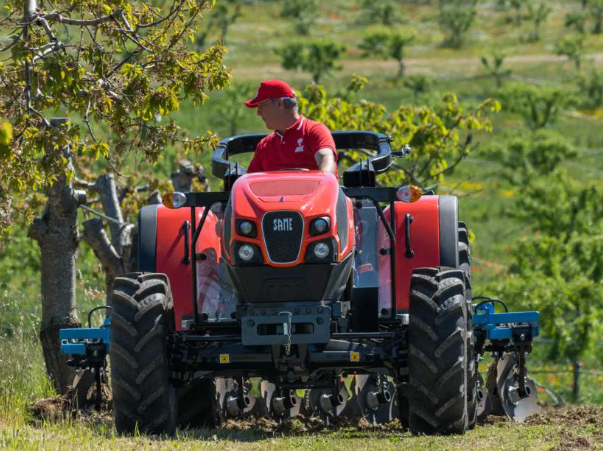

Olive Groves, Low-Density Fruit Orchards, Tunnel Greenhouses, Hilly and Mountainous Terrain |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, Viscostatic Fan, Stage V, DOC+DPF+SCR |
|
Rated Horsepower |
74 kW / 101 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
78 kW / 106 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
433 Nm @ 1,400 RPM |
|
Transmission Type |
Mechanical (10+10, 20+20 with Supercreeper or Hi-Lo) or Powershift (20+20, 40+40 with Hi-Lo), 40 km/h ECO @ 1,990 RPM, Stop&Go, ComfortClutch, Hydraulic PowerShuttle (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
Silent-Block Platform Suspension, Mechanical Seat Suspension (Standard), Optional Pneumatic Seat Suspension |
|
Braking System |
All-Wheel Wet Disc Brakes, Mechanical Parking Brake, Optional Hydraulic Trailer Brake with Dual Mode Function |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
300/70 R20 / 420/70 R24 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 1000/1000ECO, Optional Groundspeed PTO with Independent Shaft, Optional Front PTO 1000 |
|
Hydraulic System |
55 l/min (Main Pump), Separate Steering Pump, 2 Spool Valves (Standard), 3 Spool Valves (Optional), Push-Pull Quick Connectors, Oil Drip Collection Tray |
|
Rear Lift |
3,600 kg (Standard), 4,525 kg (Optional), Category II, Conventional or Quick Hitch Couplers, External Operation on Rear Fenders |
|
Front Lift |
Optional, 2,100 kg |
|
Cab Options |
Platform with Tunnel, 2-Post Foldable Safety Frame (Partial or Full Folding), Silent-Block Suspension, Height-Adjustable Steering Column, 2 Repeater/Work Lights on Dashboard, 1 LED Beacon Light, LED Driving Light, Large Rear Mirrors, High-Density Polycarbonate Guards |
|
Fuel Tank Capacity |
85 L (Diesel), 10 L (AdBlue) |
|
Weight |
3,400 kg, Total Admissible: 6,400 kg |
|
Wheelbase |
2,400 mm |
|
Length |
4,117 mm (Max) |
|
Height |
2,395 mm (ROPS) |
|
Height at Bonnet |
1,470 mm |
|
Height at Mudguards |
1,364 mm |
|
Width |
1,940 mm |
