SAME Explorer 125 – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Explorer 125 |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mixed Farming, Row Crop, Grassland, Livestock, Front Loader, Transport, Municipal Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, PowerCore Air Filter, Viscostatic Fan, Stage V |
|
Rated Horsepower |
88.2 kW / 120 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
93 kW / 126 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
517 Nm @ 1,400 RPM |
|
Torque at ECO PTO |
505 Nm @ 1,600 RPM, 115 HP |
|
Torque Rise |
35% |
|
Transmission Type |
Mechanical (10+10 or 20+20 with Creeper/Underdrive) or Powershift (Hi-Lo: 20+20 or 40+40 with Creeper/Underdrive; HML: 30+30 or 60+60 with Creeper/Underdrive, APS), 40 km/h at Economy Engine Speed, Optional PowerShuttle with Stop&Go and Adjustable Response |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
TopVision Cab with Hydro Silent-Block Mounts (40% Vibration Reduction), Optional Pneumatic Suspended Seat |
|
Braking System |
All-Wheel Braking, Mechanical Parking Brake, Optional Hydraulic Parking Brake (HPB, 250% Increased Capacity), Optional Hydraulic or Pneumatic Trailer Brake |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
480/70 R34 (Reference), Optional Narrow: 270/95 R32 / 270/95 R46, Municipal: 400/80 R24 / 480/80 R34 |
|
Track Setting (Rear with Narrow Tyres) |
1,496-2,008 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, Multi-Disc Wet Clutch, 540/540E/1000/1000E, Optional Groundspeed PTO with Independent Shaft, Optional Front PTO 1000, Optional Auto PTO with Electronic Rear Lift, External Control on Rear Mudguard |
|
Hydraulic System |
Single Pump 55 l/min (Standard) or Double Pump 90 l/min On-Demand (Optional), 2/3/4 Rear Spool Valves with Mechanical Control, Optional 2-Way 25 l/min On/Off Distributor (Up to 8 Rear Couplers), Independent Steering Pump 40 l/min, Free Return |
|
Rear Lift |
Mechanical (Standard) or Electronic (Optional, with Height Limit, Lowering Speed Regulation, Vibration Damping), Cat II, 4,855 kg (Standard), 5,410 kg (Optional), External Control on Mudguards |
|
Front Lift |
Optional, 2,100 kg |
|
Cab Options |

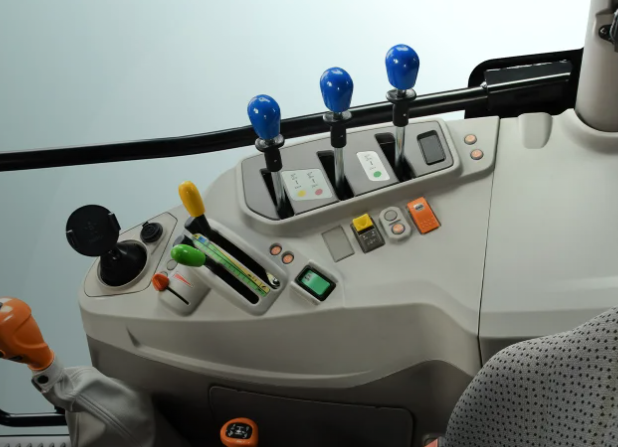

TopVision 4-Pillar Cab, Hydro Silent-Block Mounts, Tilt/Telescopic Steering, Pneumatic Suspended Seat, Optional Passenger Seat with Seat Belt, Manual A/C, Optional Activated Carbon Air Filter, DAB Radio with Bluetooth/USB, Smartphone/Cup Holders, Up to 12 LED Work Lights, Optional High Visibility FOPS Roof, Openable Front Windows, Bracket for External Monitor |
|
Fuel Tank Capacity |
145 L (Diesel), 10 L (AdBlue) |
|
Weight |
4,350 kg (Unladen), 7,500 kg (Total Admissible) |
|
Wheelbase |
2,400 mm |
|
Length |
4,436 mm (Max) |
|
Width |
2,209 mm (with 480/70 R34) |
