SAME Dorado Natural 70 – 4WD Utility Tractor

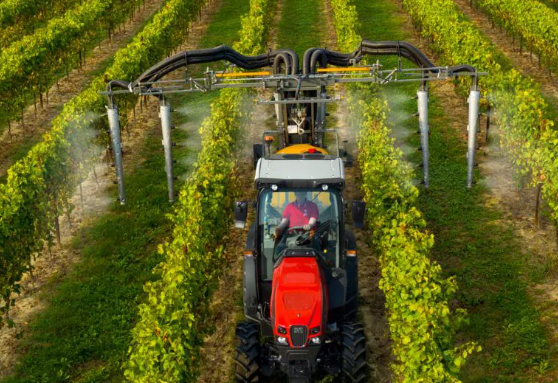

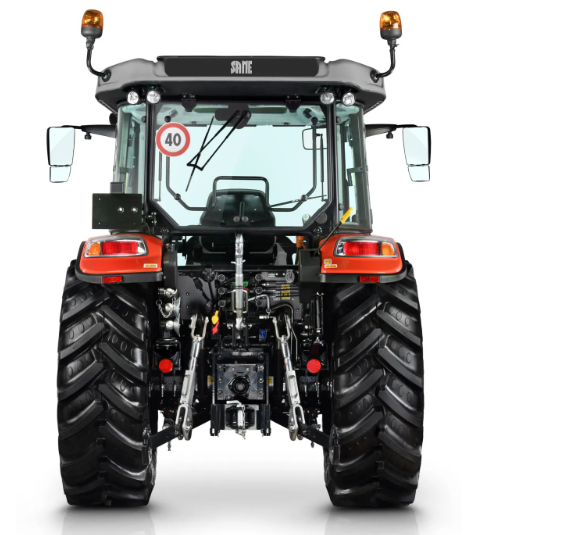

Images:

1

2

Specifications

Specification	Details
Tractor Model	Dorado Natural 70
Vehicle Category	Utility Tractor
Fuel Type	Diesel
Application	Open Field, Greenhouses, Stables, Orchards, Vineyards

Frame & Drivetrain

Specification	Details
Engine	FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler with Waste-Gate, PowerCore 2-Stage Air Filter (Optional Dust Ejector), Viscostatic Fan, Stage V, DOC+DPF
Rated Horsepower	48 kW / 65 HP @ 2,200 RPM (ECE R120)
Maximum Horsepower	48.9 kW / 66 HP @ 2,000 RPM (ECE R120)
Maximum Torque	297 Nm @ 1,500 RPM
Torque Rise	16%
Transmission Type	Mechanical (15+15 Standard, 30+15 with Splitter), 40 km/h ECO @ 1,800 RPM, Min Speed 298 m/h (Standard) or 245 m/h (Splitter)

Suspension & Brakes

Specification	Details
Frame	Standard Frame, Optional Light or Ready Kit for Front Loader
Suspension	Silent-Block Platform Suspension, Mechanical Seat Suspension (Standard), Optional Pneumatic Seat Suspension
Braking System	All-Wheel Wet Disc Brakes, Mechanical Parking Brake, Optional Hydraulic Dual Mode Trailer Brake

Wheels & Tyres

Specification	Details
Standard Tyres (Rear)	420/70 R30

Components & Features

Specification	Details
PTO Type	Mechanical Engagement, 540/540ECO (Standard), Optional 1000, Optional Groundspeed PTO
Hydraulic System	48 l/min (Standard) or 56 l/min (Optional), 2/3 Rear Spool Valves (Mechanical Control), Separate Steering Pump 20 l/min
Rear Lift	Mechanical with EasyLift, 2,500 kg (Standard), 3,500 kg (Optional with Additional Cylinders)
Cab Options	4-Pillar Cab, Silent-Block Suspension, Manual A/C, Adjustable Steering Column, Openable Front/Rear Windows, Optional High Visibility FOPS Roof, Analog/Digital Display
Fuel Tank Capacity	90 L (Diesel), No AdBlue
Weight	3,250 kg, 5,200 kg (Total Admissible)
Wheelbase	2,100 mm
Length	3,890 mm (Max)
Height	2,520 mm
Width	1,882 mm

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
