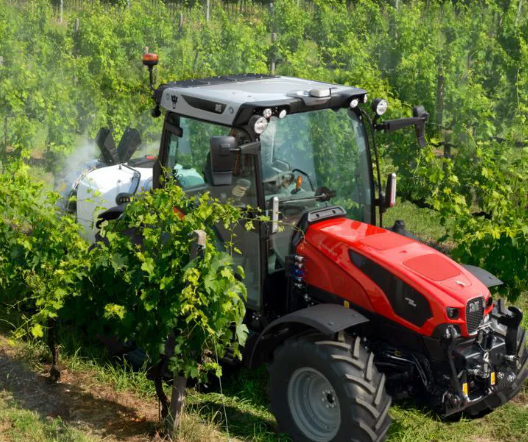

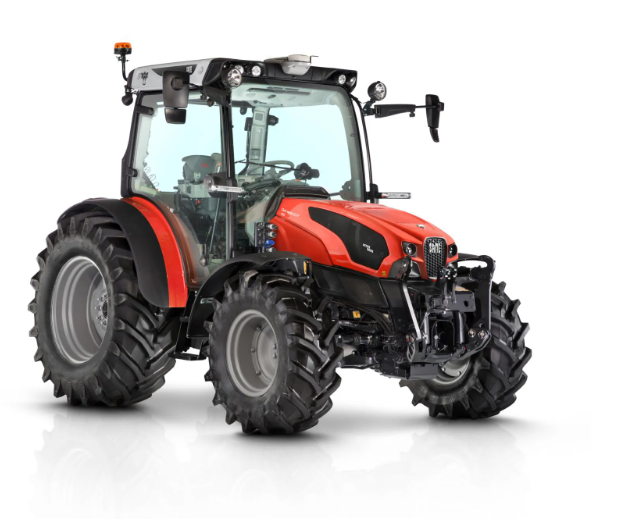

SAME Dorado CVT 95 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Dorado CVT 95 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Open Field, Orchards, Vineyards, Municipal Work, Haymaking, Crop Treatments, Fertilizer Application |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, PowerCore Air Filter, e-VISCO Cooling Fan, Stage V |
|
Rated Horsepower |
66.4 kW / 90 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
70 kW / 95 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
389 Nm @ 1,400 RPM |
|
Transmission Type |
CVT (Stepless, PowerZero, Auto/PTO/Manual Modes, 2 Cruise Controls per Direction, 40 km/h SuperECO @ 1,730 RPM, >90% Efficiency) |
|
Transmission Ratio |
1.3832 |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit for Front Loader |
|
Suspension |
Optional ActiveDrive Hydropneumatic Independent Front Suspension (with Anti-Dive, Anti-Roll, Damping Control), Hydro Silent-Block Cab Suspension, Pneumatic Seat Suspension |
|
Braking System |
All-Wheel Braking, Hydraulic Parking Brake (HPB), Optional Hydraulic Trailer Brake with DualMode, ABS Socket |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
280/85 R24 / 320/85 R36 (Min), 380/70 R20 / 540/65 R30 (Max), Optional PneuTrac Tyres |
|
Track Setting (Front/Rear) |
1,500 mm / 1,540 mm (Flange to Flange) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, Proportional Engagement, 540/540ECO/1000, Auto PTO, Optional Groundspeed PTO, Optional Front PTO 1000, External Control on Rear Mudguards |
|
Hydraulic System |
84 l/min (Standard) or 100 l/min Load Sensing @ 1,850 RPM (Optional), 3-5 Rear Spool Valves (Electronic, Adjustable Time/Flow), Optional 2/4 Mid-Mounted Couplers, Optional 2 Front Couplers, Free Return, Power Beyond, Separate Steering Pump 42 l/min |
|
Rear Lift |
Electronic Control, Oscillation Damping, Cat II, 4,310 kg (Standard), 3,660 kg (Compact 3-Point Linkage), Optional Hydraulic Tie Rod and Stabilizers, External Operation on Rear Fenders |
|
Front Lift |
Optional, 2,100 kg, Foldable Lower Link Arms |
|
Cab Options |
4-Pillar Cab, Hydro Silent-Block Suspension, MaxCom Armrest, Air Conditioning, Optional Cat 4 Filtration (PPE for Crop Treatments), Optional Bluetooth Radio, Up to 8 LED Work Lights, Optional Up to 2 Rear Cameras, Optional iMonitor 8” with ISOBUS, AutoTurn, XTEND, VRC, SC (200 Sections), SR20 RTK Receiver, CTM Connectivity, Comfortip Professional |
|
Fuel Tank Capacity |
95 L (Standard), 115 L (Optional), 13 L (AdBlue) |
|
Weight |
4,210 kg (Unladen), 5,800 kg (Max Permissible) |
|
Wheelbase |
2,271 mm |
|
Length |
4,065 mm |
|
Height |
2,576 mm (Max) |
|
Width |
1,745-2,180 mm |
|
Ground Clearance |
406 mm |
