SAME Dorado 75 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Dorado 75 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Open Field, Orchards, Vineyards, Hops Cultivation, Ground Care, Hilly/Mountainous Terrain |
Frame & Drivetrain
|
Specification |
Details |
|

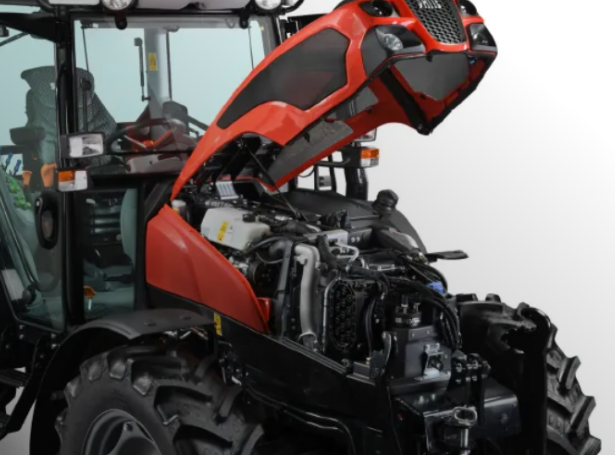

Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, PowerCore Air Filter, Viscostatic Fan, Stage V, HVO Certified, No AdBlue |
|
Rated Horsepower |
54.8 kW / 74 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
55.4 kW / 75 HP @ 2,000 RPM (ECE R120) |
|
Transmission Type |
Mechanical (LS: 30+15 with Creeper) or Powershift (GS: 30+15 or 45+45 with HML 3-Stage, ComfortClutch, Stop&Go, SenseClutch with 5 Settings), 40 km/h ECO @ 1,870 RPM, Overspeed |
|
Transmission Ratio |
1.3830 |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Monolithic Chassis, Optional Light or Ready Kit for Front Loader (Solid 35-18, 38-20, FZ 36-20.01) |
|
Suspension |
Silent-Block Cab Suspension, Mechanical or Pneumatic Seat Suspension |
|
Braking System |
All-Wheel Wet Disc Brakes, Mechanical Parking Brake, Optional Hydraulic or Pneumatic Trailer Brake with DualMode, ABS Socket |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
320/70 R24 / 340/85 R36 (Min), 440/65 R20 / 600/60 R30 (Max), Optional PneuTrac Tyres, Waffle Rims Available |
|
Track Setting (Front/Rear) |
1,500 mm / 1,540 mm (Flange to Flange) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, 540/540ECO (Standard), Optional 1000, Optional Groundspeed PTO, Optional Front PTO 1000, Interchangeable Stub Shaft |
|
Hydraulic System |
54 l/min (Standard) or 64 l/min (Optional), 3 Rear Spool Valves (Mechanical Control), Free Return, Separate Steering Pump up to 45 l/min |
|
Rear Lift |
Mechanical or Electronic (Optional, with Oscillation Damping, Height Limit, Drop Rate Adjustment), Cat II, 3,000 kg (Standard), 3,600 kg (Optional), External Operation on Fenders |
|
Front Lift |
Optional, 2,100 kg |
|
Cab Options |
4-Pillar Pressurized Cab, Silent-Block Suspension, Air Conditioning, Mechanical or Pneumatic Seat Suspension, InfoCentre+ with 3.5” LCD and Gauges, Openable Windscreen, Optional High Visibility FOPS Roof, 4 Halogen or 4 LED Work Lights, Optional 2 LED Beacon Lights, Pre-Arrangement for Radio, Phone Holder, Storage Bins |
|
Fuel Tank Capacity |
85 L (Diesel), No AdBlue |
|
Weight |
3,575 kg (Unladen), 5,200 kg (Max Permissible) |
|
Wheelbase |
2,271 mm |
|
Length |
4,065 mm |
|
Height |
2,571 mm (Max) |
|
Width |
1,800-2,180 mm |
|
Ground Clearance |
406 mm |
