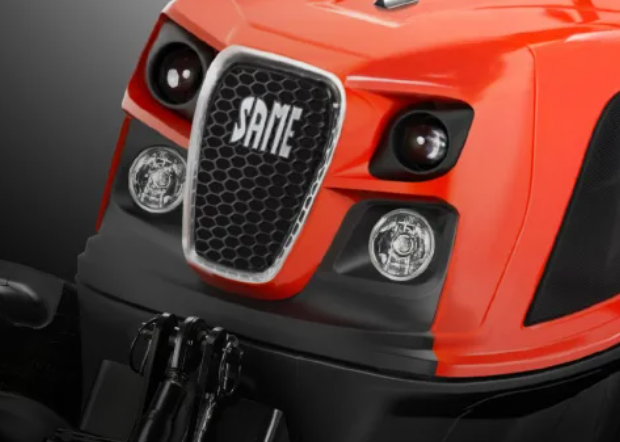

SAME Delfino 50 Basso – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Delfino 50 Basso |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Protected Crop Farming, Nurseries, Grounds Maintenance, Small Front Loaders |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Perkins, 4 Cylinders, 2,216 cm³, Common Rail, Turbo with Wastegate, Stage V, EGR+DOC+DPF |
|
Maximum Horsepower |
38 kW / 51 HP @ 2,600 RPM (ECE R120) |
|
Maximum Torque |
145 Nm @ 1,600 RPM |
|
Transmission Type |
Mechanical, 12+12 or 16+16 with Creeper, Synchronised, Min Speed 0.26 km/h, Max Speed 30 km/h at Economy Engine Speed |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Low-Profile Bonnet and Platform |
|
Suspension |
Silent-Block Mounts (ROPS Platform) |
|
Braking System |
4-Wheel Braking, Electrohydraulically Engaged Diff.Lock, Mechanically Engaged 4WD |
|
Steering |
Independent Steering Pump (15 l/min) |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres |
320/70 R20 (Rear) |
Components & Features
|
Specification |
Details |
|
PTO Type |
540 (Standard), Optional 540ECO/1000, Optional Groundspeed PTO, Optional Mid-Mounted PTO 2000, Optional Front PTO 1000 (Electrohydraulic Engagement) |
|
Hydraulic System |
30 l/min Open Centre, 4–6 Rear Hydraulic Couplers, 2 Front Hydraulic Couplers, 2 Mid-Mounted Hydraulic Couplers, 15 l/min Dedicated Steering Pump |
|
Rear Lift |
Mechanical with SAC (Automatic Control Station), 1,320 kg, Category I or II, Position/Draft/Mixed/Float Control Modes |
|
Front Lift |
Optional, 730 kg |
|
Driving Position |
2-Post Foldable ROPS, Silent-Block Mounted Platform, Adjustable Seat, Telescopic Steering Column, Digital Dashboard, Colour-Coded Controls |
|
Fuel Tank Capacity |
40 L |
|
Weight |
1,600 kg (ROPS) |
|
Wheelbase |
1,800 mm |
|
Height |
1,276 mm (ROPS Folded) |
|
Width |
1,375 mm |
