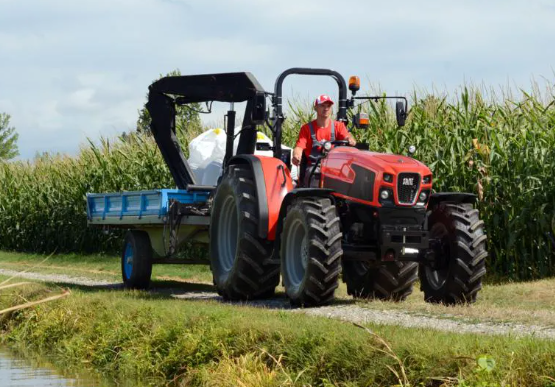

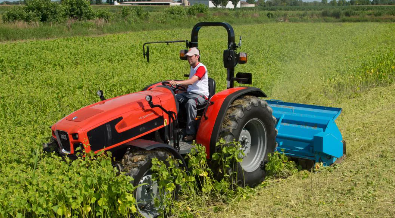

SAME Argon 70 – 2WD/4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Argon 70 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel, HVO Certified |
|
Application |
General Farming, Rice Paddies, Front Loader Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail @ 2,000 bar, Turbo Intercooler, Viscostatic Fan, Stage V, DOC+DPF |
|
Rated Horsepower |
48 kW / 65 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
48.9 kW / 66 HP @ 2,000 RPM (ECE R120) |
|
Maximum Torque |
297 Nm @ 1,400 RPM |
|
Torque Rise |
16% |
|
Transmission Type |
2WD: 12+3 (4 gears x 3 ranges, 30 km/h); 4WD: 15+15 (5 gears x 3 ranges, 40 km/h, Creeper Standard), 15+15 ECO (40 km/h @ 1,800 RPM), PowerShuttle 15+15 or 30+30 (with Hi-Lo, 40 km/h @ 1,800 RPM), SenseClutch, ComfortClutch, Stop&Go, Optional Watertight Seals |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Optional Light or Ready Kit with FOPS for Front Loader |
|
Suspension |
Mechanical Suspended Seat, Platform Mounted on Silent-Block |
|
Braking System |
4-Wheel Braking (4WD Models), Mechanical Parking Brake, Optional Hydraulic DualMode Trailer Brake |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Rear) |
16.9 R30” |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO (Standard), Optional 1000, Optional Groundspeed PTO, Mechanical Engagement (Standard), Electrohydraulic Engagement with PowerShuttle |
|
Hydraulic System |
48 l/min (Standard) or 56 l/min (Optional), 1/2/3 Rear Spool Valves, Flow Regulator, Dedicated Steering Pump |
|
Rear Lift |
Mechanical with EasyLift, 2,500 kg (Standard), 3,500 kg (Optional with 2 Assistor Rams), Optional Quick Hitches |
|
Cab Options |
Platform with Low-Profile Centre Tunnel, 2-Pillar Partially Folding Roll-Bar, Optional Sun Roof Canopy (FOPS-Compliant), Up to 5 Work Lights, Telescopic Steering Column, Lateral Controls Layout |
|
Fuel Tank Capacity |
75 L (Diesel) |
|
Weight |
2,750 kg (2WD), 2,950 kg (4WD), Total Admissible: 4,000 kg (2WD), 5,200 kg (4WD) |
|
Wheelbase |
2,166 mm (2WD), 2,100 mm (4WD) |
|
Length |
3,860 mm (Max) |
|
Height |
2,498 mm |
|
Height at Safety Frame |
1,798 mm (Centre Rear Axle to Safety Frame) |
|
Width |
1,839 mm (Max) |
