2025 Salsa Timberjack XT Z5 27.5+ – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Timberjack XT Z5 27.5+ |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, bikepacking |
|
Starting Price (2025) |
$1,999.99 USD (regular $2,899.00 USD) |
|
Color Options |
Purple |
|
Sizes |
X-Small, Small, Medium, Large, X-Large |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Timberjack Alloy V2, 6061-T6 aluminum, double- and triple-butted, internal routing, 12x148mm thru-axle, Alternator 2.0 Dropouts |
|
Fork |

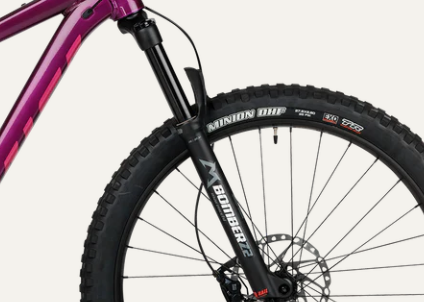

Marzocchi Z5, Air, Rail, 130mm travel, 543mm axle-to-crown, 44mm offset, 15x110mm thru-axle |
|
Drivetrain Compatibility |
Shimano SLX/XT, 1x12-speed |
|
Dropouts |
15x110mm (F, M15x1.5, TL=9, thru-axle), 12x148mm (R, M12 x 180L, TP=1.5, TL=20, thru-axle), Alternator 2.0 Dropouts |
|
Crank |
Shimano SLX M7100, 30t |
|
Chain |
Shimano SLX M7100 |
|
Rear Derailleur |
Shimano XT M8100 SGS |
|
Shifters |
Shimano XT M8100 I-SPEC EV |
|
Cassette |
Shimano XT M8100-12, 10–51t, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Volt 250 Steel |
|
Cargo Capacity |
Top tube mount (Salsa EXP Series Direct Mount Top Tube Bag), one pair accessory mounts, one pair downtube Three-Pack mount (XS: downtube only; SM–XL: two bottle mounts), rear rack mounts (requires Salsa Alternator Rack and Rack-Lock), molded frame protection, Alternator 2.0 Dropouts (adjustable chainstay 420–437mm) |
|
Wheels/Tyres |
WTB ST i40 32h 27.5" rim, Shimano MT400-B 15x110mm hub (F), Shimano MT410-B Micro Spline 12x148mm hub (R), Maxxis Minion DHF 27.5 x 2.8" EXO TR (F), Maxxis Rekon 27.5 x 2.8" EXO TR (R) |
|
Brakes |
Shimano SLX M7120 four-piston, IS mount (180mm max), Shimano RT64 Center Lock rotors (180mm) |
|
Brake Levers |
Shimano SLX M7120 |
|
Handlebar |
Race Face Chester 35 |
|
Stem |
Salsa Guide Trail |
|
Headset |
FSA Orbit 1.5E ACB, ZS44 (upper), ZS56 (lower) |
|
Saddle |
WTB Volt 250 Steel |
|
Seatpost |
TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adjustable, 30.9mm |
|
Seatpost Clamp |
35.0mm |
|
Grips |
Salsa File Tread |
|
Front Hub |
Shimano MT400-B, 15x110mm |
|
Rear Hub |
Shimano MT410-B Micro Spline, 12x148mm |
|
Rims |
WTB ST i40, 32h, 27.5" |
|
Exterior Features |
Top tube mount (Salsa EXP Series Direct Mount Top Tube Bag), one pair accessory mounts, one pair downtube Three-Pack mount (XS: downtube only; SM–XL: two bottle mounts), rear rack mounts (requires Salsa Alternator Rack and Rack-Lock), molded frame protection, Alternator 2.0 Dropouts (adjustable chainstay 420–437mm) |
|
Weight |
31 lb 7 oz (~14.2 kg) for Medium, with pedals |
