Specification

Details

Model

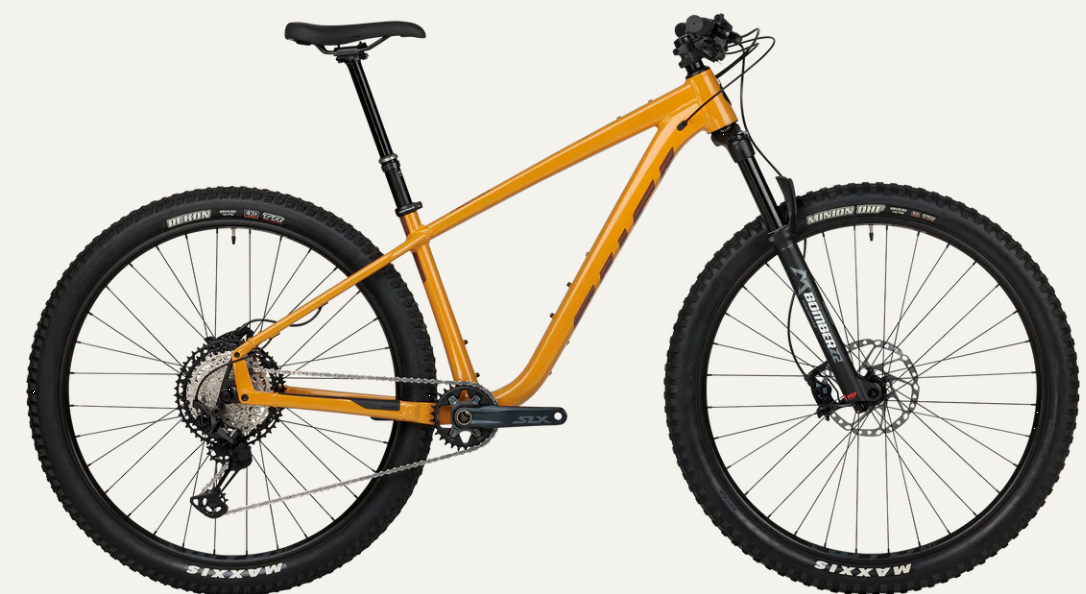

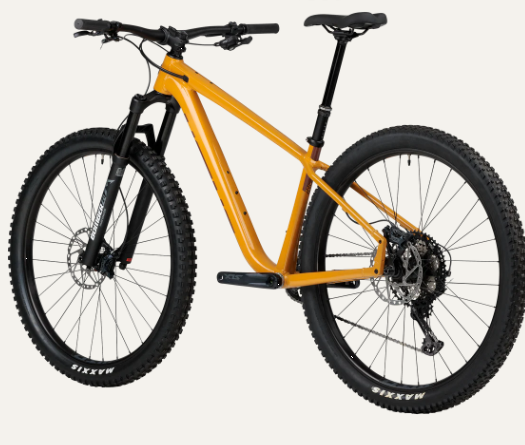

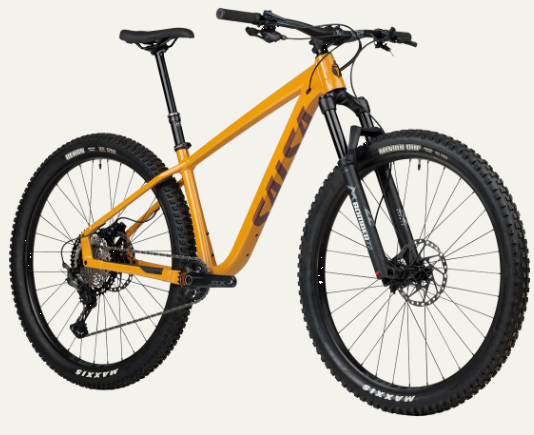

Timberjack XT Z2 29

Vehicle Category

Mountain Bike

Application

Trail riding, off-road adventures

Starting Price (2025)

$2,899.00 USD (Sale price: $1,999.99 USD)

Color Options

Yellow

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Timberjack Alloy V2, 6061-T6 aluminum, 148mm thru-axle, internal dropper post routing, Alternator 2.0 dropouts

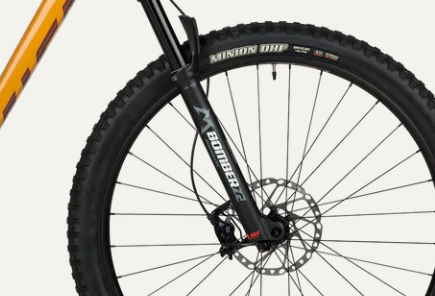

Fork

Marzocchi Z2 Rail, 130mm, 44mm offset, 543mm axle-to-crown

Drivetrain Compatibility

Shimano XT M8100, 1x12-speed

Dropouts

15x110mm (F, M12xP1.5x180mm thru-axle), 148x12mm (R, M12xP1.5x180mm, Alternator 2.0)

Crank

Shimano SLX M7100, 30t

Chain

Shimano SLX M7100

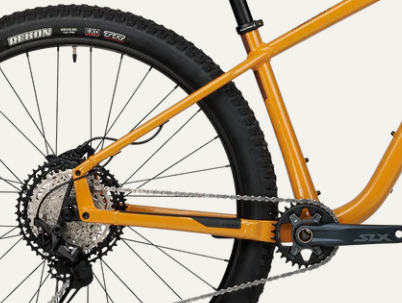

Rear Derailleur

Shimano XT M8100 SGS

Shifters

Shimano XT M8100 I-SPEC EV

Cassette

Shimano XT M8100-12, 10–51t, 12-speed

Specification

Details

Seating

WTB Volt 250, Steel

Cargo Capacity

Top tube mount, one pair accessory mounts, one pair downtube mounts (XS: one bottle mount; SM–XL: two bottle mounts), rear rack mounts (requires Salsa Rack-Lock)

Wheels/Tyres

WTB ST i30 32h 29" rim, Shimano MT400-B 15x110mm hub (F), Shimano MT410-B Micro Spline 12x148mm hub (R), Maxxis Minion DHF 29 x 2.6" (F), Maxxis Rekon 29 x 2.6" (R), EXO, TR

Wheel Size

29" front, 29" rear (alternate: 27.5" x 2.8")

Brakes

Shimano SLX M7120 four-piston, Center Lock, 180mm (F, R)

Brake Levers

Shimano SLX M7120

Handlebar

Race Face Chester 35

Stem

Salsa Guide Trail

Headset

FSA Orbit 1.5E ACB, ZS44 upper, ZS56 lower

Saddle

WTB Volt 250, Steel

Seatpost

TranzX YSI05 RAD+, Shimano MT500 lever, 30mm travel adjustable

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400-B, 15x110mm, 32h

Rear Hub

Shimano MT410-B Micro Spline, 12x148mm, 32h

Rims

WTB ST i30, 29", 32h

Spokes

Not specified (assumed stainless steel, black, consistent with Timberjack series)

Exterior Features

Top tube mount, one pair accessory mounts, one pair downtube mounts, rear rack mounts

Weight

30 lbs 14 oz (14.00 kg) for Medium (with pedals)
