Specification

Details

Model

Timberjack XT 29

Vehicle Category

Mountain Bike

Application

Trail riding, bikepacking

Starting Price (2025)

$2,499.00 USD (Sale: $2,199.99 USD)

Color Options

Blue

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Timberjack Alloy V2, 6061-T6 aluminum, 148x12mm thru-axle, internal dropper post routing, Alternator 2.0 dropouts

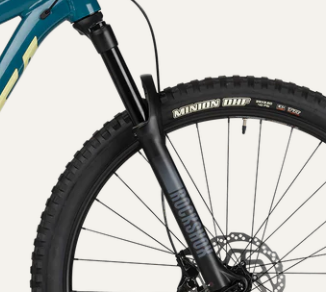

Fork

RockShox 35 Gold RL, 130mm, 44mm offset, 543mm axle-to-crown

Drivetrain Compatibility

Shimano XT M8100, 12-speed

Dropouts

15x110mm (F, thru-axle), 148x12mm (R, M12x180L, TP=1.5, TL=20, Alternator 2.0)

Crank

Shimano MT510, 30t

Chain

Shimano Deore M6100

Rear Derailleur

Shimano XT M8100 SGS

Shifters

Shimano SLX M7100 I-SPEC EV

Cassette

Shimano SLX M7100-12, 10–51t, 12-speed

Specification

Details

Seating

WTB Volt 250 Steel

Cargo Capacity

XS: one downtube Three-Pack mount, SM–XL: two bottle mounts (one Three-Pack), one downtube accessory mount, top tube mounts, rear rack mounts (requires Salsa Rack-Lock seatpost collar)

Wheels/Tyres

WTB ST i30 32h 29" rim, Shimano MT400-B 15x110mm hub (F), Shimano MT410-B Micro Spline 12x148mm hub (R), Maxxis Minion DHF 29 x 2.6" EXO TR (F), Maxxis Rekon 29 x 2.6" EXO TR (R)

Wheel Size

29" front, 29" rear (alternate: 27.5" x 2.8")

Brakes

Shimano M4120, four-piston, Center Lock, 180mm front, 160mm rear

Brake Levers

Shimano M4120

Handlebar

Race Face Chester 35

Stem

Salsa Guide Trail

Headset

FSA Orbit 1.5E ACB

Saddle

WTB Volt 250 Steel

Seatpost

TranzX YSI05 RAD+, Shimano MT500 lever, 30mm travel adj

Seatpost Clamp

35mm

Grips

Salsa File Tread

Front Hub

Shimano MT400-B, 15x110mm

Rear Hub

Shimano MT410-B Micro Spline, 12x148mm

Rims

WTB ST i30, 32h, 29"

Exterior Features

Top tube bag mounts, molded frame protection

Weight

31 lbs 13 oz (14.37 kg) for Medium (with pedals)
