Specification

Details

Model

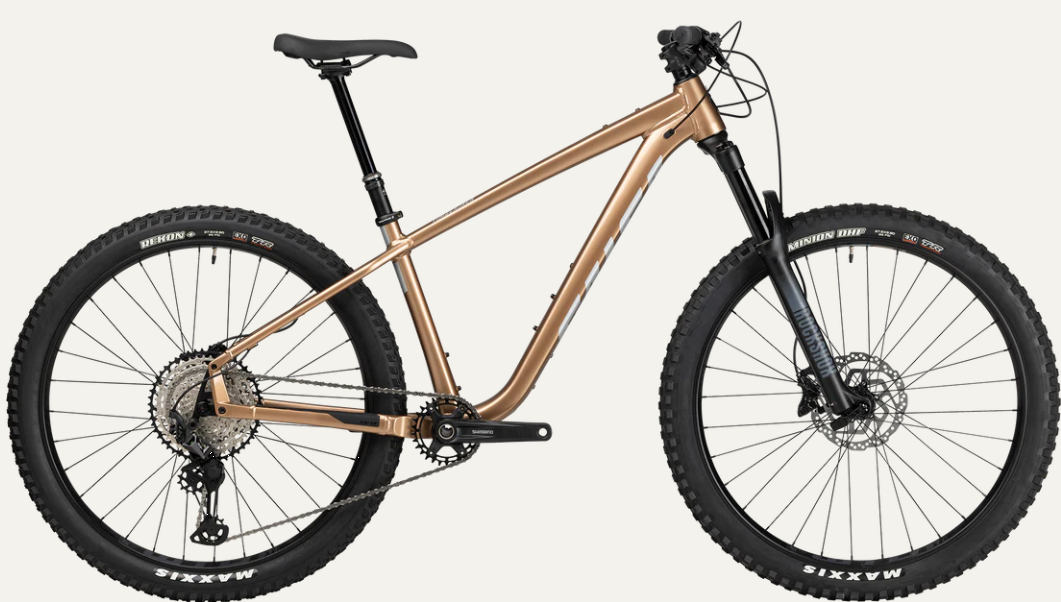

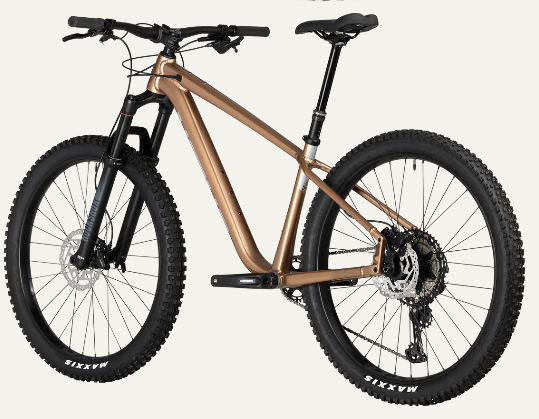

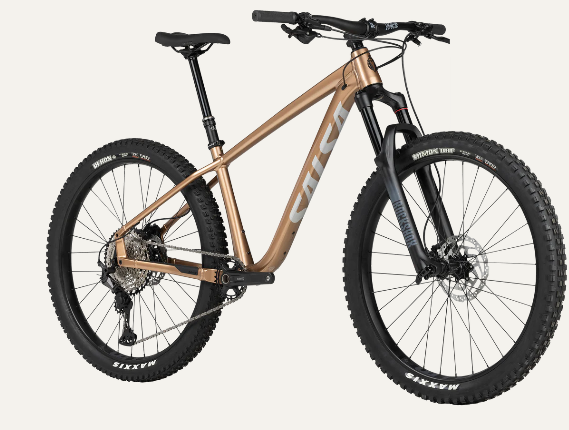

Timberjack XT 27.5+

Vehicle Category

Mountain Bike

Application

Trail riding, off-road adventures

Starting Price (2025)

$2,499.00 USD (Sale price: $1,999.99 USD)

Color Options

Copper

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Timberjack Alloy V2, 6061-T6 aluminum, 148mm thru-axle, internal dropper post routing, Alternator 2.0 dropouts

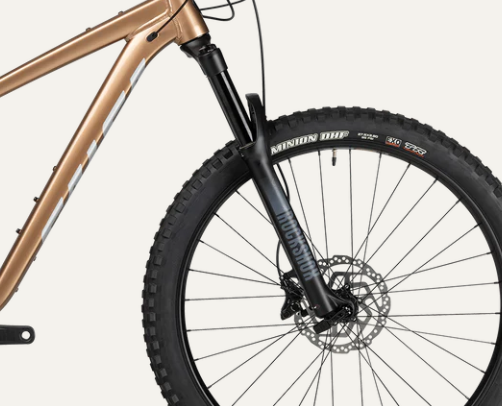

Fork

RockShox 35 Gold RL, 130mm, 44mm offset, 543mm axle-to-crown

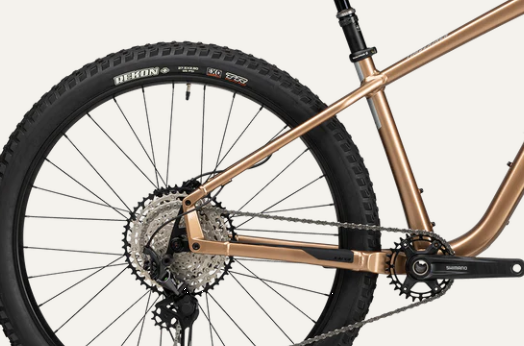

Drivetrain Compatibility

Shimano XT M8100, 1x12-speed

Dropouts

15x110mm (F, M12xP1.5x180mm thru-axle), 148x12mm (R, M12xP1.5x180mm, Alternator 2.0)

Crank

Shimano MT510, 30t

Chain

Shimano Deore M6100

Rear Derailleur

Shimano XT M8100 SGS

Shifters

Shimano SLX M7100 I-SPEC EV

Cassette

Shimano SLX M7100-12, 10–51t, 12-speed

Specification

Details

Seating

WTB Volt 250, Steel

Cargo Capacity

Top tube mount, one pair accessory mounts, one pair downtube mounts (XS: one bottle mount; SM–XL: two bottle mounts), rear rack mounts (requires Salsa Rack-Lock)

Wheels/Tyres

WTB ST i40 32h 27.5" rim, Shimano MT400-B 15x110mm hub (F), Shimano MT410-B Micro Spline 12x148mm hub (R), Maxxis Minion DHF 27.5 x 2.8" (F), Maxxis Rekon 27.5 x 2.8" (R), EXO, TR

Wheel Size

27.5" front, 27.5" rear (alternate: 29" x 2.1–2.6")

Brakes

Shimano M4120 four-piston, Center Lock, 180mm front, 160mm rear

Brake Levers

Shimano M4120

Handlebar

Race Face Chester 35

Stem

Salsa Guide Trail

Headset

FSA Orbit 1.5E ACB, ZS44 upper, ZS56 lower

Saddle

WTB Volt 250, Steel

Seatpost

TranzX YSI05 RAD+, Shimano MT500 lever, 30mm travel adjustable

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400-B, 15x110mm, 32h

Rear Hub

Shimano MT410-B Micro Spline, 12x148mm, 32h

Rims

WTB ST i40, 27.5", 32h

Exterior Features

Top tube mount, one pair accessory mounts, one pair downtube mounts, rear rack mounts

Weight

32 lbs 7 oz (14.71 kg) for Medium (with pedals)
