Specification

Details

Model

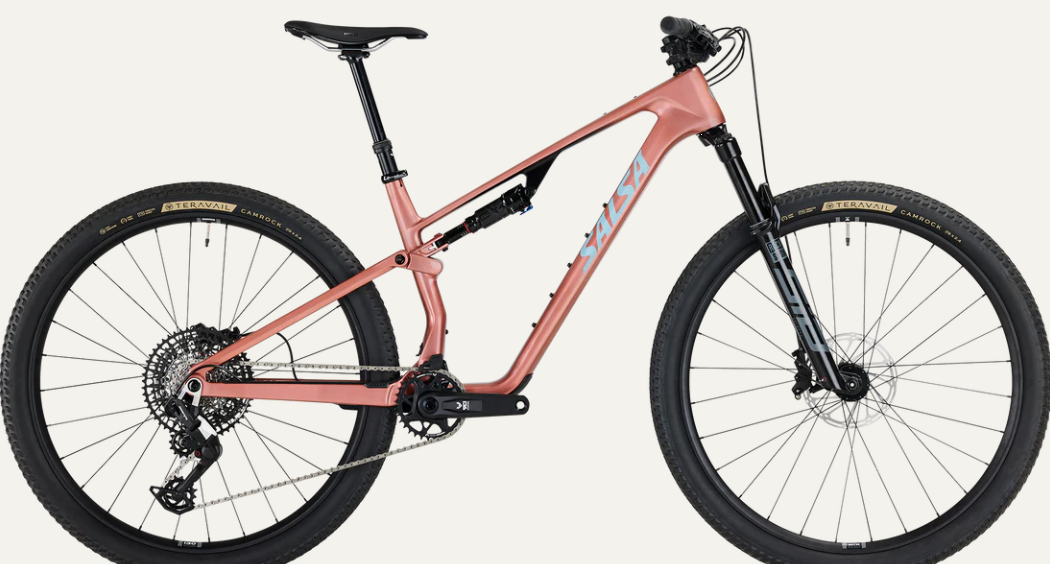

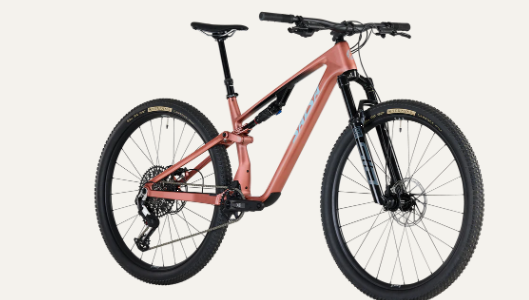

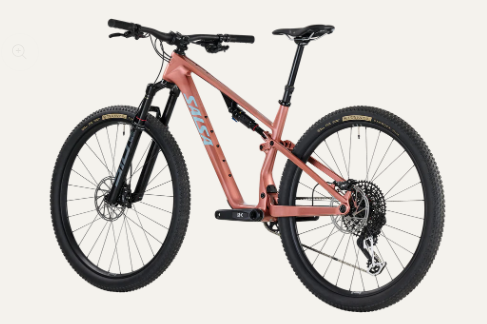

Spearfish C Eagle 90 Transmission

Vehicle Category

Mountain Bike

Application

Endurance and XC mountain biking

Starting Price (2025)

$5,399.00 USD

Color Options

Dusty Rose

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Spearfish Carbon, high-modulus carbon fiber frame, seatstays, and chainstays with 6061-T6 aluminum links, Split Pivot suspension, internal cable routing, 12x148mm spacing, SRAM UDH compatible

Fork

RockShox SID Select+ 2-position, 120mm, 15x110mm spacing, 44mm offset, 530mm axle-to-crown

Rear Shock

RockShox SIDLuxe Select+, 190x45mm, Ø8x20mm forward mount, Ø15mm rearward mount (no bushing)

Drivetrain Compatibility

SRAM Eagle 90 Transmission, 12-speed

Dropouts

15x110mm (F, Maxle Stealth: 15x158mm, TP=M15x1.5, TL=9mm), 12x148mm (R, 12x188mm, TP=1.0, TL=13mm), SRAM UDH compatible

Crank

SRAM Eagle 90, 32t with MRP 1x SL TR2 28-34t Direct Mount Guide

Chain

SRAM Eagle 70 Transmission Flattop

Rear Derailleur

SRAM Eagle 90 Transmission

Shifters

SRAM Eagle 90, MatchMaker X Clamp

Cassette

SRAM GX Eagle Transmission XS-1275, 10-52t, 12-speed

Specification

Details

Seating

WTB Silverado, Medium, Cromoly, DNAx

Cargo Capacity

Top tube mounts (Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount); XS–SM: two bottle mounts; MD–XL: three bottle mounts

Wheels/Tyres

WTB ASYM i30 TCS, 28h, WTB Frequency Sport 15x110mm hub (F), WTB Frequency Boost 12x148mm hub (R), Double-butted Pillar Stainless Steel spokes, black, Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included

Wheel Size

29" front, 29" rear

Brakes

SRAM DB8 Stealth, 74mm post mount, 180mm rotors (F, R)

Brake Levers

SRAM DB8 Stealth

Handlebar

Race Face Aeffect

Stem

Salsa 35.0 Guide Trail, 50mm

Headset

FSA Orbit 1.5E ZS NO.57E, ZS44/28.6 upper, ZS56/40 lower

Saddle

WTB Silverado, Medium, Cromoly, DNAx

Seatpost

TranzX YSI08 RAD+ Dropper Post w/ GL Stealth MMX Lever, 30.9mm, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel

Seatpost Clamp

35.4mm

Grips

WTB Wavelength Lock-On

Front Hub

WTB Frequency Sport, 15x110mm, 28h

Rear Hub

WTB Frequency Boost, 12x148mm, 28h

Rims

WTB ASYM i30 TCS, 28h

Spokes

Double-butted Pillar Stainless Steel, black

Exterior Features

Molded rubber down tube, seat tube, chainstay, and seatstay guards; top tube mounts (Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount); XS–SM: downtube accessory mount; MD–XL: three-pack downtube mount

Weight

28 lb 14 oz (13.15 kg) for Medium
