Specification

Details

Model

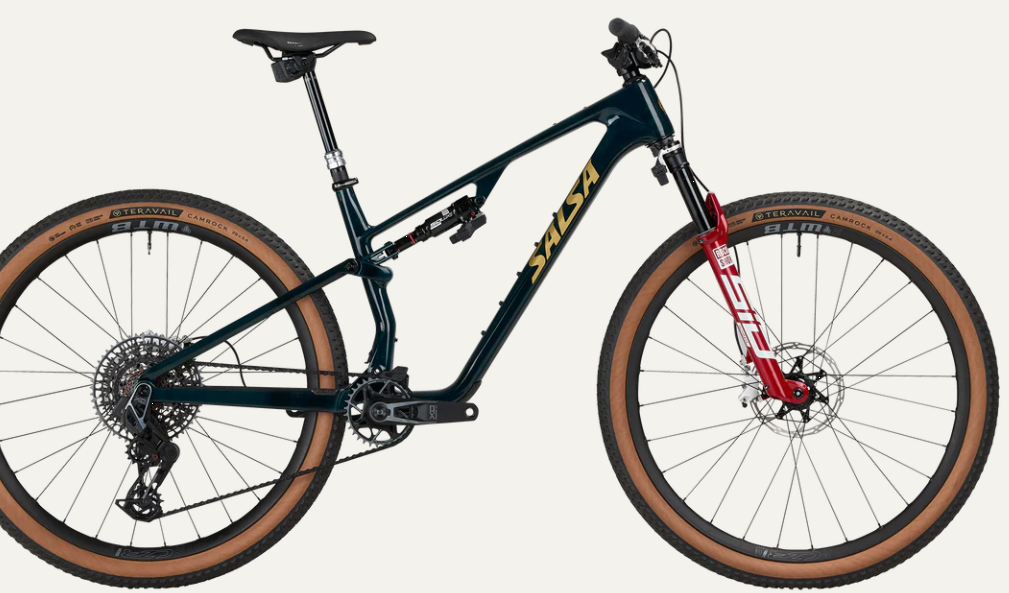

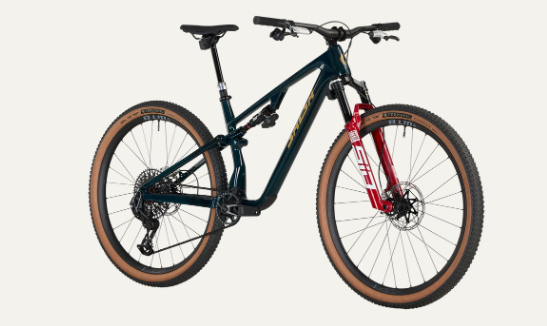

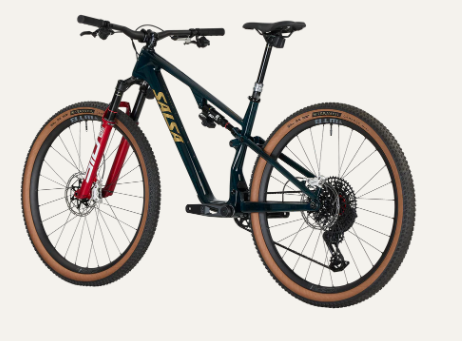

Spearfish C DLX X0 Transmission

Vehicle Category

Mountain Bike

Application

Endurance and XC mountain biking

Starting Price (2025)

$10,999.00 USD

Color Options

Midnight Carbon

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Spearfish Carbon Deluxe, ultra high-modulus carbon fiber frame, seatstays, and chainstays with 6061-T6 aluminum links, Split Pivot suspension, internal cable routing, 12x148mm spacing, SRAM UDH compatible

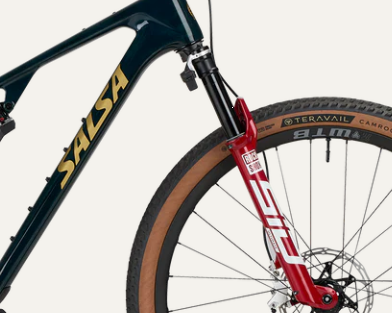

Fork

RockShox SID Ultimate Flight Attendant, 120mm, 15x110mm spacing, 44mm offset, 530mm axle-to-crown

Rear Shock

RockShox SIDLuxe Ultimate Flight Attendant, 190x45mm, Ø8x20mm forward mount, Ø15mm rearward mount (no bushing)

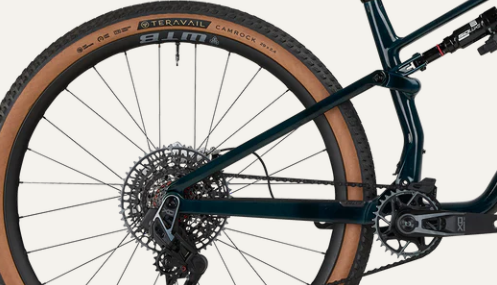

Drivetrain Compatibility

SRAM X0 Eagle Transmission, 12-speed

Dropouts

15x110mm (F, Maxle Stealth: 15x158mm, TP=M15x1.5, TL=9mm), 12x148mm (R, 12x188mm, TP=1.0, TL=13mm), SRAM UDH compatible

Crank

SRAM X0 Eagle Transmission Power Meter Crankset, 32t with MRP 1x SL TR2 28–34t Direct-Mount Guide

Chain

SRAM X0 Eagle Transmission Flattop

Rear Derailleur

SRAM X0 Eagle Transmission

Shifters

SRAM AXS Pod Rocker, Right and Left with MatchMaker X Clamps

Cassette

SRAM X0 Eagle Transmission XS-1295, 10-52t, 12-speed

Specification

Details

Seating

WTB Silverado, Medium, Steel SL, Fusion Form

Cargo Capacity

Top tube mounts (Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount); XS–SM: two bottle mounts; MD–XL: three bottle mounts

Wheels/Tyres

WTB CZR Trail Carbon i30, 28h, WTB Frequency 15x110mm hub (F), WTB Frequency 12x148mm hub (R), Double-butted spokes, Teravail Camrock 29x2.4", Light Trail casing, tan sidewall, WTB TCS Sealant included

Wheel Size

29" front, 29" rear

Brakes

SRAM Motive Ultimate Stealth, 4-piston, 74mm post mount, 180mm rotors (F, R)

Brake Levers

SRAM Motive Ultimate Stealth

Handlebar

Salsa Guide Carbon

Stem

Aluminum CNC, 40mm

Headset

FSA Orbit 1.5E ZS NO.57E, ZS44/28.6 upper, ZS56/40 lower

Saddle

WTB Silverado, Medium, Steel SL, Fusion Form

Seatpost

RockShox Reverb AXS, 30.9mm, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel

Seatpost Clamp

35.4mm

Grips

WTB Wavelength Lock-On

Front Hub

WTB Frequency, 15x110mm, 28h

Rear Hub

WTB Frequency, 12x148mm, 28h

Rims

WTB CZR Trail Carbon i30, 28h

Spokes

Double-butted

Exterior Features

Molded rubber down tube, seat tube, chainstay, and seatstay guards; top tube mounts (Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount); XS–SM: downtube accessory mount; MD–XL: three-pack downtube mount

Weight

26 lb 1 oz (11.82 kg) for Medium
