Specification

Details

Model

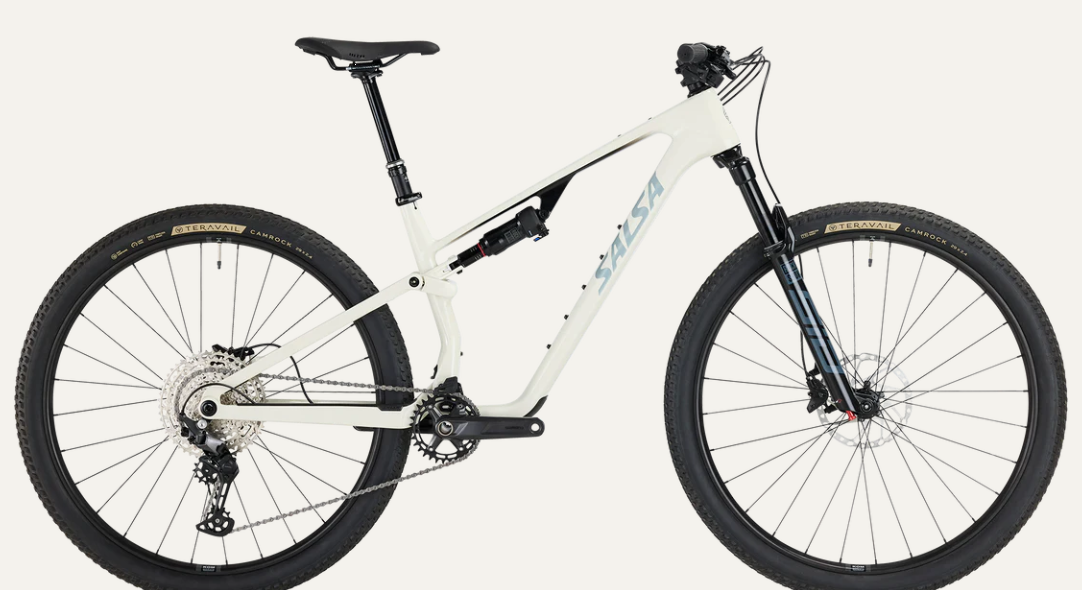

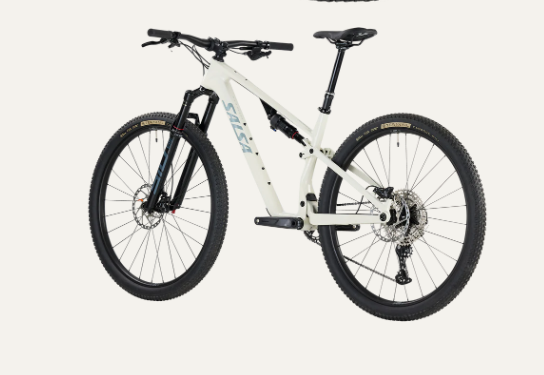

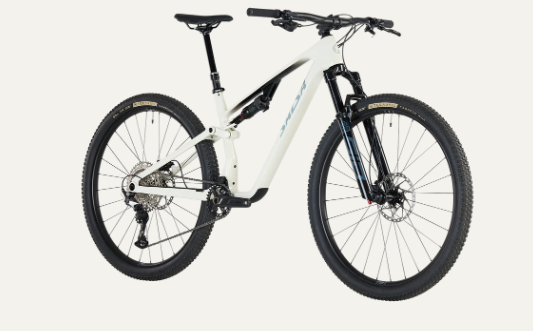

Spearfish C Deore 12

Vehicle Category

Mountain Bike

Application

Endurance and XC mountain biking

Starting Price (2025)

$3,999.00 USD

Color Options

Bone White

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

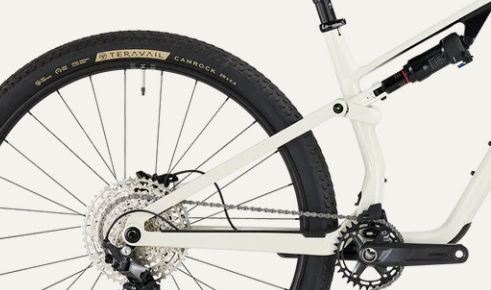

Spearfish Carbon, high-modulus carbon fiber frame, seatstays, and chainstays with 6061-T6 aluminum links, Split Pivot suspension, internal cable routing, 12x148mm spacing, SRAM UDH compatible

Fork

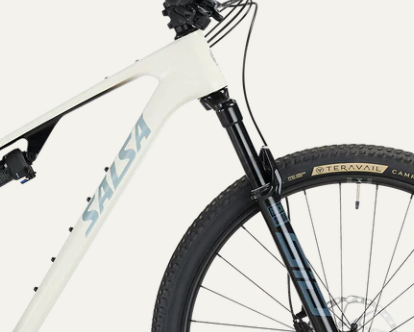

RockShox SID, 120mm, 15x110mm spacing, 44mm offset, 530mm axle-to-crown

Rear Shock

RockShox Deluxe Select+, 190x45mm, Ø8x20mm forward mount, Ø15mm rearward mount (no bushing)

Drivetrain Compatibility

Shimano Deore M6100, 12-speed

Dropouts

15x110mm (F, Maxle Stealth: 15x158mm, TP=M15x1.5, TL=9mm), 12x148mm (R, 12x188mm, TP=1.0, TL=13mm), SRAM UDH compatible

Crank

Shimano Deore MT512, 32t with MRP 1x SL TR2 28-34t Direct Mount Guide

Chain

Shimano Deore M6100, HYPERGLIDE+

Rear Derailleur

Shimano Deore M6100-SGS

Shifters

Shimano Deore M6100, I-Spec EV

Cassette

Shimano Deore M6100, 10–51t, 12-speed

Specification

Details

Seating

WTB Silverado, Medium, Cromoly, DNAx

Cargo Capacity

Top tube mounts (Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount); XS–SM: two bottle mounts; MD–XL: three bottle mounts

Wheels/Tyres

WTB KOM Team i30 TCS, 28h, Shimano TC500-15-B 15x110mm hub (F), Shimano TC500-MS-B 12x148mm hub (R), Butted stainless steel spokes, black, Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included

Wheel Size

29" front, 29" rear

Brakes

Shimano Deore MT-M410, 74mm post mount, 180mm rotors (F, R)

Brake Levers

Shimano Deore M4100

Handlebar

Alloy riser

Stem

Salsa 35.0 Guide Trail, 50mm

Headset

FSA Orbit 1.5E ZS NO.57E, ZS44/28.6 upper, ZS56/40 lower

Saddle

WTB Silverado, Medium, Cromoly, DNAx

Seatpost

TranzX YSI05 RAD+ Dropper Post w/ Shimano SL-MT500 I-Spec EV Lever, 30.9mm, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel

Seatpost Clamp

35.4mm

Grips

Salsa File Tread Lock-on

Front Hub

Shimano TC500-15-B, 15x110mm, 28h

Rear Hub

Shimano TC500-MS-B, 12x148mm, 28h

Rims

WTB KOM Team i30 TCS, 28h

Spokes

Butted stainless steel, black

Exterior Features

Molded rubber down tube, seat tube, chainstay, and seatstay guards; top tube mounts (Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount); XS–SM: downtube accessory mount; MD–XL: three-pack downtube mount

Weight

29 lb 13 oz (13.52 kg) for Medium
