Specification

Details

Model

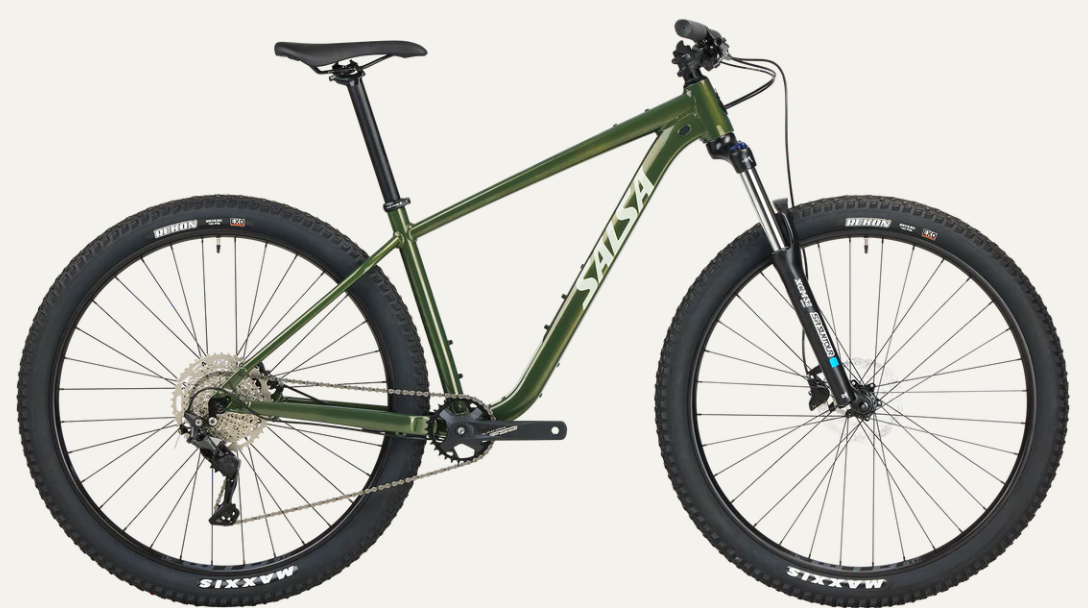

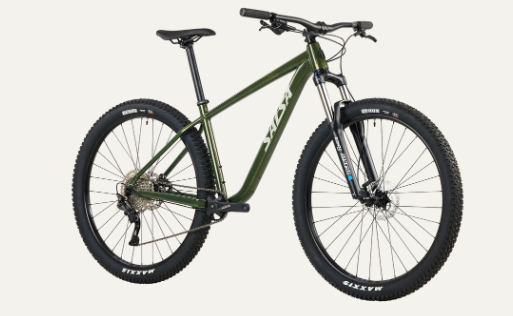

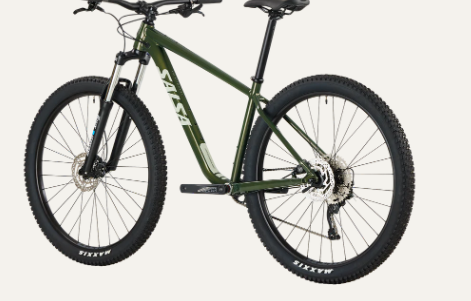

Rangefinder Deore Green 10 29

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$1,099.00 USD

Color Options

Dark Moss Green

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Rangefinder, 6061-T6 aluminum, 141x10mm QR, internal dropper post routing

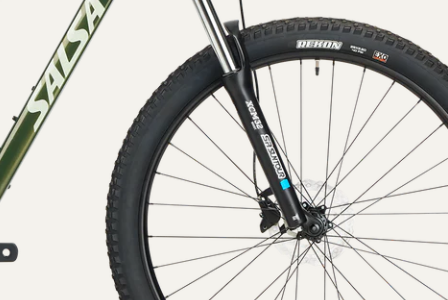

Fork

SR Suntour XCM32 Coil Boost NLO DS, 120mm, 46mm offset, 501mm axle-to-crown

Drivetrain Compatibility

Shimano Deore M4100, 10-speed

Dropouts

15x110mm (F, thru-axle), 141x10mm (R, quick-release)

Crank

FSA Alpha Drive, 30t, FSA 124.5mm bottom bracket

Chain

Shimano HG54

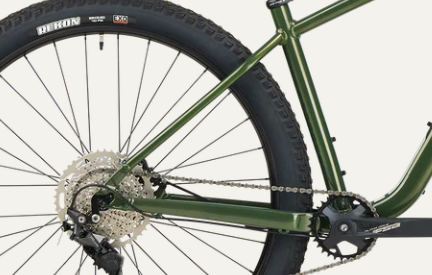

Rear Derailleur

Shimano Deore M5120 SGS

Shifters

Shimano Deore M4100

Cassette

Shimano Deore M4100, 11–46t, 10-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Two bottle mounts, one downtube accessory mount, top tube mounts, rear rack mounts (requires Salsa Post-Lock seatpost collar)

Wheels/Tyres

WTB ST i30 32h 29" rim, Shimano MT400-B 15x110mm TA hub (F), Shimano MT200-B 10x141mm QR hub (R), Maxxis Rekon 29 x 2.6", EXO, Wire Bead (F, R)

Wheel Size

29" front, 29" rear (alternate: 27.5" x 2.8–3.0")

Brakes

Shimano MT200, Center Lock, 160mm (F, R)

Brake Levers

Shimano MT200

Handlebar

Salsa Salt Flat 31.8, 750mm width XS–SM; Salsa Rustler 31.8, 800mm width M–XL

Stem

Salsa Guide 31.8, 60mm, 6°

Headset

FSA Orbit NO.57B 1.5 ZS

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

Salsa Guide 30.9, 0 offset

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400-B, 15x110mm TA

Rear Hub

Shimano MT200-B, 10x141mm QR

Rims

WTB ST i30, 32h, 29"

Exterior Features

Top tube bag mounts, rear rack mounts

Weight

32 lbs 8 oz (14.74 kg) for Medium (with tubes, no pedals)
