Specification

Details

Model

Rangefinder Deore 12 27.5+

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$1,499.00 USD (Sale: $1,299.99 USD)

Color Options

Dark Red

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Rangefinder Aluminum, 6061-T6 aluminum, 141x10mm QR, internal dropper post routing

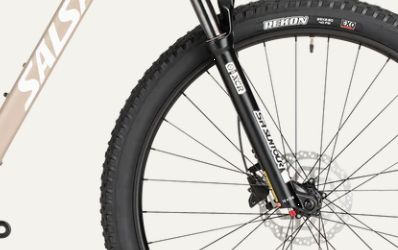

Fork

SR Suntour XCR34 Boost, Air, LOR, DS, 120mm OR RST Aerial 110-15, Air, TNL, 120mm, 46mm offset, 510mm axle-to-crown

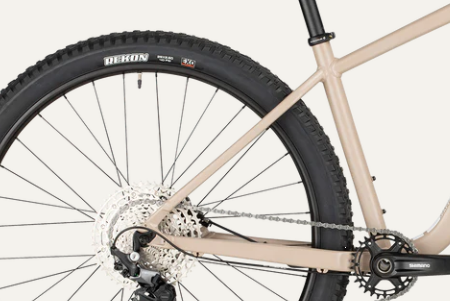

Drivetrain Compatibility

Shimano Deore M6100, 12-speed

Dropouts

15x110mm (F, thru-axle), 141x10mm (R, quick-release)

Crank

Shimano MT501, 30t, Shimano BB52 BSA bottom bracket

Chain

Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100 SGS

Shifters

Shimano Deore M6100

Cassette

Shimano Deore M6100, 10–51t, 12-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Two bottle mounts, one downtube accessory mount, top tube mounts, rear rack mounts (requires Salsa Post-Lock seatpost collar)

Wheels/Tyres

WTB ST i40 32h 27.5" rim, Shimano MT400 Center Lock 15x110mm TA hub (F), Shimano MT401 Center Lock 10x141mm QR hub (R), Maxxis Rekon 27.5 x 2.8", EXO, Wire Bead (not tubeless compatible) (F, R)

Wheel Size

27.5" front, 27.5" rear (alternate: 29" x 1.9–2.6")

Brakes

Shimano MT200 OR Promax DSK-925, Center Lock, 160mm (F, R)

Brake Levers

Shimano MT200 OR Promax DSK-925

Handlebar

Salsa Salt Flat 31.8, 750mm width XS–SM; Salsa Rustler 31.8, 800mm width M–XL

Stem

Salsa Guide 31.8, 60mm, 6°

Headset

FSA Orbit NO.57E 1.5 ZS

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

TranzX YSP18PLQ, 100 x 361mm XS–SM; 130 x 425mm MD–XL

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400 Center Lock, 15x110mm TA

Rear Hub

Shimano MT401 Center Lock, 10x141mm QR

Rims

WTB ST i40, 32h, 27.5"

Exterior Features

Top tube bag mounts, rear rack mounts

Weight

32 lbs 10 oz (14.76 kg) for Medium (with tubes, no pedals)
