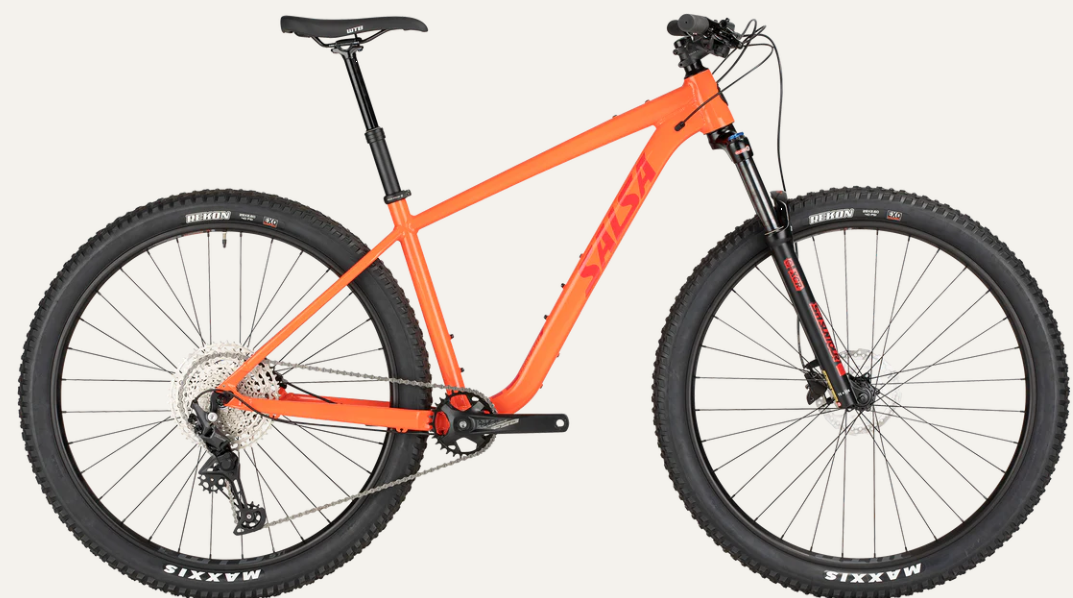

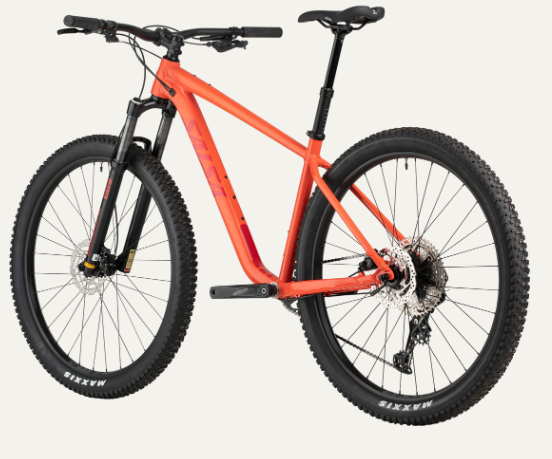

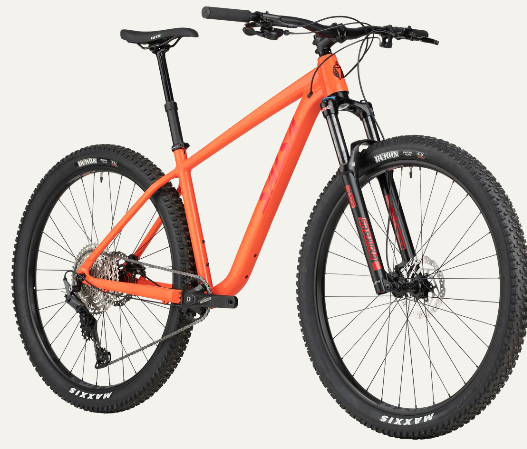

2024 Salsa Rangefinder Deore 11 29 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Rangefinder Deore 11 29 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$949.99 USD (regular $1,199.00 USD) |
|
Color Options |
Orange |
|
Sizes |
X-Small, Small, Medium, Large, X-Large |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Rangefinder Aluminum, 6061-T6 aluminum, internal cable housing, 10x141mm QR, FS2361 derailleur hanger |
|
Fork |
SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm -OR- RST Aerial 110-15, Air, MLC, 120 mm, 501mm axle-to-crown, 46mm offset, 15x110mm thru-axle |
|
Drivetrain Compatibility |
Shimano Deore M5100, 1x11-speed |
|
Dropouts |
15x110mm (F, thru-axle), 10x141mm (R, QR) |
|
Crank |
FSA Alpha Drive, 30t, FSA 124.5mm bottom bracket |
|
Chain |
Shimano HG601 |
|
Rear Derailleur |
Shimano Deore M5100 SGS |
|
Shifters |
Shimano Deore M5100 |
|
Cassette |
Shimano Deore M5100, 11–51t, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Volt Medium, Steel, 142 x 265 mm |
|
Cargo Capacity |
Top tube mount (Salsa EXP Series Direct-Mount Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 downtube accessory mount, rear rack mounts (requires Salsa Post-Lock 35.0mm seatpost collar), stealth dropper post routing |
|
Wheels/Tyres |
WTB ST i30 32h 29" rim, Shimano MT400 Center Lock 15x110mm hub (F), Shimano MT200 Center Lock 10x141mm QR hub (R), Maxxis Rekon 29 x 2.6", EXO, Wire Bead, not tubeless compatible (F/R) |
|
Brakes |
Shimano MT200 -OR- Promax DSK-925, 74mm post mount, Shimano RT10 Center Lock rotors (160mm) |
|
Brake Levers |
Shimano MT200 -OR- Promax DSK-925 |
|
Handlebar |
Salsa Salt Flat 31.8, 750mm (XS–SM); Salsa Rustler 31.8, 800mm (M–XL) |
|
Stem |
Salsa Guide 31.8, 60 mm |
|
Headset |
FSA Orbit NO.57B 1.5 ZS, ZS44 (upper), ZS56 (lower) |
|
Saddle |
WTB Volt Medium, Steel, 142 x 265 mm |
|
Seatpost |
TranzX YSP18PLQ, 100 x 361 mm (XS–SM), 130 x 425 mm (MD–XL), 30.9mm |
|
Seatpost Clamp |
35.0mm |
|
Grips |
Salsa File Tread |
|
Front Hub |
Shimano MT400 Center Lock, 15x110mm |
|
Rear Hub |
Shimano MT200 Center Lock, 10x141mm QR |
|
Rims |
WTB ST i30, 32h, 29" |
|
Exterior Features |
Top tube mount (Salsa EXP Series Direct-Mount Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 downtube accessory mount, rear rack mounts (requires Salsa Post-Lock 35.0mm seatpost collar), stealth dropper post routing |
|
Weight |
32 lb 1 oz (~14.5 kg) for Medium, with tubes, no pedals |
