Specification

Details

Model

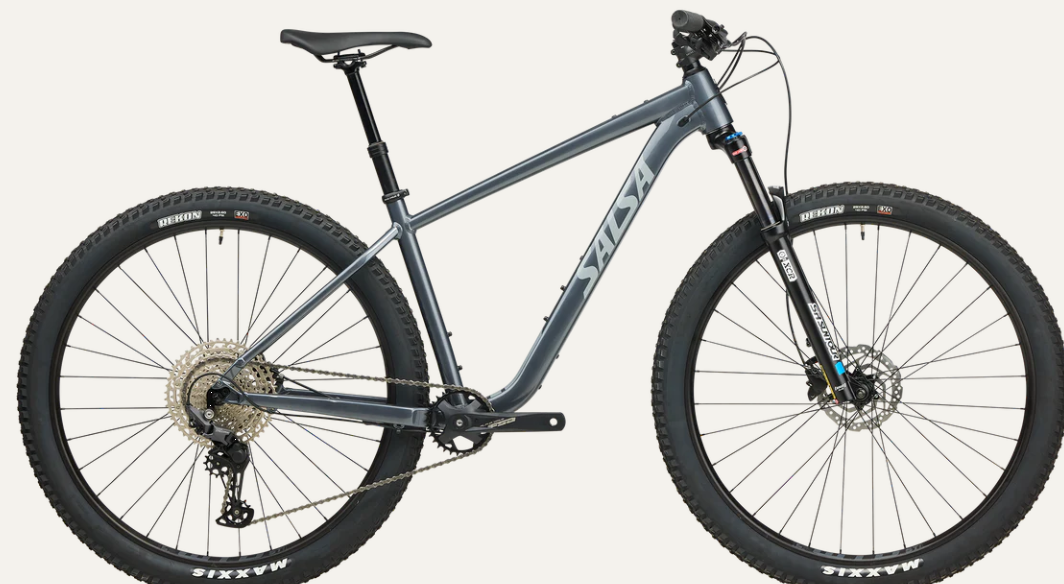

Rangefinder Deore 11 29

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$1,399.00 USD

Color Options

Slate

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Rangefinder, 6061-T6 aluminum, internal cable housing, 10x141mm QR, FS2361 derailleur hanger

Fork

SR Suntour XCR32 Air Boost LOR DS, 120mm travel, 501mm axle-to-crown, 46mm offset, 15x110mm thru-axle

Drivetrain Compatibility

Shimano Deore M5100, 1x11-speed

Dropouts

15x110mm (F, thru-axle), 10x141mm (R, QR)

Crank

FSA Alpha Drive, 30t, FSA 124.5mm bottom bracket

Chain

Shimano HG601

Rear Derailleur

Shimano Deore M5100 SGS

Shifters

Shimano Deore M5100

Cassette

Shimano Deore M5100, 11–51t, 11-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Top tube mount (Salsa EXP-R Series Trillium Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 accessory mount (underside of downtube), stealth dropper post routing

Wheels/Tyres

WTB ST i30 32h 29" rim, Shimano MT400-B 15x110mm hub (F), Shimano MT200-B 10x141mm QR hub (R), Maxxis Rekon 29 x 2.6", EXO, Wire Bead (F/R)

Brakes

Shimano MT200, 74mm post mount, Shimano RT10 Center Lock rotors (160mm)

Brake Levers

Shimano MT200

Handlebar

Salsa Salt Flat 31.8, 750mm (XS–SM); Salsa Rustler 31.8, 800mm (M–XL)

Stem

Salsa Guide 31.8, 60mm

Headset

FSA Orbit NO.57B 1.5 ZS, ZS44 (upper), ZS56 (lower)

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

TranzX YSP18PLQ, 100 x 361 mm (XS–SM), 130 x 425 mm (MD–XL), 30.9mm

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400-B, 15x110mm

Rear Hub

Shimano MT200-B, 10x141mm QR

Rims

WTB ST i30, 32h, 29"

Exterior Features

Top tube mount (Salsa EXP-R Series Trillium Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 accessory mount (underside of downtube), stealth dropper post routing

Weight

30 lb 12 oz (~13.9 kg) for Medium, with tubes, no pedals
