Specification

Details

Model

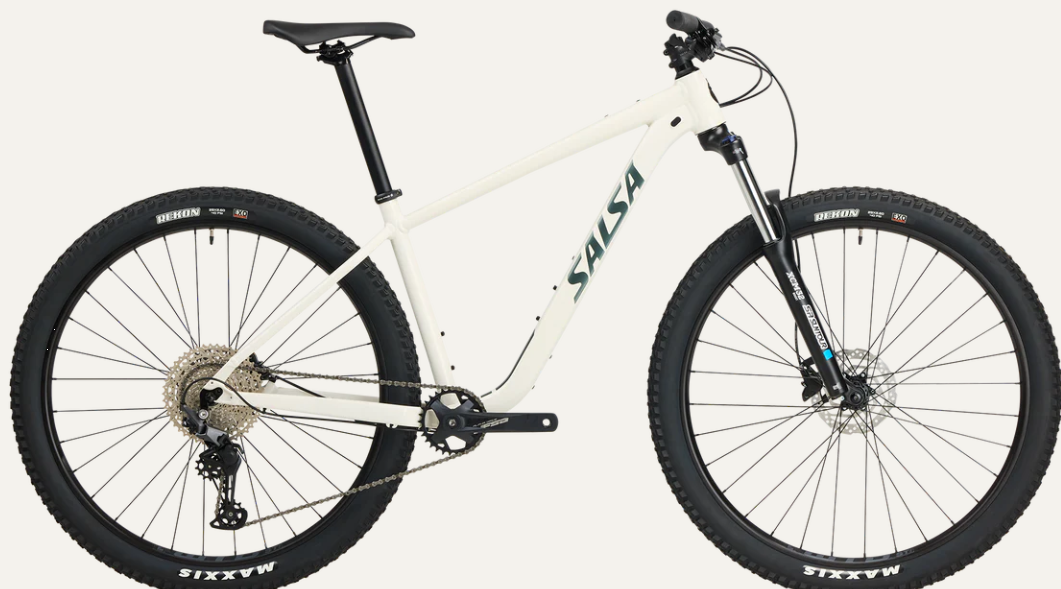

Rangefinder Deore 10 29

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$1,099.00 USD

Color Options

Ceramic White

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Rangefinder, 6061-T6 aluminum, internal cable housing, 10x141mm QR, FS2361 derailleur hanger

Fork

SR Suntour XCM32 Coil Boost NLO DS, 120mm travel, 501mm axle-to-crown, 46mm offset, 15x110mm thru-axle

Drivetrain Compatibility

Shimano Deore M4100, 1x10-speed

Dropouts

15x110mm (F, thru-axle), 10x141mm (R, QR)

Crank

FSA Alpha Drive, 30t, FSA 124.5mm bottom bracket

Chain

Shimano HG54

Rear Derailleur

Shimano Deore M5120 SGS

Shifters

Shimano Deore M4100

Cassette

Shimano Deore M4100, 11–46t, 10-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Top tube mount (Salsa EXP-R Series Trillium Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 accessory mount (underside of downtube)

Wheels/Tyres

WTB ST i30 32h 29" rim, Shimano TC500-B 15x110mm TA hub (F), Shimano MT200-B 10x141mm QR hub (R), Maxxis Rekon 29 x 2.6", EXO, Wire Bead (F/R)

Brakes

Shimano MT200, 74mm post mount, Shimano RT10 Center Lock rotors (160mm)

Brake Levers

Shimano MT200

Handlebar

Salsa Salt Flat 31.8, 750mm (XS–SM); Salsa Rustler 31.8, 800mm (M–XL)

Stem

Salsa Guide 31.8, 60mm, 6-degree

Headset

FSA Orbit NO.57B 1.5 ZS, ZS44 (upper), ZS56 (lower)

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

Salsa Guide 30.9, 0 offset

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano TC500-B, 15x110mm TA

Rear Hub

Shimano MT200-B, 10x141mm QR

Rims

WTB ST i30, 32h, 29"

Exterior Features

Top tube mount (Salsa EXP-R Series Trillium Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 accessory mount (underside of downtube)

Weight

32 lb 8 oz (~14.7 kg) for Medium, with tubes, no pedals
