Specification

Details

Model

Rangefinder Deore 10 27.5+

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$899.00 USD (Sale: $649.99 USD)

Color Options

Silver

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Rangefinder Aluminum, 6061-T6 aluminum, 141x10mm QR, internal dropper post routing

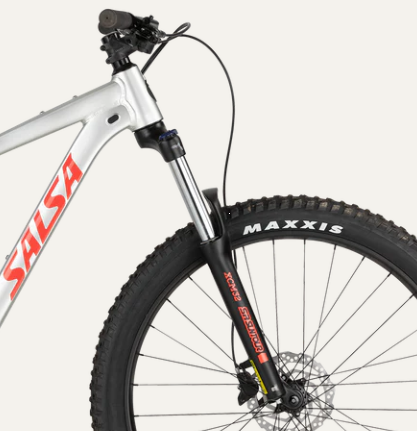

Fork

SR Suntour XCM32 Boost, Coil, NLO, DS, 120mm OR RST Alpha 110-15 Coil MLC, 120mm, 46mm offset, 510mm axle-to-crown

Drivetrain Compatibility

Shimano Deore M4100, 10-speed

Dropouts

15x110mm (F, thru-axle), 141x10mm (R, quick-release)

Crank

FSA Alpha Drive, 30t, FSA 124.5mm bottom bracket

Chain

Shimano HG54

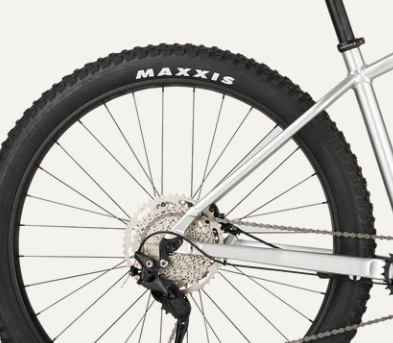

Rear Derailleur

Shimano Deore M5120 SGS

Shifters

Shimano Deore M4100

Cassette

Shimano Deore M4100, 11–46t, 10-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Two bottle mounts, one downtube accessory mount, top tube mounts, rear rack mounts (requires Salsa Post-Lock seatpost collar)

Wheels/Tyres

WTB ST i40 32h 27.5" rim, Shimano MT400 Center Lock 15x110mm TA hub (F), Shimano MT200 Center Lock 10x141mm QR hub (R), Maxxis Rekon 27.5 x 2.8", EXO, Wire Bead (not tubeless compatible) (F, R)

Wheel Size

27.5" front, 27.5" rear (alternate: 29" x 1.9–2.6")

Brakes

Shimano MT200 OR Tektro M520 OR Promax DSK-925, Center Lock, 160mm (F, R)

Brake Levers

Shimano MT200 OR Tektro M520 OR Promax DSK-925

Handlebar

Salsa Salt Flat 31.8, 750mm width XS–SM; Salsa Rustler 31.8, 800mm width M–XL

Stem

Salsa Guide 31.8, 60mm, 6°

Headset

FSA Orbit NO.57B 1.5 ZS

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

Salsa Guide 30.9, 0 offset

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400 Center Lock, 15x110mm TA

Rear Hub

Shimano MT200 Center Lock, 10x141mm QR

Rims

WTB ST i40, 32h, 27.5"

Exterior Features

Top tube bag mounts, rear rack mounts

Weight

33 lbs (14.97 kg) for Medium (with tubes, no pedals)
