Specification

Details

Model

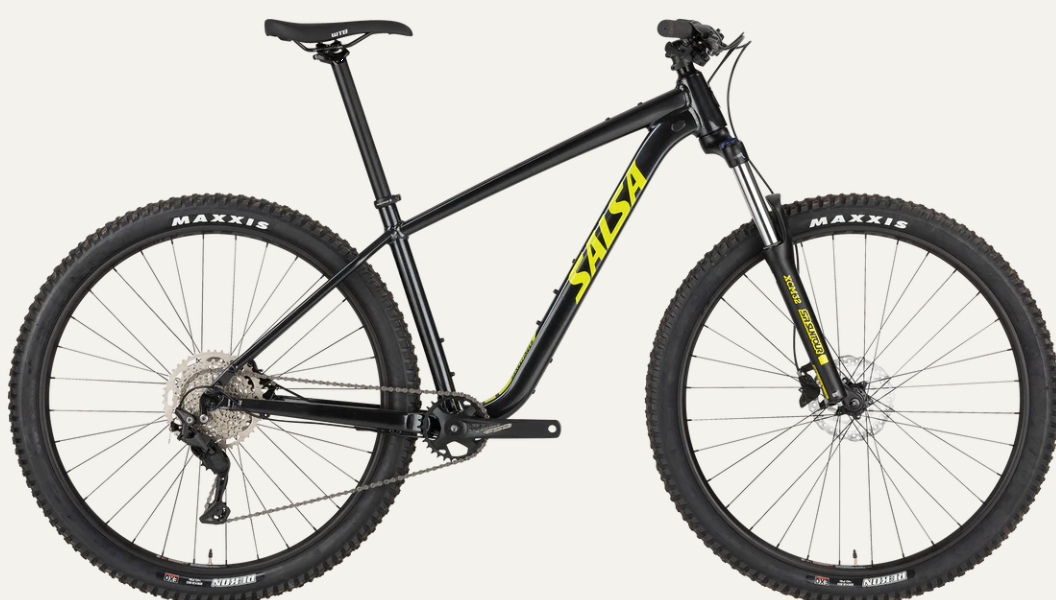

Rangefinder Advent X 29

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$899.00 USD (Sale: $649.99 USD)

Color Options

Black

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Rangefinder Aluminum, 6061-T6 aluminum, 141x10mm QR, internal dropper post routing

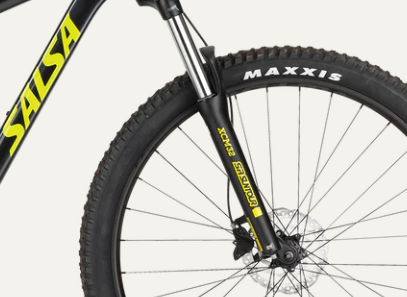

Fork

SR Suntour XCM32 Boost, Coil, NLO, DS, 120mm, 51mm offset, 501mm axle-to-crown

Drivetrain Compatibility

microSHIFT Advent X M6205, 10-speed

Dropouts

15x110mm (F, thru-axle), 141x10mm (R, quick-release)

Crank

FSA Alpha Drive, 30t, FSA 124.5mm bottom bracket

Chain

Shimano HG54

Rear Derailleur

microSHIFT Advent X M6205

Shifters

microSHIFT Advent X M9605

Cassette

microSHIFT Advent X H104, 11–48t, 10-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Two bottle mounts, one downtube accessory mount, top tube mounts, rear rack mounts (requires Salsa Post-Lock seatpost collar)

Wheels/Tyres

WTB ST i30 32h 29" rim, Shimano MT400 Center Lock 15x110mm TA hub (F), Shimano MT200 Center Lock 10x141mm QR hub (R), Maxxis Rekon 29 x 2.6", EXO, Wire Bead (not tubeless compatible) (F, R)

Wheel Size

29" front, 29" rear (alternate: 27.5" x 2.8–3.0")

Brakes

Shimano MT200 OR Tektro M520, Center Lock, 160mm (F, R)

Brake Levers

Shimano MT200 OR Tektro M520

Handlebar

Salsa Salt Flat 31.8, 750mm width XS–SM; Salsa Rustler 31.8, 800mm width M–XL

Stem

Salsa Guide 31.8, 60mm, 6°

Headset

FSA Orbit NO.57B 1.5 ZS

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

Salsa Guide 30.9, 0 offset

Seatpost Clamp

35.0mm

Grips

Salsa File Tread

Front Hub

Shimano MT400 Center Lock, 15x110mm TA

Rear Hub

Shimano MT200 Center Lock, 10x141mm QR

Rims

WTB ST i30, 32h, 29"

Exterior Features

Top tube bag mounts, rear rack mounts

Weight

32 lbs 8 oz (14.74 kg) for Medium (with tubes, no pedals)
