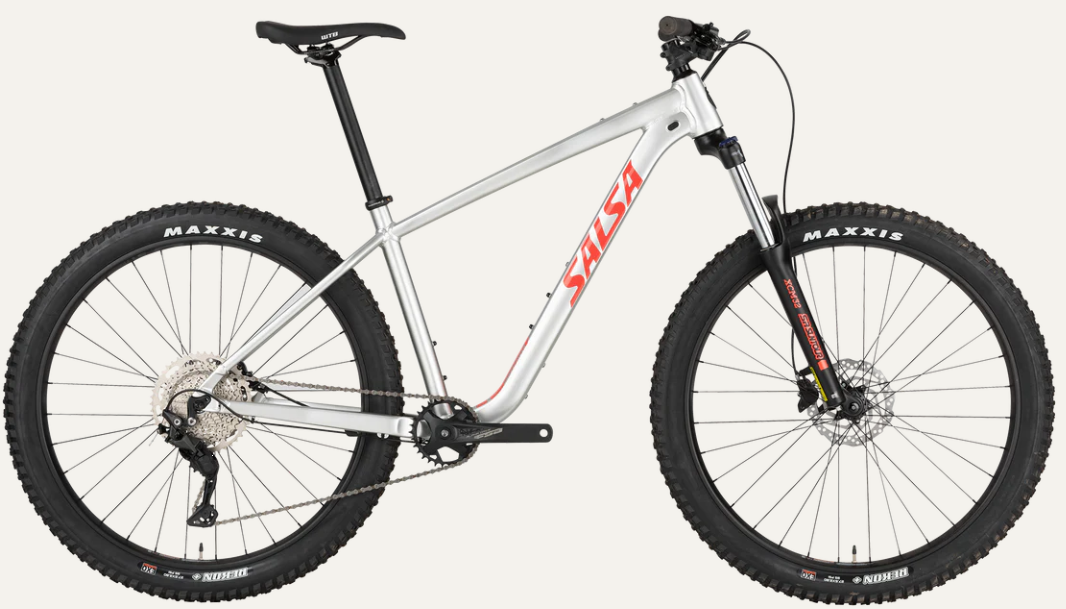

2025 Salsa Rangefinder Advent X 27.5+ – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Rangefinder Advent X 27.5+ |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$649.99 USD (regular $899.00 USD) |
|
Color Options |
Silver |
|
Sizes |
X-Small, Small, Medium, Large, X-Large |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Rangefinder Aluminum, 6061-T6 aluminum, internal cable housing, 10x141mm QR, FS2361 derailleur hanger |
|
Fork |

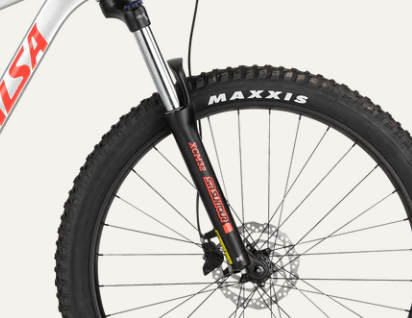

SR Suntour XCM32 Boost, Coil, NLO, DS, 120 mm, 510mm axle-to-crown, 46mm offset, 15x110mm thru-axle |
|
Drivetrain Compatibility |
microSHIFT Advent X, 1x10-speed |
|
Dropouts |
15x110mm (F, thru-axle), 10x141mm (R, QR) |
|
Crank |
FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket |
|
Chain |
Shimano HG54 |
|
Rear Derailleur |
microSHIFT Advent X M6205 |
|
Shifters |
microSHIFT Advent X M9605 |
|
Cassette |
microSHIFT Advent X H104, 11–48t, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Volt Medium, Steel, 142 x 265 mm |
|
Cargo Capacity |
Top tube mount (Salsa EXP Series Direct-Mount Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 downtube accessory mount, rear rack mounts (requires Salsa Post-Lock 35.0mm seatpost collar) |
|
Wheels/Tyres |
WTB ST i40 32h 27.5" rim, Shimano MT400 Center Lock 15x110mm TA hub (F), Shimano MT200 Center Lock 10x141mm QR hub (R), Maxxis Rekon 27.5 x 2.8", EXO, Wire Bead, not tubeless compatible (F/R) |
|
Brakes |
Shimano MT200 -OR- Tektro M520, 74mm post mount, Shimano RT10 Center Lock rotors (160mm) |
|
Brake Levers |
Shimano MT200 -OR- Tektro M520 |
|
Handlebar |
Salsa Salt Flat 31.8, 750mm (XS–SM); Salsa Rustler 31.8, 800mm (M–XL) |
|
Stem |
Salsa Guide 31.8, 60 mm, 6-degree |
|
Headset |
FSA Orbit NO.57B 1.5 ZS, ZS44 (upper), ZS56 (lower) |
|
Saddle |
WTB Volt Medium, Steel, 142 x 265 mm |
|
Seatpost |
Salsa Guide 30.9, 0 offset |
|
Seatpost Clamp |
35.0mm |
|
Grips |
Salsa File Tread |
|
Front Hub |
Shimano MT400 Center Lock, 15x110mm TA |
|
Rear Hub |
Shimano MT200 Center Lock, 10x141mm QR |
|
Rims |
WTB ST i40, 32h, 27.5" |
|
Exterior Features |
Top tube mount (Salsa EXP Series Direct-Mount Top Tube Bag), 2 bottle mounts (inside frame triangle), 1 downtube accessory mount, rear rack mounts (requires Salsa Post-Lock 35.0mm seatpost collar) |
|
Weight |
33 lb (~15.0 kg) for Medium, with tubes, no pedals |
