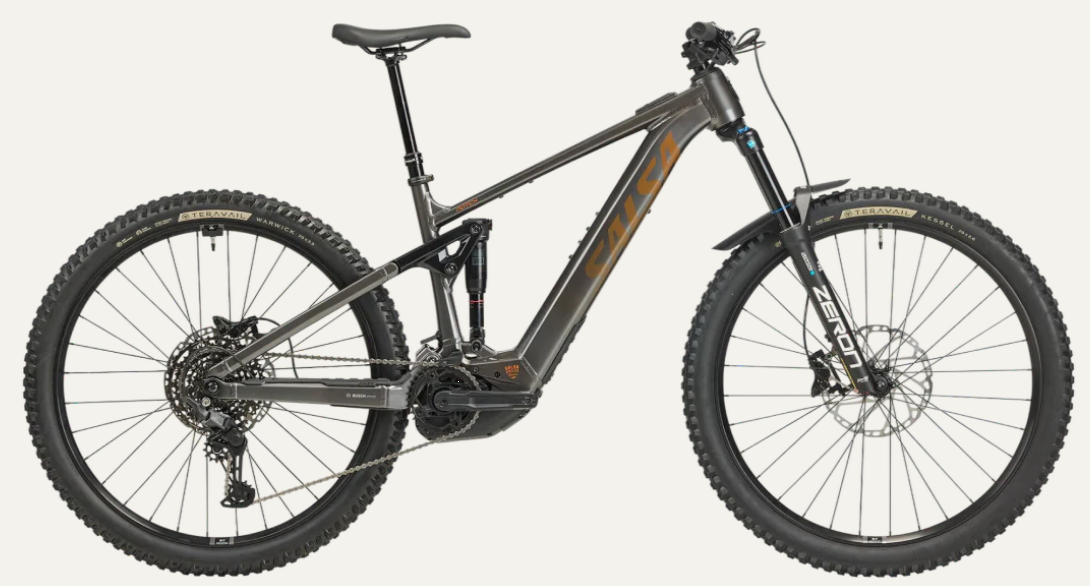

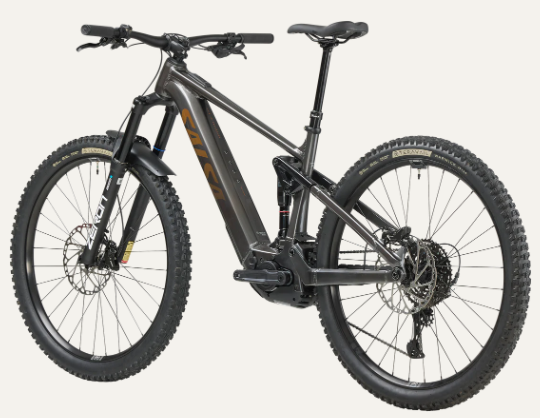

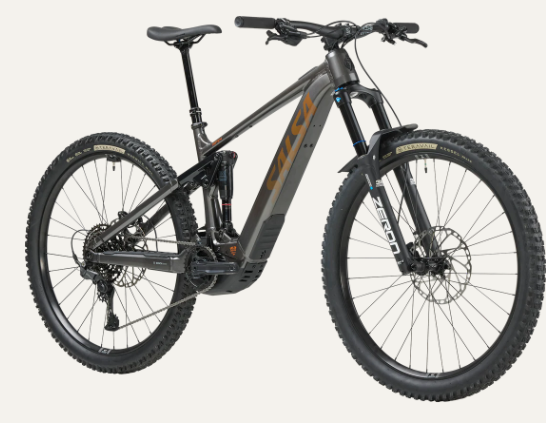

2025 Salsa Notch CUES 10 – EBike & Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Notch CUES 10 |
|
Vehicle Category |
EBike & Mountain Bike |
|
Application |
Enduro eMTB riding |
|
Starting Price (2025) |
$4,999.00 USD (Sale: $2,999.99 USD) |
|
Color Options |
Charcoal Black |
|
Sizes |
Small, Medium, Large, X-Large |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Notch Aluminum, 6061-T6 aluminum, Split Pivot+ suspension, 148x12mm thru-axle, internal routing, dropper post compatible, SRAM UDH |
|

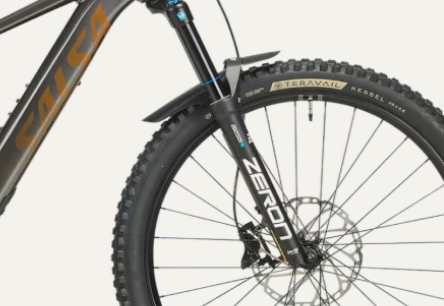

Fork |
SR Suntour ZERON36 Boost EQ, 160mm travel, 44mm offset, 585mm axle-to-crown, 15x110mm thru-axle |
|

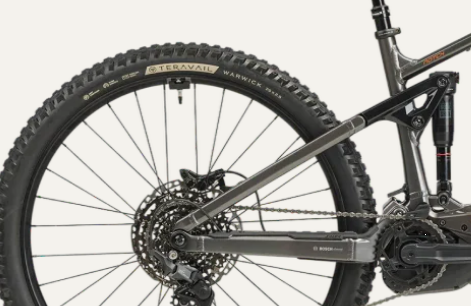

Rear Shock |
RockShox Deluxe Select, 205 x 65mm |
|
Drivetrain Compatibility |
Shimano CUES, 10-speed |
|
Dropouts |
15x110mm (F, SR Suntour AH2 Thru Bolt: 15 x 110mm, TP=M15x1.5, TL=9mm, 158mm overall length), 148x12mm (R, Ø12 x 188mm, TP=1.0, TL=13) |
|
Crank |
FSA CK-762 w/ 55mm CL, 104 BCD spider & MegaTooth 34t steel chainring, Bosch BDU37 bottom bracket, MRP 1x SL TR2 chainguide |
|
Chain |
Shimano LG500 LINKGLIDE |
|
Rear Derailleur |
Shimano U6000 SHADOW RD+ |
|
Shifters |
Shimano U6000-10R, 10-speed |
|
Cassette |
Shimano LINKGLIDE LG400, 11–48t, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Solano, Medium, Fusion Form, steel rail, 255 x 145 mm |
|
Fuel Type |
Electric (Bosch PowerTube 500 lithium ion) |
|
Cargo Capacity |
One full-size bottle mount or Bosch PowerMore 250 range-extender battery, one top tube (underside) accessory mount for spare tube and multi-tool |
|
Wheels/Tyres |
WTB ST i30 Tough, TCS, 32h, 29" rim, Shimano TC500-15-B 15x110mm hub (F), Shimano TC500-MS-B 12x148mm hub (R), Teravail Kessel 29 x 2.6" Ultra Durable casing (F), Teravail Warwick 29 x 2.5" Ultra Durable casing (R), WTB TCS Sealant included (tubes installed) |
|
Wheel Size |
29" front, 29" rear (alternate: 27.5 x 2.6–2.8" rear only in H flip chip setting with 160mm fork) |
|
Brakes |
Shimano MT420, Center Lock, 220mm (F, R) |
|
Brake Levers |
Shimano M4100 |
|
Handlebar |
RaceFace Chester, SM–MD: 780mm x 20mm rise; LG–XL: 780mm x 35mm rise |
|
Stem |
Salsa Guide, 40mm (all sizes) |
|
Headset |
ACROS AZX-721 ZS56/ZS66 for 1.5" tapered steerer |
|
Saddle |
WTB Solano, Medium, Fusion Form, steel rail, 255 x 145 mm |
|
Seatpost |
TranzX YSP18, SM: 150mm travel; MD–LG–XL: 170mm travel |
|
Seatpost Clamp |
35.0mm |
|
Grips |
WTB Wavelength |
|
Front Hub |
Shimano TC500-15-B, 32h, 15x110mm |
|
Rear Hub |
Shimano TC500-MS-B, 32h, 12x148mm |
|
Rims |
WTB ST i30 Tough, TCS, 32h, 29" |
|
Spokes |
2.0 mm straight gauge, black |
|
Exterior Features |
Top tube (underside) accessory mount, molded frame protection |
|
Weight |
57 lbs 4 oz (26.01 kg) for Medium (with tubes, no pedals) |
|
Motor |
Bosch Performance Line CX, BDU37, 85Nm max torque, 340% max assist up to 600 watts |
|
Battery |
Bosch PowerTube 500 lithium ion, 500Wh, 36V, 13.4Ah, removable for service |
|
Controller |
Bosch Mini Remote Bluetooth handlebar controller, top tube System Controller |
|
Charger |
Included, 100% charge: ~4.5 hours |
