Specification

Details

Model

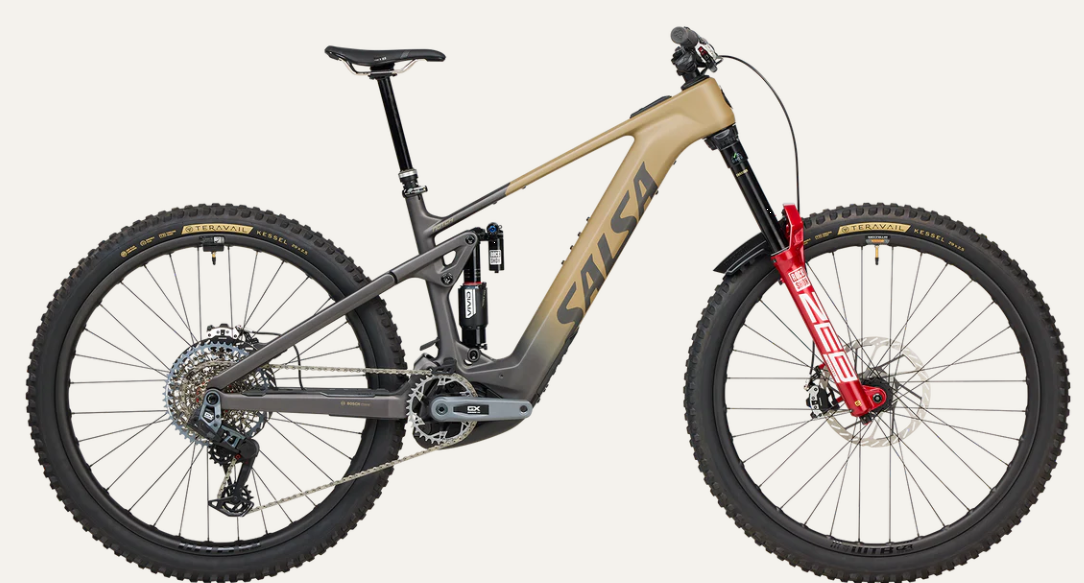

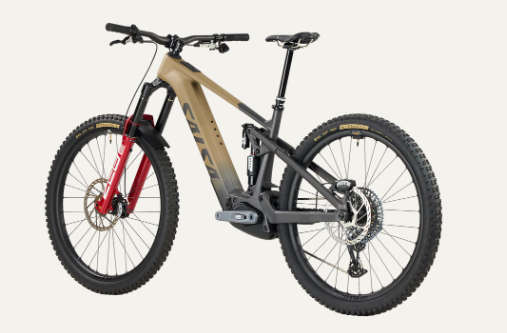

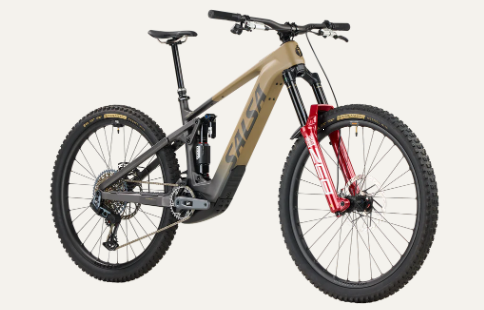

Notch C GX Eagle Transmission

Vehicle Category

EBike

Application

Enduro riding, trail riding

Starting Price (2025)

$8,699.00 USD

Color Options

Black/Walnut

Sizes

Small, Medium, Large, X-Large

Specification

Details

Frame

Notch Carbon, high-modulus carbon fiber, internal routing, 12x148mm, SRAM UDH derailleur hanger, Bosch BDU38 bottom bracket

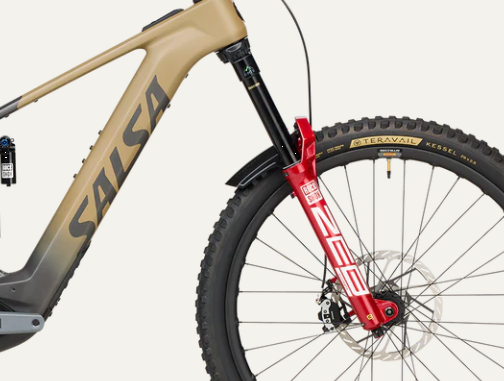

Fork

RockShox ZEB Ultimate, 180mm travel, 44mm offset

Rear Shock

RockShox Vivid Ultimate, 225 x 70mm

Drivetrain Compatibility

SRAM GX Eagle Transmission, 1x12-speed

Dropouts

15x110mm (F, Maxle Stealth, TP=M15x1.5, TL=9mm, 158mm overall), 12x148mm (R, 12 x 188mm, TP=1.0, TL=13)

Crank

SRAM GX Eagle E-MTB ISIS Arms, SRAM XX 34t T-Type Direct Mount Chainring, MRP 1x CS2 32-36t chainguide

Chain

SRAM GX Eagle Transmission Flattop

Rear Derailleur

SRAM GX Eagle Transmission

Shifters

AXS Pod Controller, right, with MatchMaker X Clamp

Cassette

SRAM GX Eagle Transmission, 10–52t, 12-speed

Specification

Details

Seating

WTB Solano, Medium, Steel SL, Fusion Form

Fuel Type

Electric (Bosch PowerTube 625 lithium-ion battery)

Cargo Capacity

Top tube accessory mount (underside, for spare tube, multi-tool, or bottle/range-extender battery), 1 full-size bottle mount, molded frame protection, Flip Chip, Split Pivot+ design

Wheels/Tyres

WTB CZR Carbon i30 rim, 32h, WTB HTZ 15x110mm hub (F), WTB HTZ 12x148mm hub (R), Teravail Kessel 29 x 2.5", Durable Plus casing, WTB TCS Sealant included (F/R), double-butted black spokes

Brakes

SRAM Maven Ultimate Stealth, post-mount, 200–220mm, SRAM HS2 6-bolt rotors (220mm F/R)

Brake Levers

SRAM Maven Ultimate Stealth

Handlebar

Salsa Guide Carbon

Stem

Aluminum CNC, 40mm

Headset

ACROS AZX-721, ZS56/28.6 (upper), ZS66/46 (lower), for 1.8" tapered steerer

Saddle

WTB Solano, Medium, Steel SL, Fusion Form

Seatpost

TranzX REVERSE, SM: 160mm travel, MD: 180mm travel, LG–XL: 210mm travel, 30.9mm

Seatpost Clamp

35.4mm

Grips

WTB Wavelength

Front Hub

WTB HTZ, 15x110mm

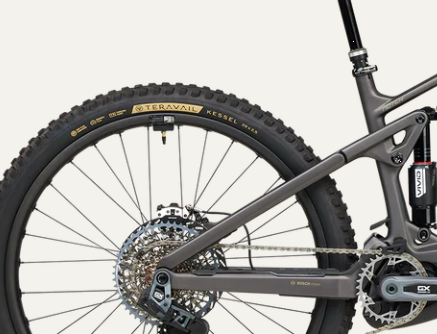

Rear Hub

WTB HTZ, 12x148mm

Rims

WTB CZR Carbon i30, 32h

Spokes

Double-butted, black

Exterior Features

Top tube accessory mount (underside, for spare tube, multi-tool, or bottle/range-extender battery), 1 full-size bottle mount, molded frame protection, Flip Chip, Split Pivot+ design

Weight

49 lb 2 oz (~22.3 kg) for Medium, with tubes, no pedals

Motor

Bosch Performance Line CX, BDU38 Universal Mount, Class 1, 85Nm torque, max assist 340% up to 600 watts, 20mph max assist speed

Battery

Bosch PowerTube 625 lithium-ion, 625Wh, 36V, 16.7Ah, removable for service

Controller

Bosch Mini Remote Bluetooth handlebar controller, System Controller on top tube, 4 assist levels (Eco, Tour+, eMTB, Turbo)

Charger

Included, 50% charge: ~2.1 hours, 100% charge: ~5.4 hours
