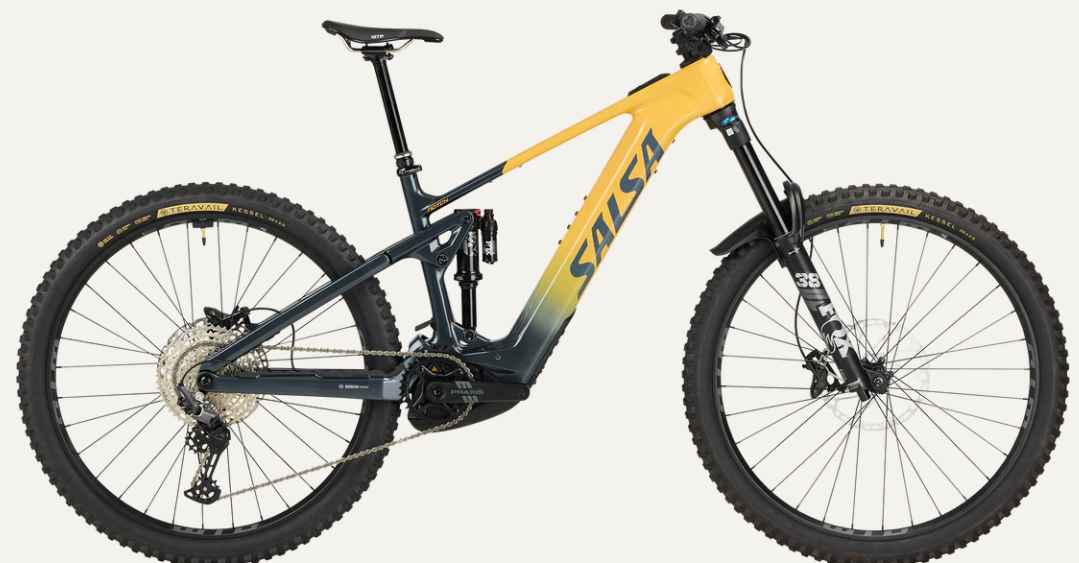

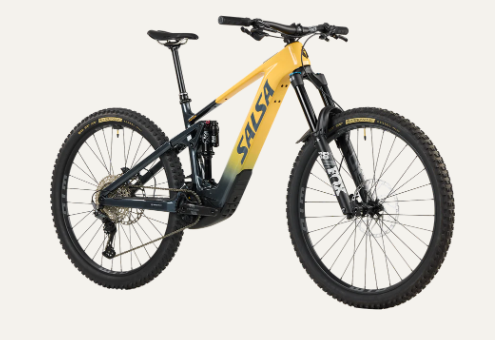

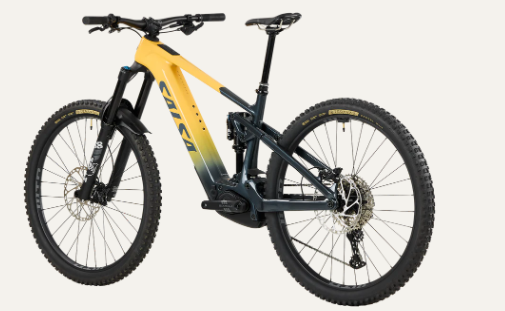

2025 Salsa Notch C Deore 12 – EBike & Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Notch C Deore 12 |
|
Vehicle Category |
EBike & Mountain Bike |
|
Application |
Enduro eMTB riding |
|
Starting Price (2025) |
$6,099.00 USD |
|
Color Options |
Slate/Apricot |
|
Sizes |
Small, Medium, Large, X-Large |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Notch Carbon, carbon fiber, Split Pivot+ suspension, 148x12mm thru-axle, internal routing, dropper post compatible, SRAM UDH |
|
Fork |
Fox 38 Performance Series, 180mm travel, 44mm offset, 596mm axle-to-crown, 15x110mm thru-axle |
|
Rear Shock |
Fox Float X Performance Series, 225 x 70mm |
|
Drivetrain Compatibility |
Shimano Deore, 12-speed |
|
Dropouts |
15x110mm (F, Fox Kabolt X: 15 x 110mm, TP=M14x1.5, TL=12mm, 155mm Overall Length), 148x12mm (R, 12 x 188mm, TP=1.0, TL=13) |
|
Crank |
Praxis TYPE2 ISIS Crank Arms w/ E-Spider, 34t, Bosch BDU38 bottom bracket, MRP 1x CS2 32-36T chainguide |
|
Chain |
Shimano Deore M6100 HYPERGLIDE+ |
|
Rear Derailleur |
Shimano Deore M6100-SGS |
|
Shifters |
Shimano Deore SL-M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10–51t, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Solano, Medium, Steel Rail, Fusion Form, 255 x 145 mm |
|
Fuel Type |
Electric (Bosch PowerTube 625 lithium ion) |
|
Cargo Capacity |
One full-size bottle mount or Bosch PowerMore 250 range-extender battery, one top tube (underside) accessory mount for spare tube and multi-tool |
|
Wheels/Tyres |
WTB KOM Tough i30 TCS, 32h, 29" rim, Shimano TC500-15-B 15x110mm hub (F), Shimano TC500-15-B 12x148mm hub (R), Teravail Kessel 29x2.5", Durable Plus casing, WTB TCS Sealant included (F, R) |
|
Wheel Size |
29" front, 29" rear (alternate: 27.5 x 2.6–2.8" rear only in H flip chip setting with 160mm fork) |
|
Brakes |
Shimano Deore M6120, 4-piston, Center Lock, 220mm (F, R) |
|
Brake Levers |
Shimano Deore M6100 |
|
Handlebar |
Race Face Chester, SM–MD: 780mm x 20mm rise; LG–XL: 780mm x 35mm rise |
|
Stem |
Salsa Guide, 40mm (all sizes) |
|
Headset |
ACROS AZX-720 ZS56/ZS66 for 1.5" tapered steerer |
|
Saddle |
WTB Solano, Medium, Steel Rail, Fusion Form, 255 x 145 mm |
|
Seatpost |
TranzX YSI05 RAD+, SM: 150mm travel; MD–LG: 170mm travel; XL: 200mm travel |
|
Seatpost Clamp |
35.4mm |
|
Grips |
WTB Wavelength |
|
Front Hub |
Shimano TC500-15-B, 15x110mm |
|
Rear Hub |
Shimano TC500-15-B, 12x148mm |
|
Rims |
WTB KOM Tough i30 TCS, 32h, 29" |
|
Spokes |
Butted, 3-cross lacing, black |
|
Weight |
50 lb 8 oz (22.91 kg) for Medium (with tubes, no pedals) |
|
Motor |

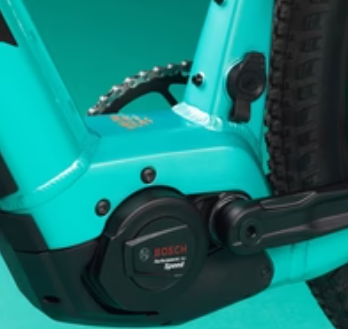

Bosch Performance Line CX, BDU38 Universal Mount, 85Nm max torque, 340% max assist up to 600 watts |
|
Battery |
Bosch PowerTube 625 lithium ion, 625Wh, 36V, 16.7Ah, removable for service |
|
Controller |
Bosch Mini Remote Bluetooth handlebar controller, top tube System Controller |
|
Charger |
Included, 50% charge: ~2.1 hours, 100% charge: ~5.4 hours |
