Specification

Details

Model

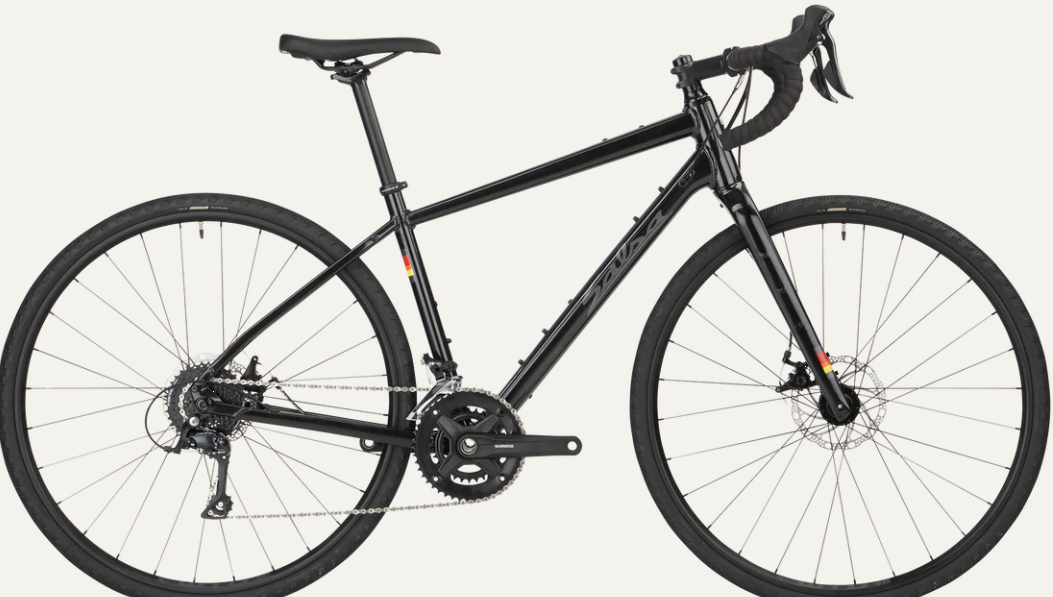

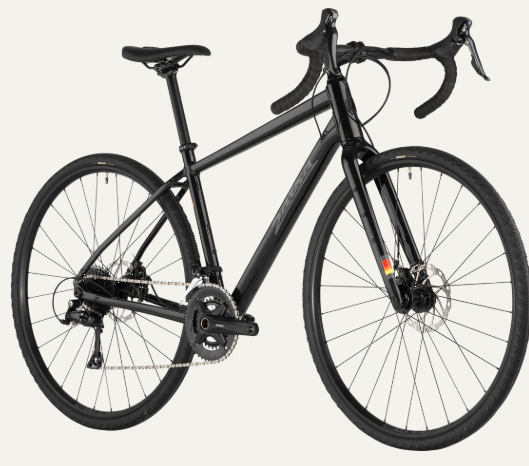

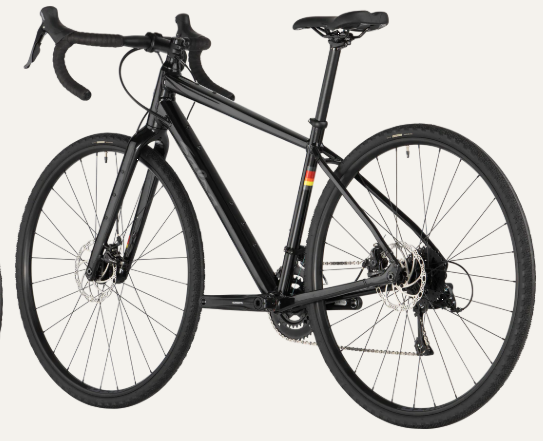

Journeyer Sora 700

Vehicle Category

Gravel Bike

Application

Gravel riding, bikepacking, commuting

Starting Price (2025)

$1,299.00 USD (Sale price: $1,099.99 USD)

Color Options

Black

Sizes

49cm, 51cm, 53cm, 55cm, 57cm, 60cm

Specification

Details

Frame

Journeyer Drop-Bar Thru-Axle, 6061-T6 aluminum, internal cable routing, 142mm spacing, SRAM UDH derailleur hanger

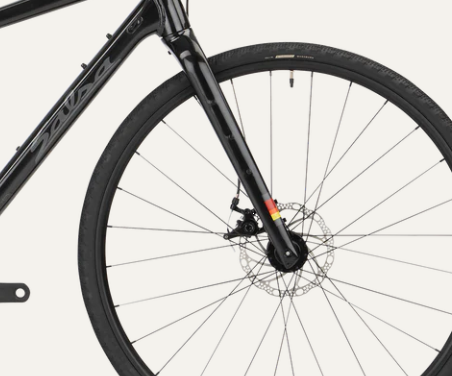

Fork

Waxwing, carbon with aluminum steerer, 12x100mm thru-axle, 50mm offset, 405mm axle-to-crown

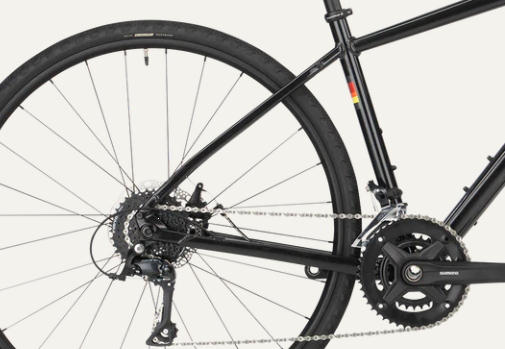

Drivetrain Compatibility

Shimano Sora R3000, 2x9-speed

Dropouts

12x100mm (F, M12xTP1.5x120mm thru-axle), 12x142mm (R, M12x169mm, TP=1.0, TL=14mm, SRAM UDH)

Crank

Shimano MT210, 46/30t

Chain

KMC X9

Rear Derailleur

Shimano Sora R3000, Medium Cage

Front Derailleur

Shimano Sora R3000

Shifters

Shimano Sora R3000

Cassette

Shimano HG200, 11–34t, 9-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Top tube mount, downtube mount (49cm: one; 51–56cm: two; 57–60cm: three), front and rear rack mounts, one three-pack mount per fork leg

Wheels/Tyres

WTB ST i23 700c, 28h, WTB Serra 12x100mm hub (F), WTB Serra HG10 12x142mm hub (R), Teravail Washburn 700c x 38mm, 30 tpi

Wheel Size

700c front, 700c rear (alternate: 650b)

Brakes

Tektro MD-C550, flat-mount, 160mm rotors (F, R)

Brake Levers

Shimano Sora R3000

Handlebar

Salsa Cowbell 3, 31.8

Stem

Salsa Guide 31.8, 6-degree

Headset

FSA NO.42 ACB IS-2, IS41 upper, IS52 lower

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

Salsa Guide, 27.2 x 350 mm

Seatpost Clamp

32.0mm

Grips

Black Cork

Front Hub

WTB Serra, 12x100mm, 28h

Rear Hub

WTB Serra HG10, 12x142mm, 28h

Rims

WTB ST i23, 700c, 28h

Exterior Features

Front and rear fender mounts, front and rear rack mounts, top tube mount, downtube mount, one three-pack mount per fork leg

Weight

24 lb (10.89 kg) for 56cm (with pedals)
