Specification

Details

Model

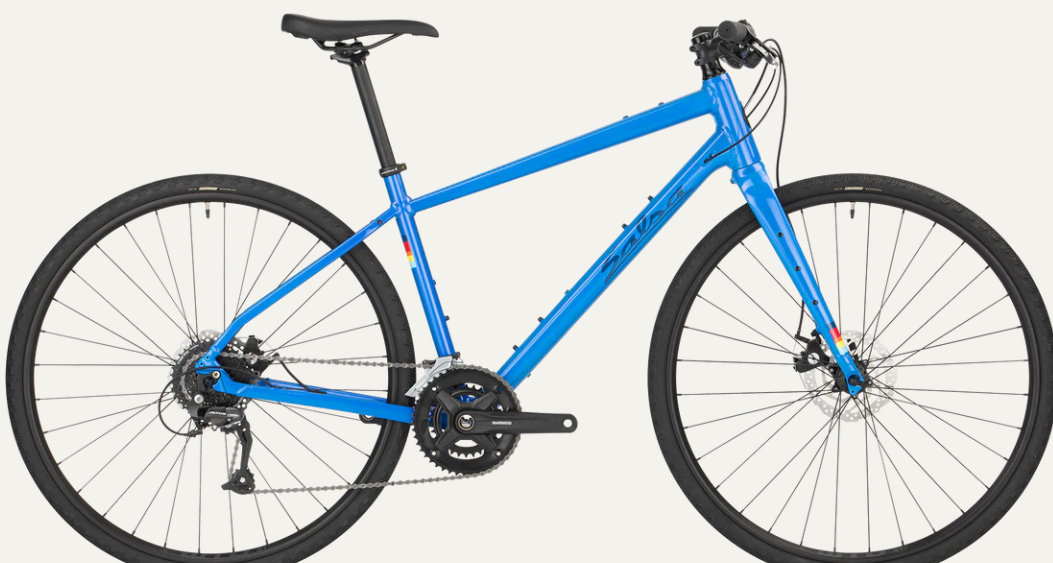

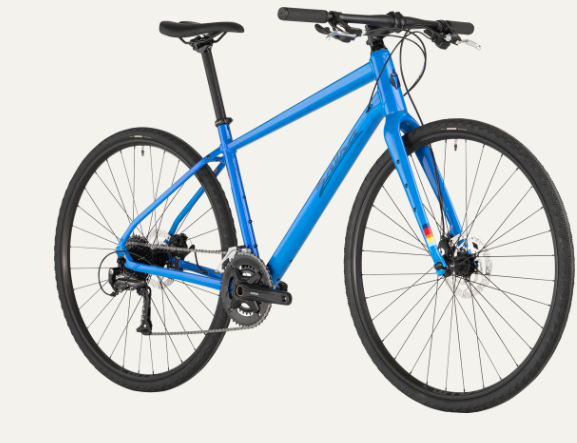

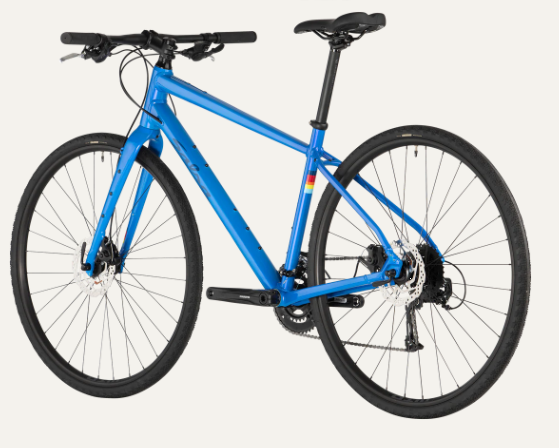

Journeyer Flat Bar Deore 700c

Vehicle Category

Gravel Bike

Application

Gravel rides, bikepacking, versatile errands

Starting Price (2025)

$1,299.00 USD

Color Options

Ash

Sizes

X-Small, Small, Medium, Large, X-Large

Specification

Details

Frame

Journeyer Flat-Bar Quick-Release, 6061-T6 aluminum, internal cable routing, 135mm spacing, Salsa 959 derailleur hanger

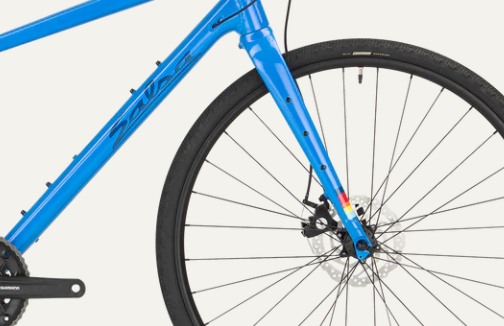

Fork

Fantail Deluxe, aluminum, 12x100mm spacing, 50mm offset, 405mm axle-to-crown

Drivetrain Compatibility

Shimano Deore M5120, 10/11-speed

Dropouts

12x100mm (F, M12xTP1.5x120mm thru-axle), 10x135mm (R, quick-release, Salsa 959 derailleur hanger)

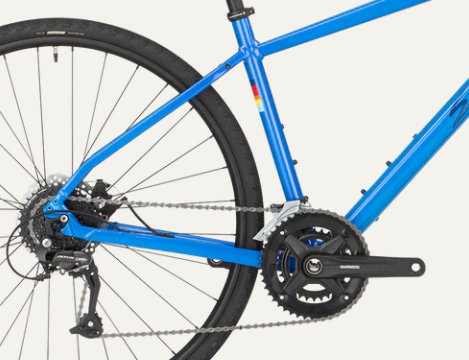

Crank

Omega MegaExo, 40t, FSA Road MegaExo bottom bracket

Chain

Shimano HG54

Rear Derailleur

Shimano Deore M5120 SGS

Shifters

Shimano Deore M4100

Cassette

Shimano Deore M4100, 11–46t, 10-speed

Specification

Details

Seating

WTB Volt Medium, Steel, 142 x 265 mm

Cargo Capacity

Top tube mount, downtube mount (XS and SM: one; MD, LG, XL: one on downtube + one on seat tube), front and rear rack mounts, one three-pack mount per fork leg

Wheels/Tyres

WTB ST i23 700c, 28h, WTB Serra 12x100mm TA hub (F), WTB Serra 10x135mm QR hub (R), Teravail Washburn 700c x 38mm or 45mm, 30 tpi, Wire Bead

Wheel Size

700c front, 700c rear (alternate: 650b)

Brakes

Tektro HD-R280, flat-mount, 160mm rotors (F, R)

Brake Levers

Tektro HD-R280

Handlebar

Salsa Salt Flat 31.8, 700mm

Stem

Salsa Guide 31.8, 6-degree

Headset

FSA NO.42 ACB IS-2, IS41 upper, IS52 lower

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

Promax SP-2016, 27.2x350mm, 12mm offset

Seatpost Clamp

32.0mm

Grips

Salsa File Tread

Front Hub

WTB Serra, 12x100mm TA, 28h

Rear Hub

WTB Serra, 10x135mm QR, 28h

Rims

WTB ST i23, 700c, 28h

Exterior Features

Front and rear fender mounts, front and rear rack mounts, top tube mount, downtube mount, one three-pack mount per fork leg

Weight

25 lbs (11.34 kg) for Medium (with pedals)
