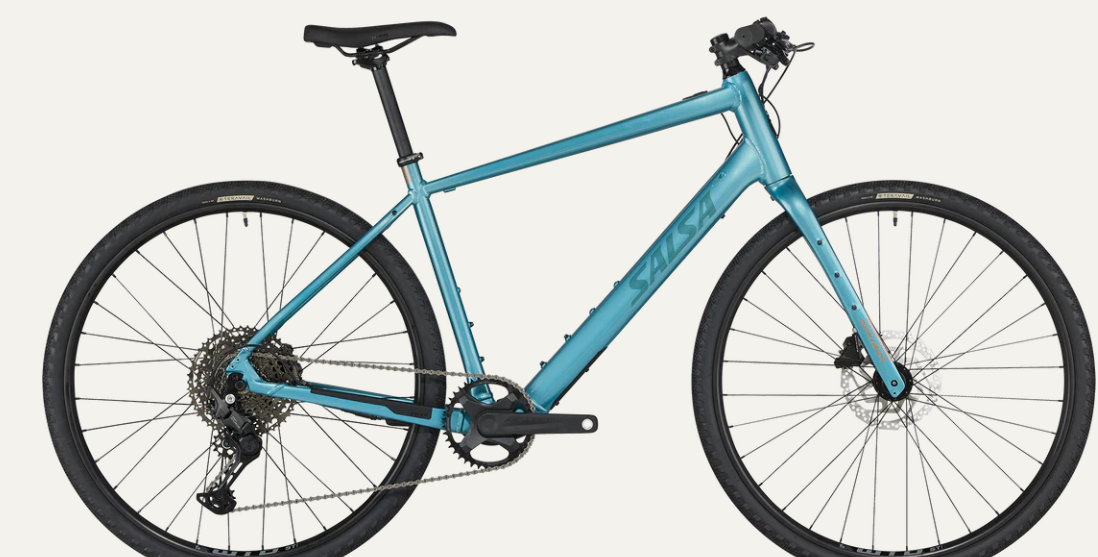

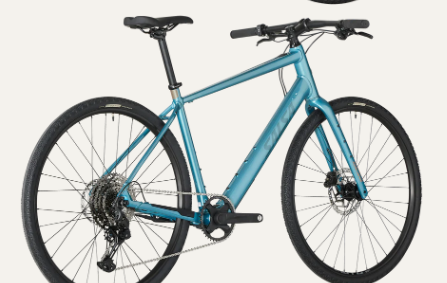

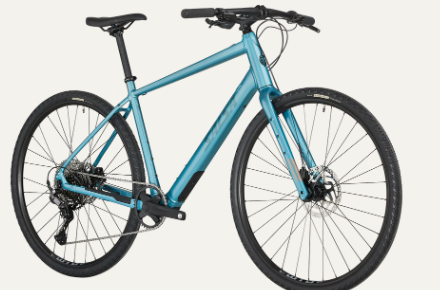

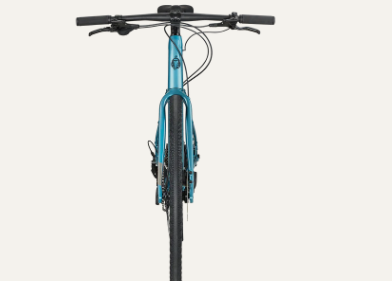

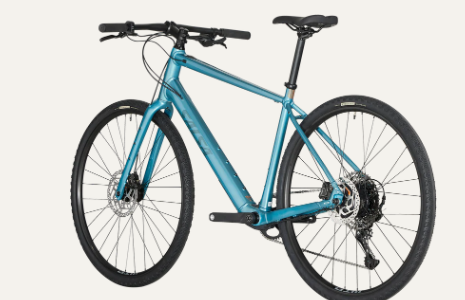

2025 Salsa Confluence Flat Bar CUES 11 – EBike
Specifications
|
Specification |
Details |
|
Model |
Confluence Flat Bar CUES 11 |
|
Vehicle Category |
EBike |
|
Application |
Gravel riding with electric assist |
|
Starting Price (2025) |
$3,199.00 USD |
|
Color Options |
Dark Cyan |
|
Sizes |
X-Small, Small, Medium, Large, X-Large |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Confluence, 6061-T6 aluminum, internal cable routing, 136mm spacing, 10x1mm threaded proprietary derailleur hanger |
|
Fork |
Confluence Carbon Deluxe, 12x100mm spacing, 50mm offset, 402mm axle-to-crown |
|
Drivetrain Compatibility |
Shimano CUES U6000, 11-speed |
|
Dropouts |
12x100mm (F, M12xTP1.5x120mm), 136mm (R, 10x1mm threaded, proprietary derailleur hanger) |
|
Crank |
FSA Omega Megaexo, 40t |
|
Chain |
Shimano LG500 |
|
Rear Derailleur |
Shimano CUES U6000 |
|
Shifters |
Shimano CUES U6000-11R |
|
Cassette |
Shimano CUES, 11-speed, 11–50t |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Volt |
|
Fuel Type |
Electric (MAHLE 250Wh) |
|
Cargo Capacity |
Two bottle mounts, front and rear rack mounts, two sets of three-pack mounts on fork |
|
Wheels/Tyres |
WTB ST i23, 32h, WTB Serra 12x100mm hub (F), MAHLE X35+ hub (R), straight gauge black spokes, Teravail Washburn 700c x 42mm, Durable casing, wire bead |
|
Wheel Size |
700c front, 700c rear |
|
Brakes |
Shimano UR300, flat-mount, 180mm rotor (F), 160mm rotor (R) |
|
Brake Levers |
Shimano MT201 |
|
Handlebar |
Salsa Salt Flat |
|
Stem |
Salsa Guide |
|
Headset |
FSA, IS41 upper, IS52 lower |
|
Saddle |
WTB Volt |
|
Seatpost |
Promax SP-2016, 27.2mm |
|
Seatpost Clamp |
32.0mm |
|
Grips |
Velo VLG-311D2 |
|
Front Hub |
WTB Serra, 12x100mm, 32h |
|
Rear Hub |
MAHLE X35+, 136mm |
|
Rims |
WTB ST i23, 32h |
|
Spokes |
Straight gauge, black |
|
Exterior Features |
Front and rear fender mounts, front and rear rack mounts, two bottle mounts, two sets of three-pack mounts on fork |
|
Weight |
33 lb (14.97 kg) for Large |
|
Motor |
MAHLE X35+ hub-drive, 40Nm torque, Class 1, 20 mph (32 kph) max assist speed, 3 assist levels |
|
Battery |
MAHLE 250Wh, Li-ion, removable for service, up to 458Wh with MAHLE Range Extender (sold separately) |
|
Controller |
MAHLE iWoc One, top-tube mounted, 3 assist levels |
|
Charger |
Included, 3 hours estimated charge time |
