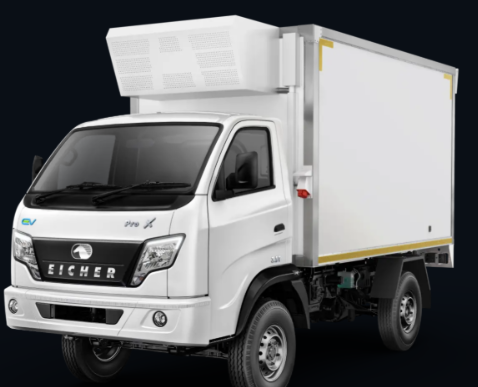

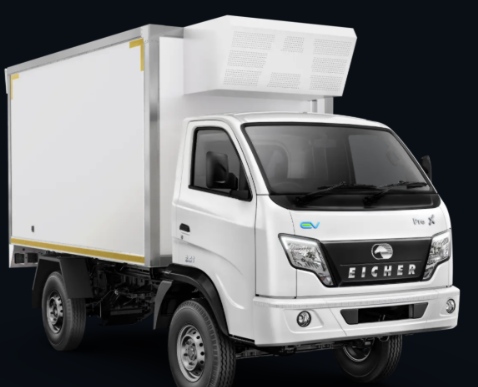

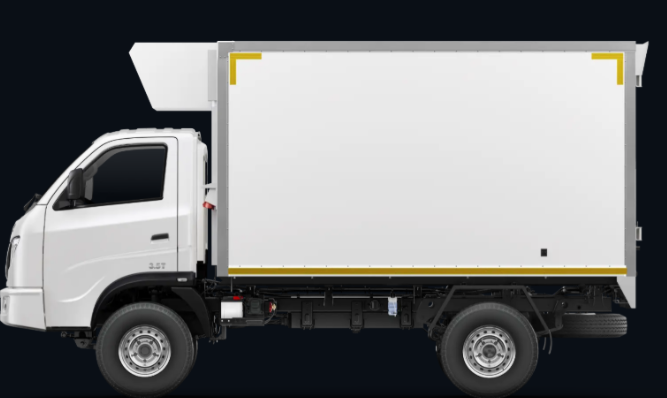

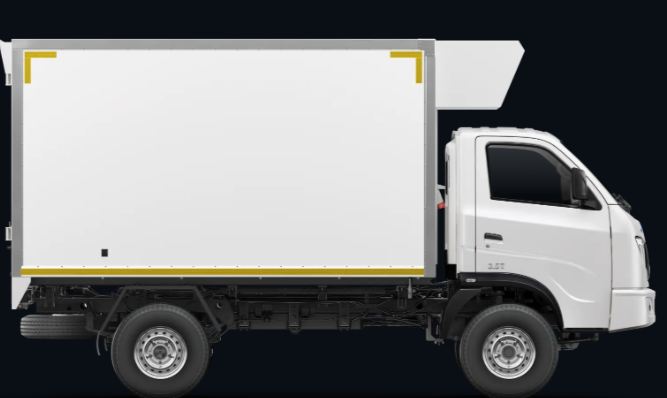

Eicher Pro X Reefer 3.5T Electric Medium-Duty Truck
Specifications
|
Specification |
Details |
|
Model |
Pro X Reefer 3.5T |
|
GVW |
3490 kg |
|
Payload |
555 kg |
|
Deck Length |
3300 mm |
|
Overall Dimensions |
5090 mm x 1770 mm x 2700 mm |
|
Body Type |
Reefer |
|
Battery |
32 kWh LFP |
|
Peak Power |
80 kW |
|
Peak Torque |
300 Nm |
|
Max Speed |
80 kmph |
|
Certified Range |
220 km |
|
Gradeability |
30% |
|
Fuel Type |
Electric |
|
Vehicle Warranty |
3 Years/150,000 km |
|
Battery Warranty |
5 Years/150,000 km |
|
Application |
medium-duty |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
2730 mm |
|
Turning Circle Radius |
5.4 m |
|
Ground Clearance |
220 mm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front: Parabolic, Rear: Semi Elliptic |
|
Brakes |
Front: Disc, Rear: Drum |
|
Steering |
Electric Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre |
7R15 |
Cabin Design
|
Feature |
Details |
|
Safety Standards |
Indian (AIS 29-02) & European (ECR 29-02) |
|
Bumper |
Metallic Bumper |
|
Seating |
D+2 with Flat and Connected Seats |
|
Cabin |
Walkthrough Cabin |
Digital Solutions
|
Feature |
Details |
|
FOTA Telematics |
T6 |
|
Music System |
T6 |
|
Fog Lamps |
T6 |
|
Co Driver Sunvisor |
T6 |
|
Remote Immobilizer |
T6 |
|
Reefer Temperature Monitoring |
T6 |
Technology
|
Feature |
Details |
|
Hill Hold Assist |
Prevents vehicle rollback on slopes by holding brakes temporarily |
|
Drive Modes |
Shifts automatically to Eco, Power, and Regen |
|
Regenerative Braking |
Converts braking energy into battery charge, enhancing efficiency and range |
Charging
|
Feature |
Details |
|
AC Charger |
Type 2 |
|
DC Charger |
CCS2 |
