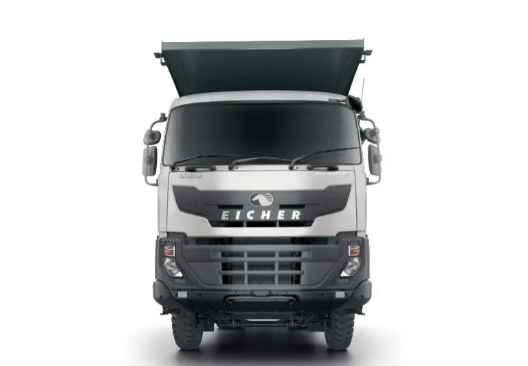

Eicher Pro 8028XC Diesel Heavy-Duty Tipper
Specifications
|
Specification |
Details |
|
Model |
Pro 8028XC |
|
GVW |
28000 kg |
|
Body Variants |
14 Cum (Rock Body) / 16 Cum (Box Body) / 20 Cum (Box Body) |
|
Engine Model |
VEDX8, BS-VI |
|
Max Power |
221 kW @ 2200 rpm |
|
Max Torque |
1200 Nm @ 1200-1600 rpm |
|
Emission |
BS-VI |
|
Fuel Type |
Diesel |
|
Fuel Tank |
315 litre |
|
DEF Tank |
50 litre |
|
Electricals & Battery |
24V; 120Ah |
|
Gradeability |
68% - Crawler Gear |
|
Application |
heavy-duty |

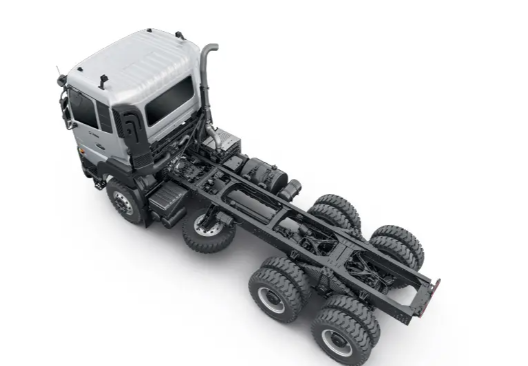

Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
4585 mm |
|
Minimum Ground Clearance |
255 mm |
|
Turning Circle Diameter |
16.3 m |
|
Gearbox |
ET140S9 - 1C + 8F + 1R |
|
Clutch |
430 mm, Pull Type, Single Dry Plate |
|
Front Axle |
Heavy-duty forged I-beam, Reverse Elliot type axle with stabilizer bar |
|
Rear Axle |
Heavy Duty Single Reduction Tandem Axle |
|
Rear Axle Ratio |
5.29 |
|
Differential Lock |
Inter-axle |
|
Chassis Dimensions |
300 x 90 x 8 mm with 5mm Full length inner liner |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Bogie |
|
Service Brake |
S-Cam Dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Steering |
Tilt and Telescopic Power steering |
Wheels & Tyres
| Specification | Details |
|
Wheel Rims |
7.5 x 20 |
|
Tyres |
11 x 20 (Nylon, Mining Lug) |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
M Booster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
My Eicher |
|

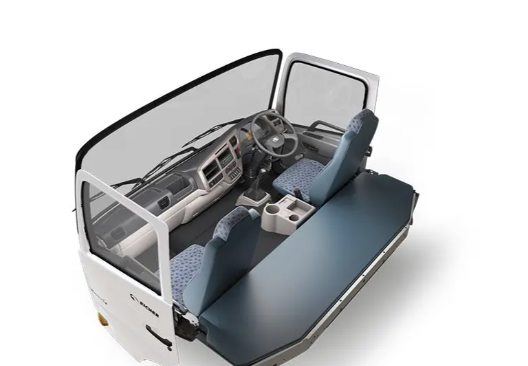

Feature: Cabin |
AC Sleeper Cabin |
