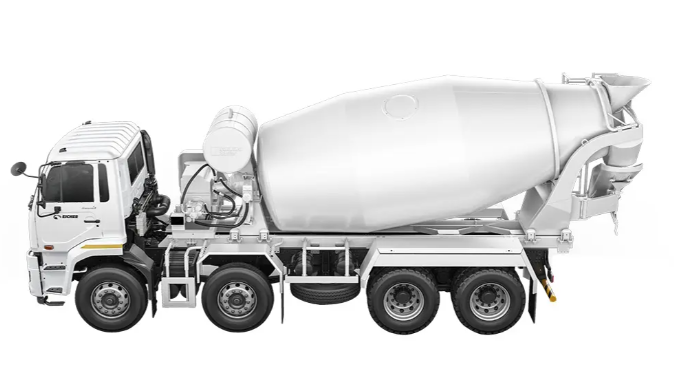

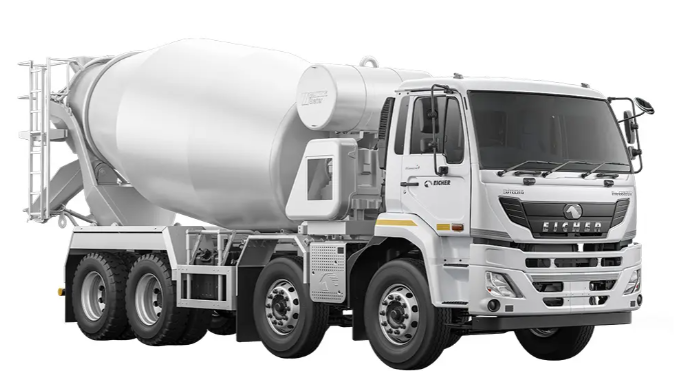

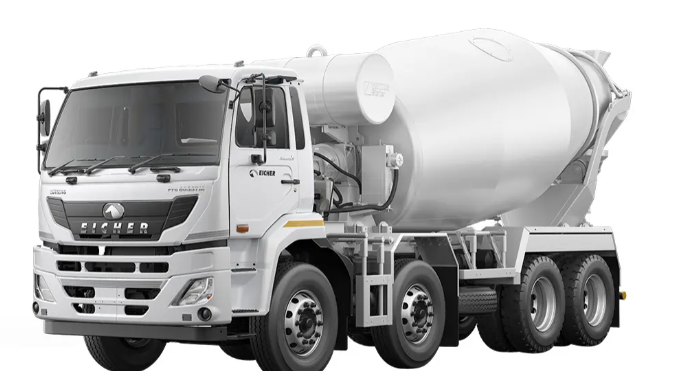

Eicher Pro 6035TM Diesel Heavy-Duty Transit Mixer
Specifications
|
Specification |
Details |
|
Model |
Pro 6035TM |
|
GVW |
35000 kg |
|
Drum Size |
9 & 10 Cum TM Drum |
|
Engine Model |
VEDX8 BS-VI |
|
Max Power |
194 kW @ 2200 rpm |
|
Max Torque |
1000 Nm @ 1000-1700 rpm |
|
Emission |
BS-VI |
|
Fuel Type |
Diesel |
|
Fuel Tank |
220 litre |
|
DEF Tank |
33 litre |
|
Battery |
24V; 120Ah |
|
Gradeability |
39% |
|
Application |
heavy-duty |

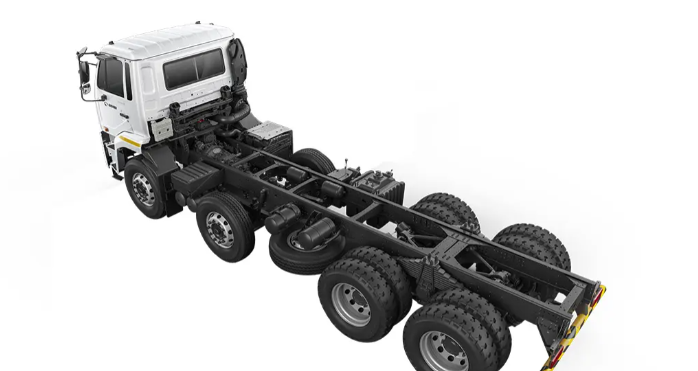

Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
5285 mm |
|
Turning Circle Diameter |
18.6 m |
|
Ground Clearance |
252 mm |
|
Gearbox |
ET140 S9, 8F+1C+1R |
|
Clutch |
430 mm, pull type, Single dry plate |
|
Front Axle |
Forged reverse elliot type |
|
Rear Axle |
Single reduction tandem axle with interaxle lock & anti-roll bar |
|
Rear Axle Ratio |
5.29 |
|
Differential Lock |
Inter-axle |
|
Chassis Dimensions |
300x90x7 mm with 5mm full length inner liner |
|
Drive |
Slave Engine |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Bogie Suspension |
|
Service Brake |
S-Cam dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Steering |
Tilt & telescopic power steering |
Wheels & Tyres
|
Specification |
Details |
|
Wheel Rims |
7.5x20 |
|
Tyres |
11x20 (Nylon) |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
My Eicher |
|
Feature: Cabin |
HVAC day cabin |
