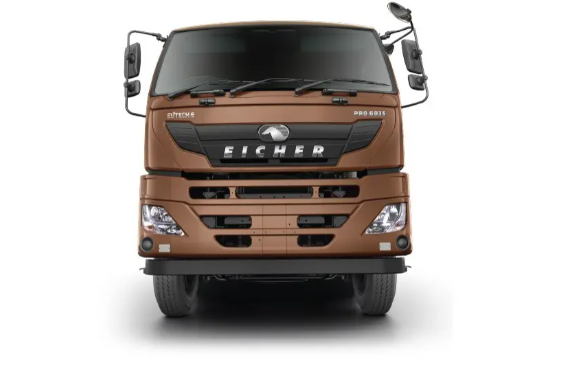

Eicher Pro 6035 Diesel Heavy-Duty Truck
Specifications
|
Specification |
Details |
|
Model |
Pro 6035 |
|
GVW |
35000 kg |
|
Engine Model |
VEDX5, 4 Cylinder - BSVI |
|
Max Power |
176.5 kW @ 2200 rpm |
|
Max Torque |
900 Nm @ 1200-1600 rpm |
|
Emission |
BSVI |
|
Fuel Type |
Diesel |
|
Fuel Tank |
350 litre |
|
DEF Tank |
50 litre |
|
Battery |
24V |
|
Gradeability |
18% |
|
Application |
heavy-duty |

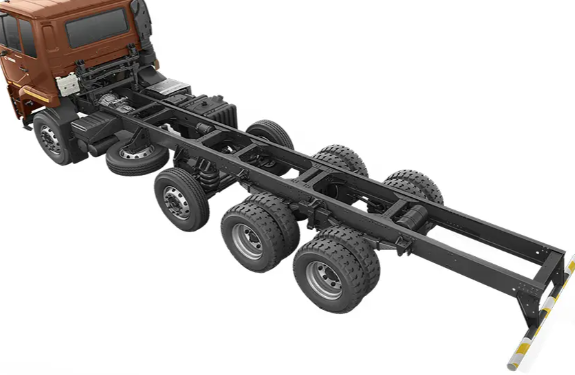

Frame & Drivetrain
|
Specification |
Details |
|
Gearbox |
ET90S6, Manual |
|
Clutch |
395 mm |
|
Rear Axle |
Heavy Duty fully floating single reduction, 458 mm drive head |
|
FDR |
5.28 |
|
Chassis Dimensions |
300X76X6 mm |
|
Wheelbase |
5800 mm / 6800 mm |
|
Load Body Span |
7917 mm (CBC) / 7946 mm (HSD) / 7851 mm (FSD) / 8822 mm (CBC) / 8866 mm (HSD) / 9422 mm (CBC) |
|
Ground Clearance |
235 mm |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Semi elliptic Slipper |
|
Brakes |
Dual circuit full air ‘S’ Cam with ABS |
|
Steering |
Tilt and telescopic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 295/90R20; Rear: 10R20 |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|

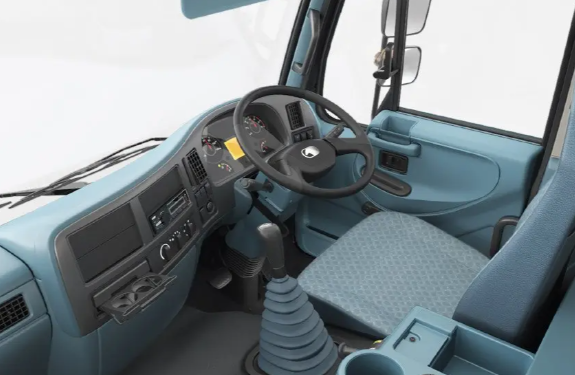

Feature: Cabin |
Sleeper Cabin |
