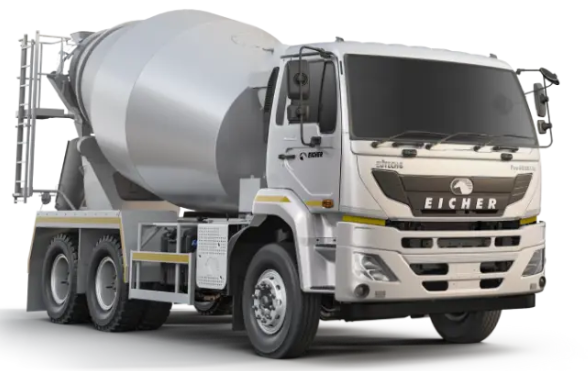

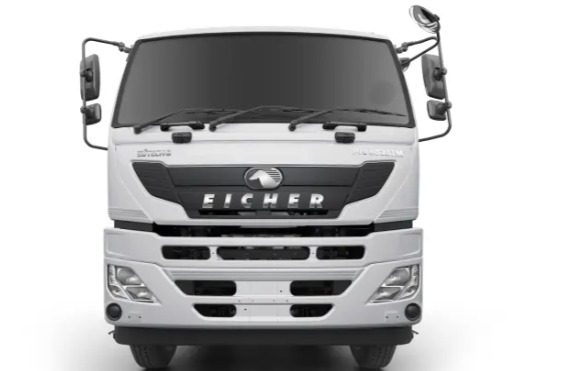

Eicher Pro 6028TM 179kW Diesel Heavy-Duty Transit Mixer
Specifications
|
Specification |
Details |
|
Model |
Pro 6028TM 179kW |
|
GVW |
28000 kg |
|
Variants |
CBC/7CuM SLV/8CuM EPTO |
|
Engine Model |
VEDX5, 4 Cylinder, BSVI |
|
Max Power |
179 kW @ 2200 rpm |
|
Max Torque |
900 Nm @ 1200-1600 rpm |
|
Emission |
BSVI |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
220 litre |
|
DEF Tank |
33 litre |
|
Battery |
24V |
|
Warranty |
2 Years, 4000 Hours |
|
Application |
heavy-duty |

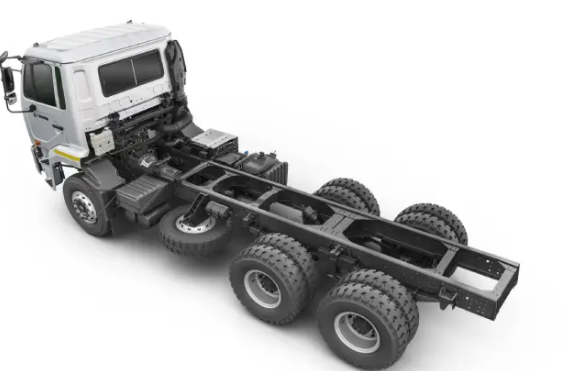

Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
4000 mm / 4285 mm |
|
Gearbox |
ET 120S9 - 9 Speed (Manual) |
|
Clutch |
430 mm / Dry Single Plate |
|
Rear Axle |
Single reduction tandem with differential lock |
|
FDR |
5.29 |
|
Chassis Dimensions |
285 x 76 x 7 mm (Bell Crank), 300 x 76 x 7 mm (Bogie) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Semi Elliptical (Bell Crank), Bogie |
|
Brakes |
S Cam dual line with ABS |
|
Steering |
Tilt and telescopic Hydraulic power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/95D20 |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
My Eicher |
|
Feature: Cabin |
Day cabin with HVAC |
